COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-9
1. Unplug dishwasher or disconnect power.
2. Remove the outer panel from the door.
3. Remove - 6 - ¼” hex head screws securing the dispenser to
the door, see gure 1.
4. Disconnect switch wires.
5. Remove dispenser assembly and bracket, see gure 2.

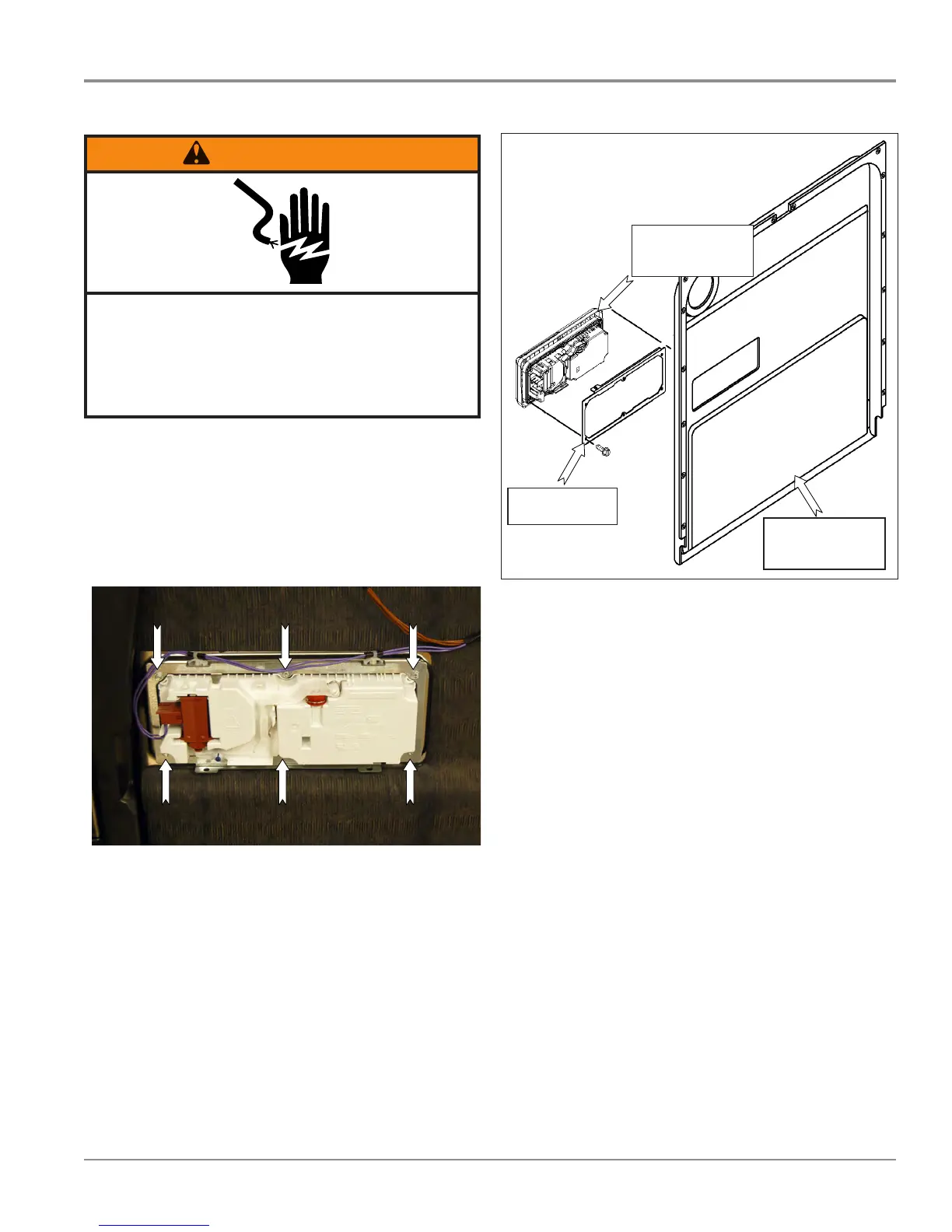

Figure 1
Figure 2
Removing Dispenser Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Bracket
Dispenser
Assembly
Inner
Door Panel
