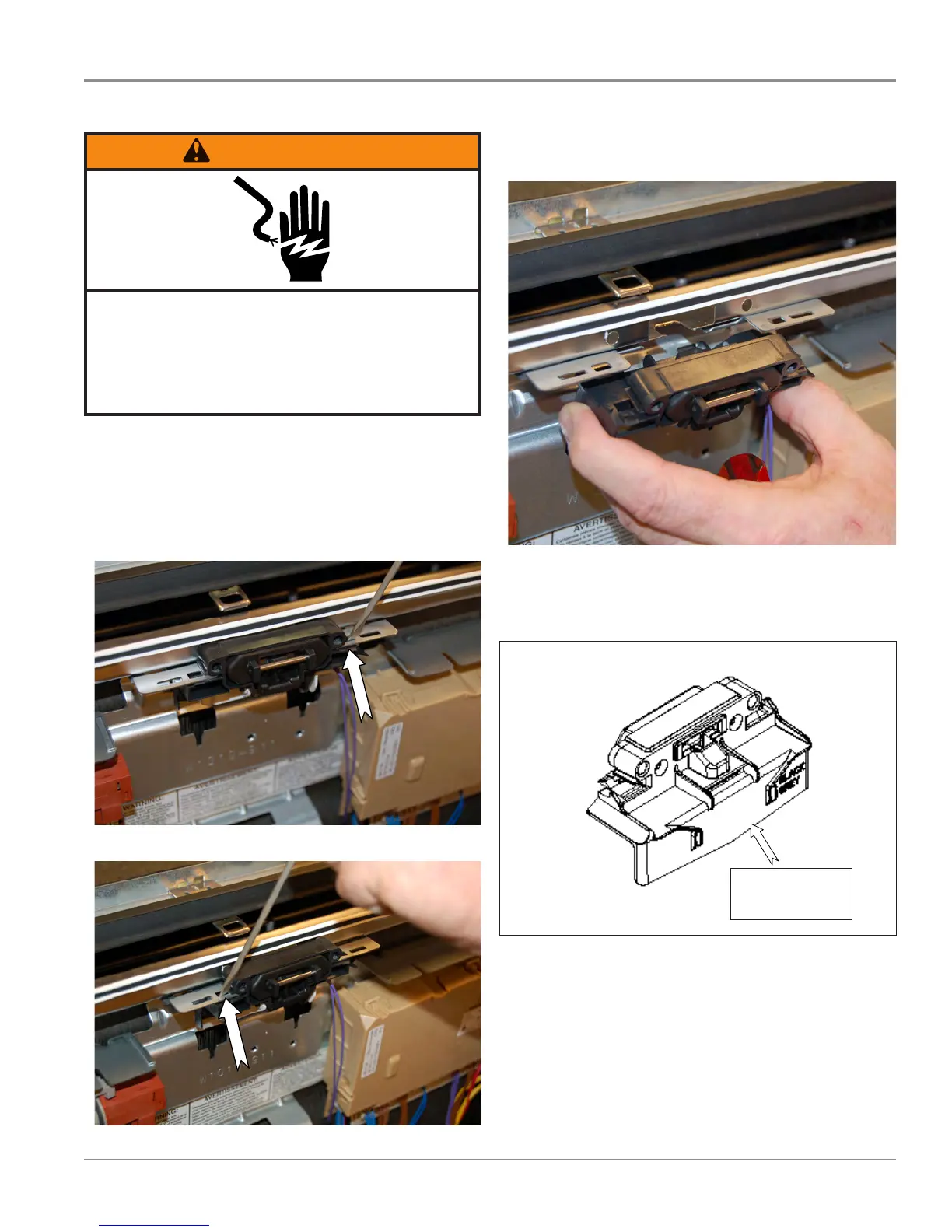

COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-7
1. Unplug dishwasher or disconnect power.
2. Remove the outer panel from the door.
3. Remove the user interface from the door.
4. To remove latch assembly, insert a small at-blade
screwdriver into the clip slots on each side of the latch.
Gently push in to release latch clips, see gure 1 and 2.
Removing Latch Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Figure 1
Figure 4
Figure 2
4. Remove latch assembly from door. See gure 3.
5. Disconnect harness assembly.
Door Latch
Assembly
Figure 5
