COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-5

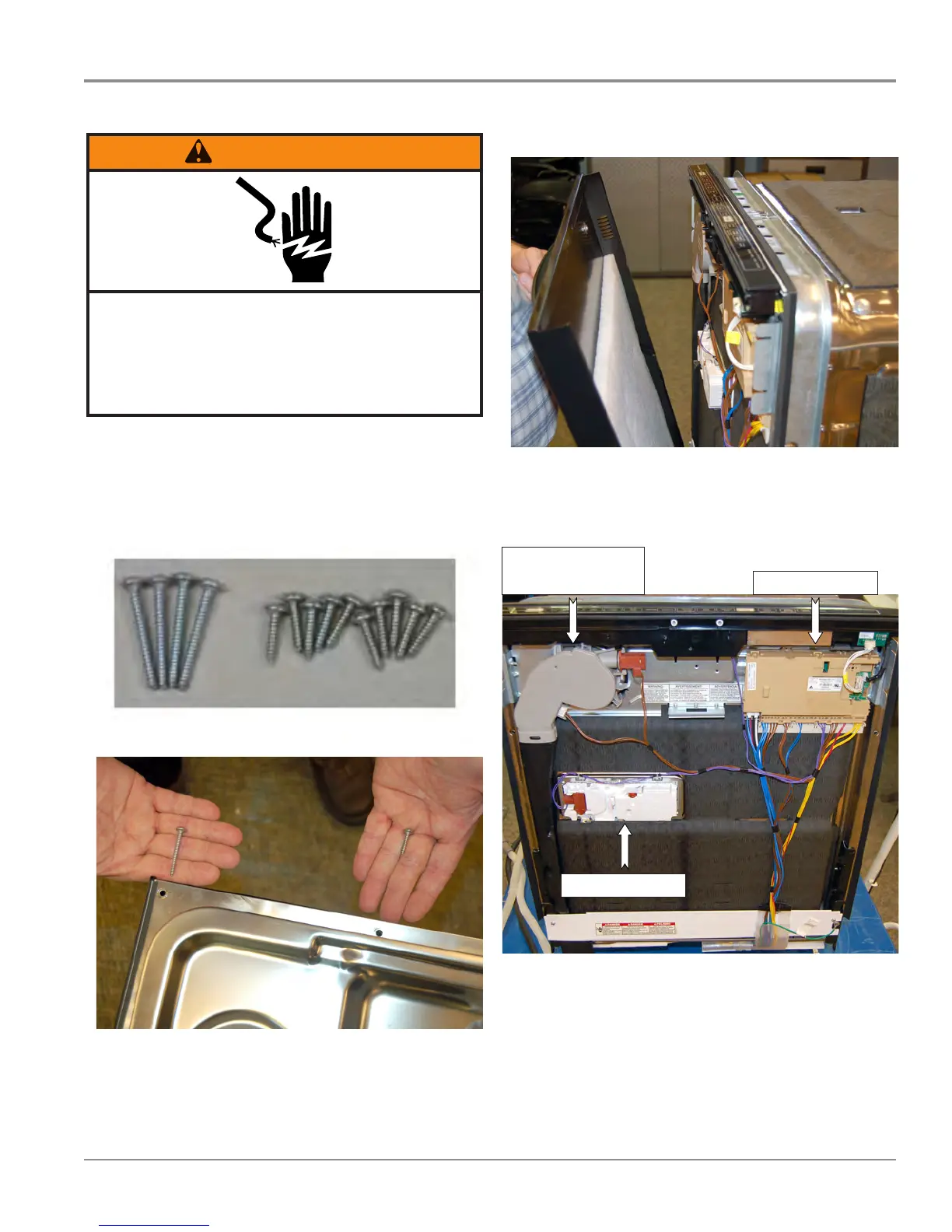

1. Unplug dishwasher or disconnect power.
2. Remove 4 screws (long) across top of door and 8 to 10
screws (short) on the sides, see gures 1 and 2.
Figure 1
Figure 2
Accessing Door Components
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing Door Panel
3. Remove the outer door panel, see gure 3.
Figure 3
Door Components
Figure 4
Dispenser
Vent Assembly
(some models only)
Electronic Control
To Next Page
