KitchenAid KUDE20FB*0 - Removing Proscrub Manifold

COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-15
To Remove ProScrub® Manifold:
(available on some models)
1. Unsnap manifold from distribuon tube.
2. Disconnect the manifold tube from the sump by liing up,
see gure 1.
NOTE: Powerful xed jets target water towards pots, pans, or
casserole dishes loaded in the back of the dishwasher.
Accessing Diverter Disk
(stainless steel tub)
1. Unsnap distribuon tube from tub clips. See gures 1 & 2.
2. Disconnect the feed tube from the diverter housing, see
gure 3.

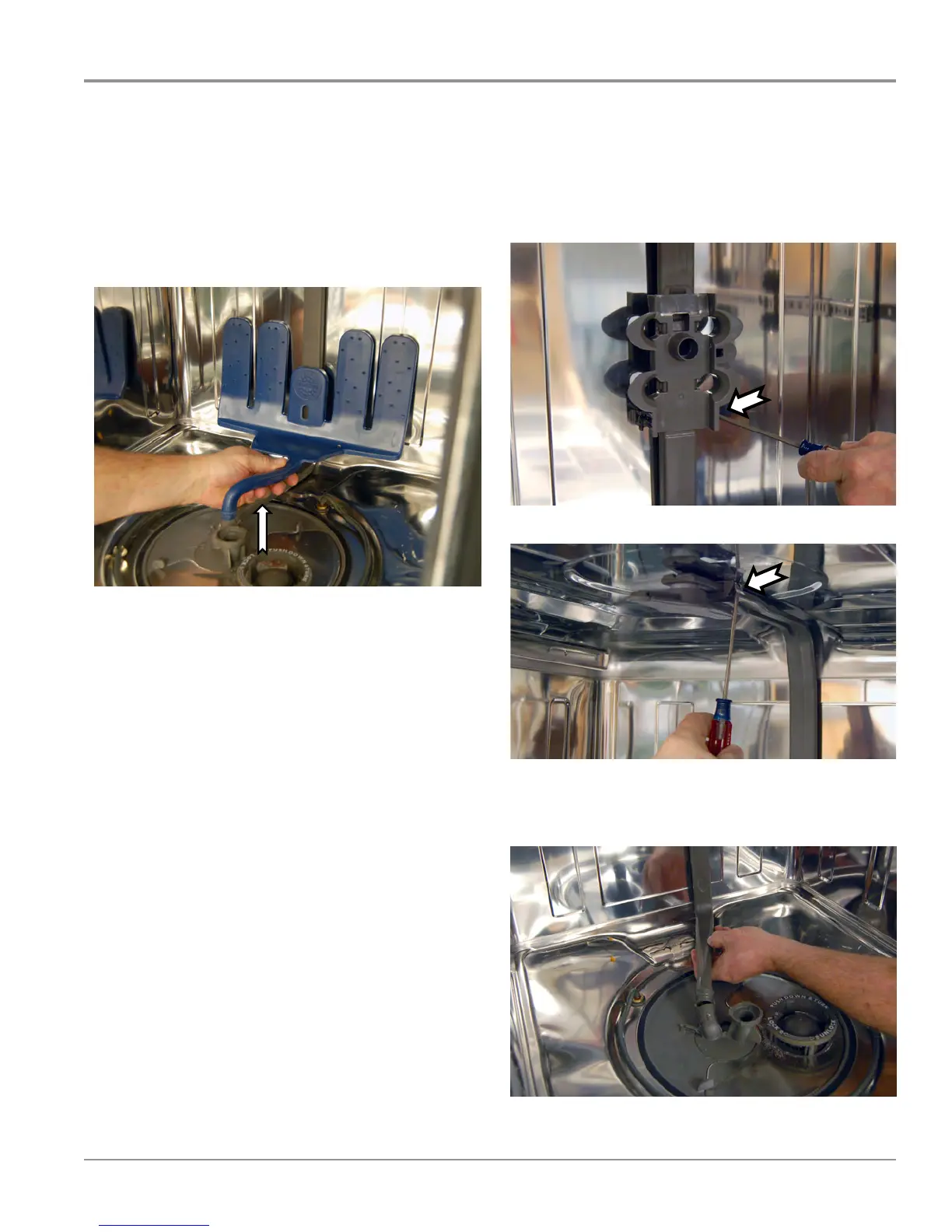

Figure 1
Figure 1
Removing ProScrub
®
Manifold and Diverter Disk
connued next page . . .
Figure 2
Figure 3
