COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-21
Figure 6
Figure 7
Figure 9 - Locked
7. Unlock the three tabs securing the motor and sump
assembly to the tub, see gures 8, 9 and 10.

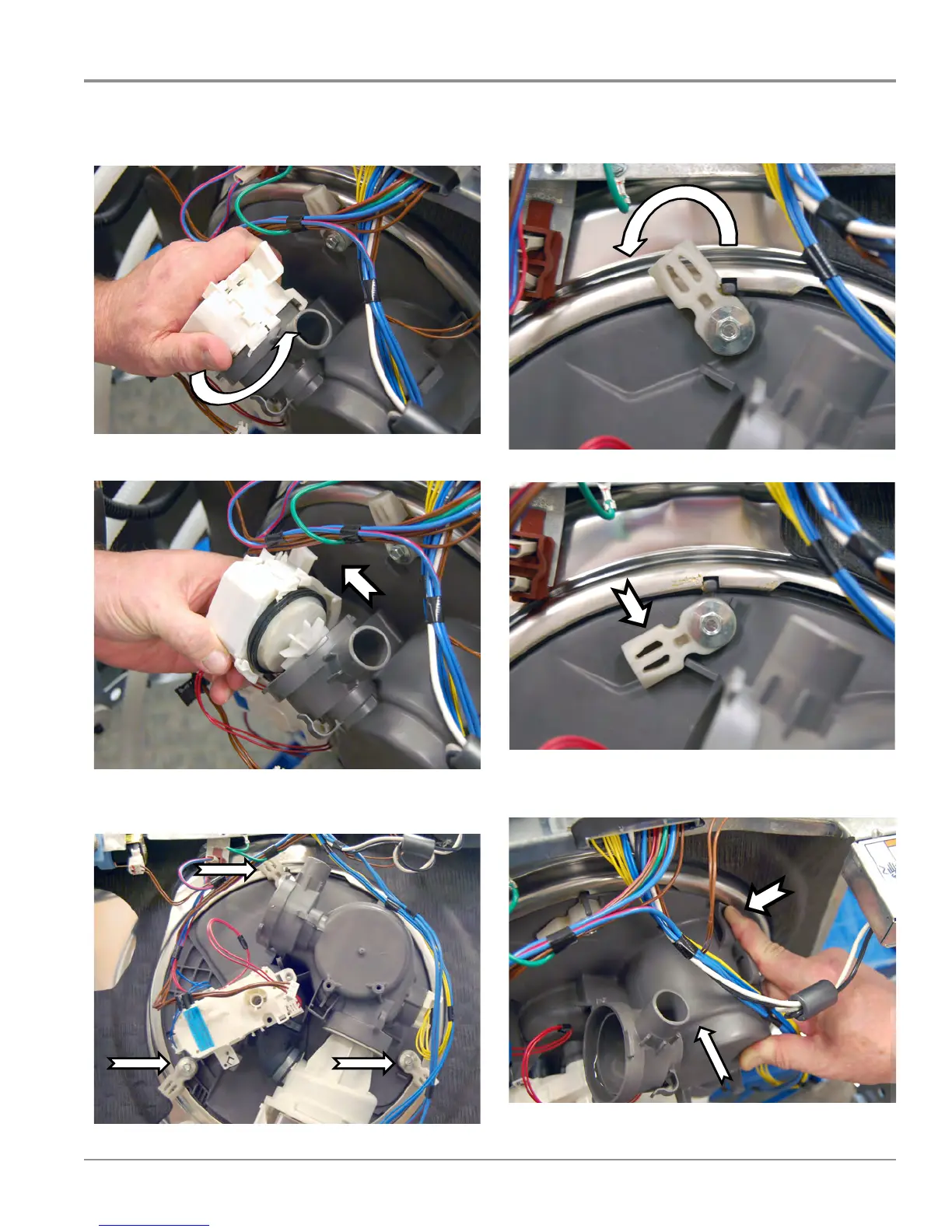

5. Rotate the drain pump 1/4 turn counter clockwise, see
gure 6.
6. Remove the drain pump, see gure 7.
Figure 8 - Tab Locations
Figure 10 - Unlocked
Removing Sump Assembly & Drain Pump (continued)
connued next page . . .
8. Depress the locking tab and push upward on sump to
detach from tub, see gure 11.
Figure 11
