KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
Figure 12

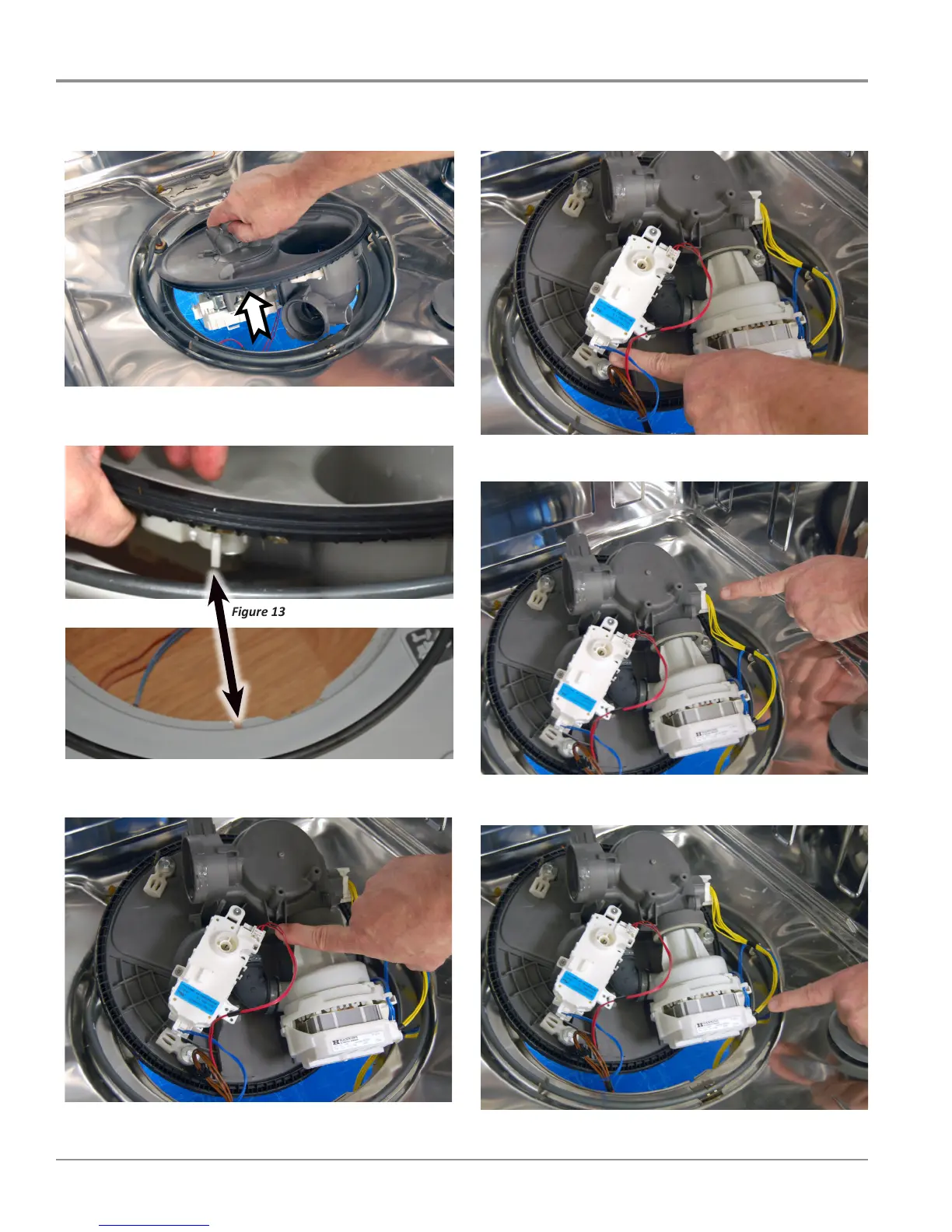

9. Tilttheassemblyandliouttoremove,seegures12.
10. Unplugthediverterposionswitchharness,seegure15.
Figure 13
Figure 14
NOTE: Wheninstallingthesumpassembly,alignthetabonthe
assemblywiththeslotinthetub,seegures13and14.
Removing Sump Assembly & Drain Pump (continued)
Figure 15
11. Unplugthedivertermotorharness,seegure16.
Figure 16
12. UnplugtheOWI/NTCharness,seegure17.
Figure 17
13. Unplugthewashmotorharness,seegure18.
Figure 18
