INSTALLATION
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
3-21

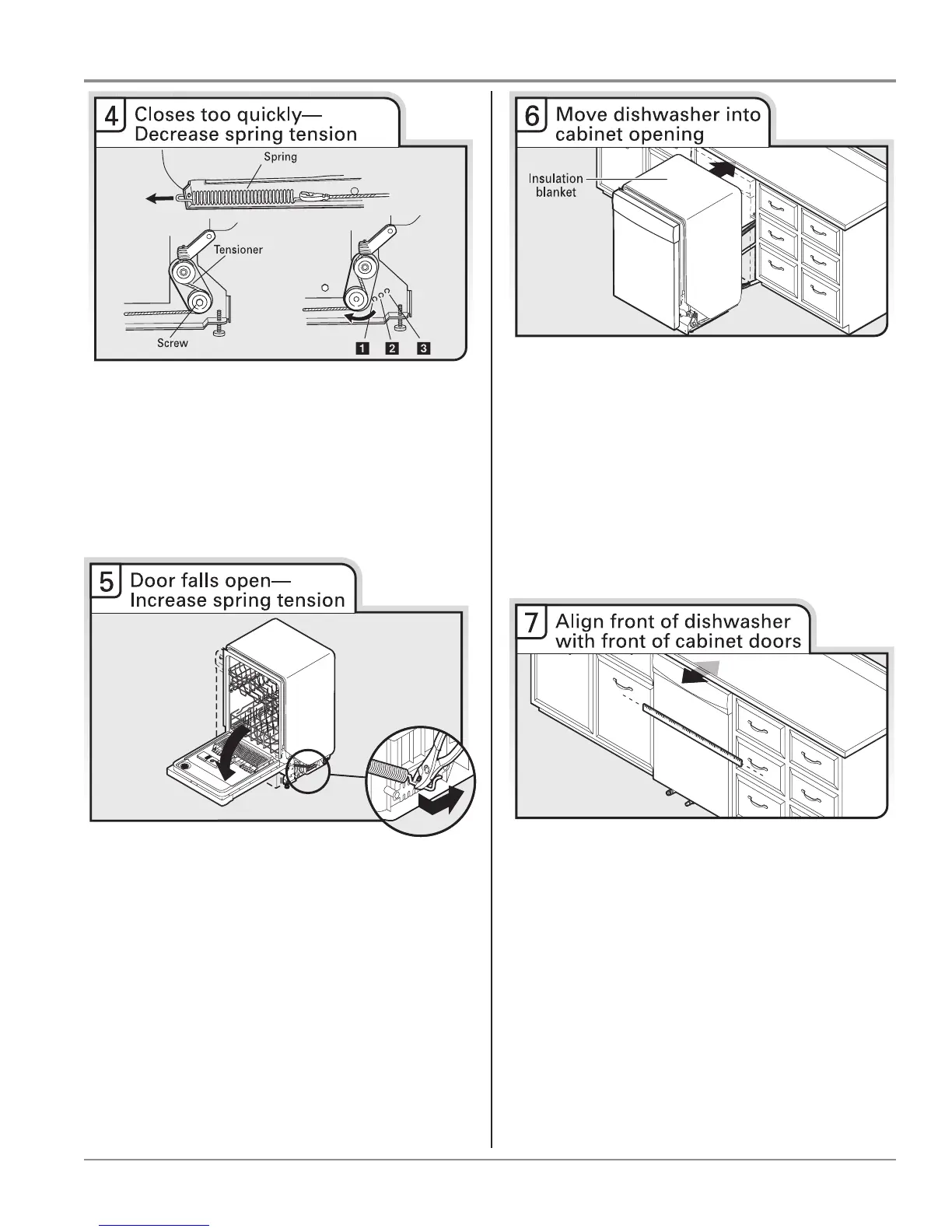

adjust the door spring tension, unhook the spring from the rear
.
a ⁵⁄₁₆" nut driver or hex socket, remove the screw from the
.
screw can be put into one of 3 holes (1, 2, 3) in the front leg of
. If the door closes by itself, move the tensioner to a
-numbered hole and replace screw. Reattach door spring to
ear leg.
Tensioners on both sides of dishwasher should be secured
at same holes.
When door is unlatched, if door opens by itself, move the
tensioner to a highe
r-numbered hole and replace the screw.
rear leg.
Tensioners on both sides of dishwasher should be secured
IMPORTANT: If wheels were removed, cover the floor when
moving the dishwasher
. Slowly move dishwasher completely into
cabinet opening. Do not kink or pinch water line, drain hose,
power supply cord or direct wire between dishwasher and
cabinet. Remove cardboard from under dishwasher.
NOTES:
■
It is all right if dishwasher fits tightly into cabinet opening. Do
not remove insulation blanket – the blanket reduces the
level.
■ If using power cord, make sure to route end through hole in
cutout before sliding dishwasher into cabinet opening.
■ For models with water softener, make sure that the drain hose
stays on the hanger that is on the right-hand side and is
tucked in on the side of the unit.
Align front of dishwasher door panel with front of cabinet doors.
You may need to adjust alignment to be even with your cabinets.
