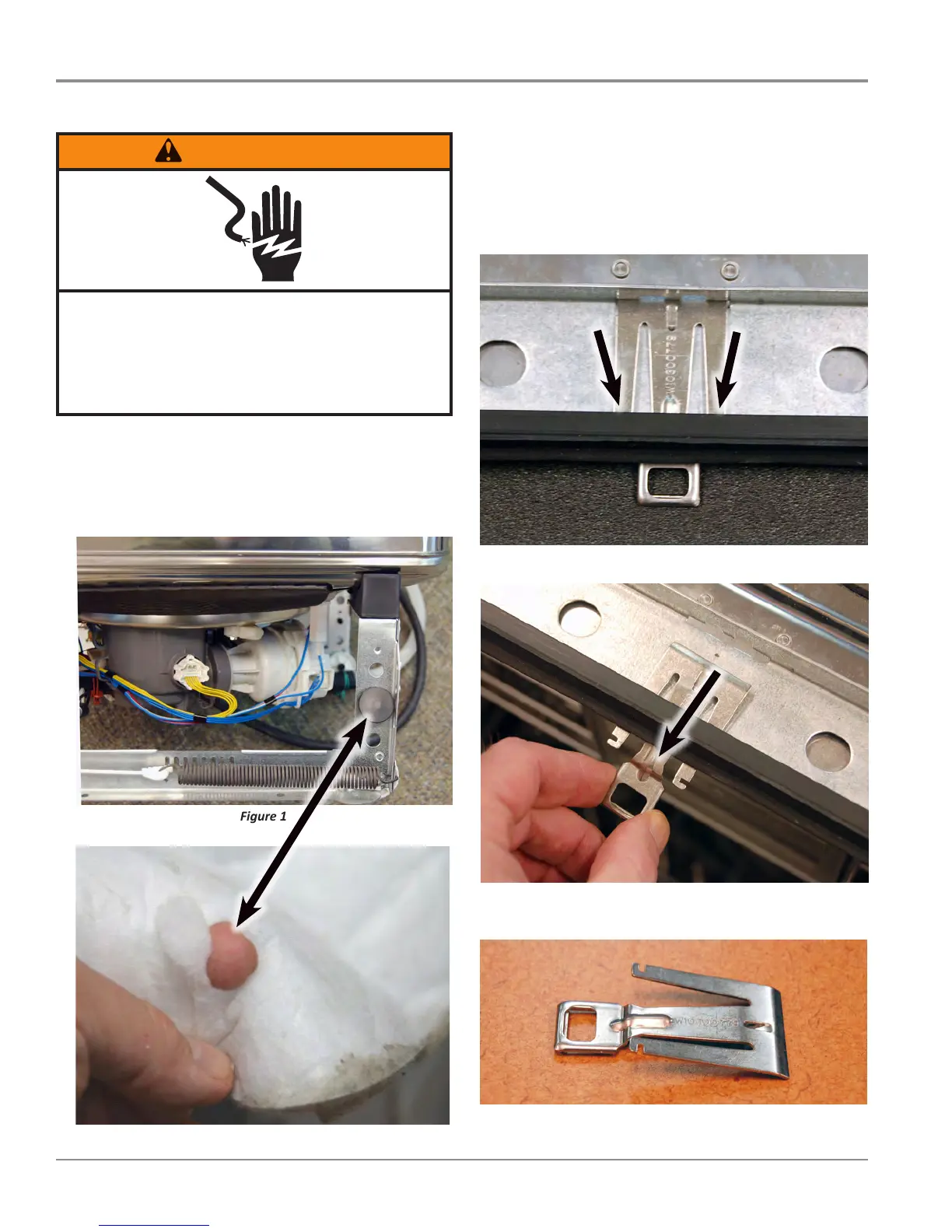

KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
Insulation Blanket and Door Latch Strike
Installing Insulaon Blanket
(Stainless Steel Tub Models Only)
1. Fasten the blanket on the tabs located on the sides of the
tub, see gures 1 and 2.
Figure 1
Figure 2
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing Door Latch Strike
(FID and 2 ½” Console)
1. Open the dishwasher door.
2. Depress the 2 outside bars and pull out the latch, see
gures 1, 2 and 3.
Figure 1
Figure 2
Figure 3
To Next Page
