COMPONENT ACCESS
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
4-17
Figure 8
Figure 9

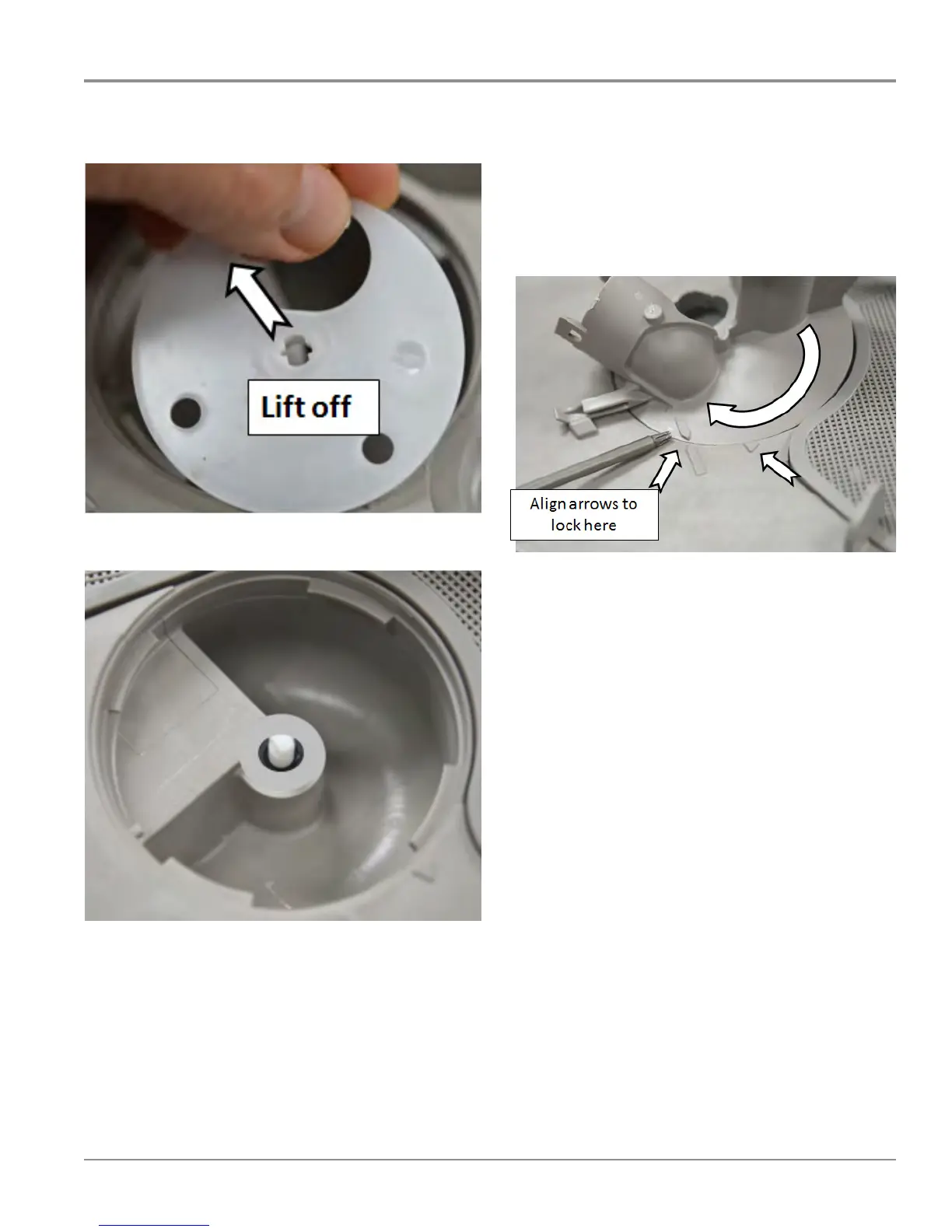

Installing Diverter Housing
1. Align the arrow on the diverter housing to the lower
arrow on the sump.
2. Rotate the housing clock wise unl the diverter housing
locks in place, see gure 1.
Figure 1
Removing Diverter Disk (continued)
7. Lift off the disc, see figures 8 and 9.
