1. CONTROLLER
This documentation does not contain electrical diagrams or information about electric controls.
This information can be found in the documents:
KLIMOR_DTR_EVO-T_E.SCH_060.x.x
KLIMOR_DTR_EVO-T_CS_033.x.x
1.1 Desctription of the controller elements
ELP11R32L-Bac+ BASIC – communication with BMS via BACnet MS-TP or Modbus RS485 (RS485 master interface)
ELP11R32L-Bac IP+ BASIC– communication with BMS via IP BACnet or Modbus TCP/IP (RJ45 port of the Ethernet card em
-
bedded in the controller at the location marked on the controller as ETH). The controller with ETH card is optional.
It is not possible to add the card on your own.

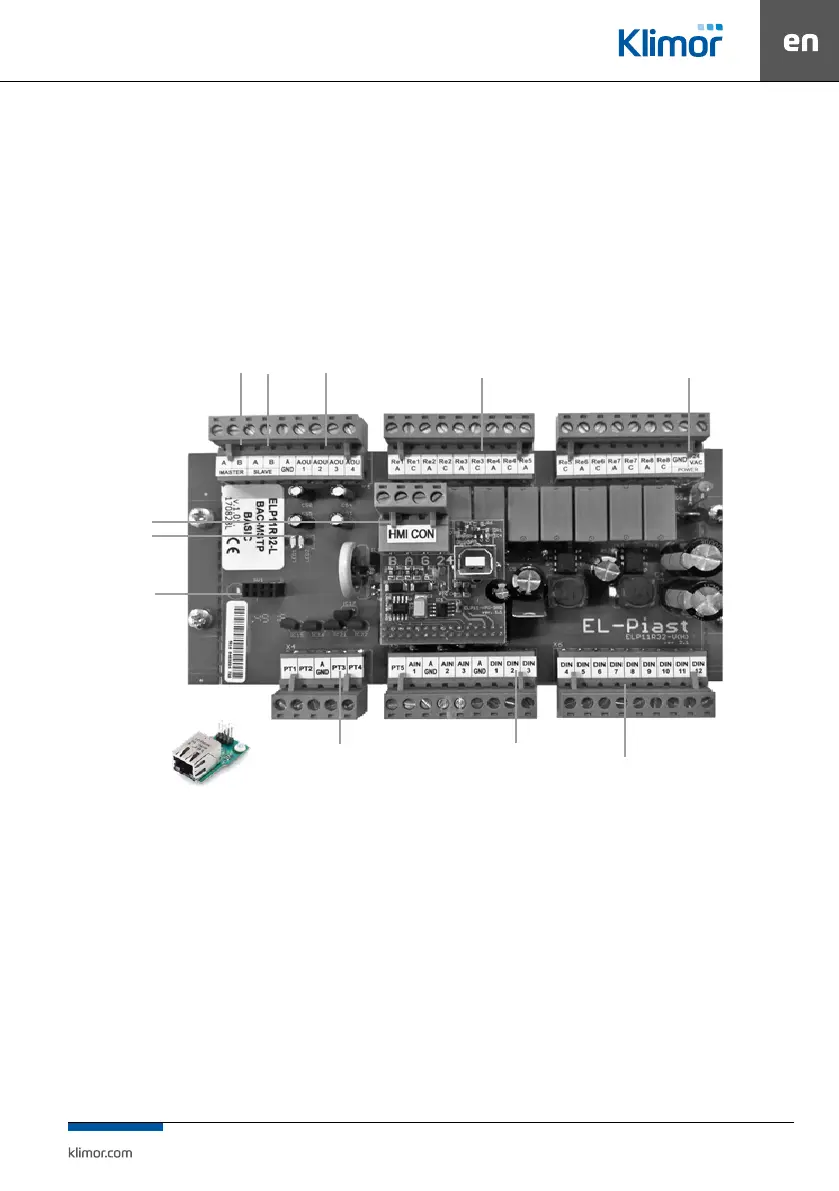

Fig1 Controller view
1
6
7
8
9 10
2 3 4 5
11
1. RS485 Master output, for communication with BMS
2. RS485 output Slave, for communication with inverters
3. Analog outputs Aou1-3 (0-10VDC)
4. Relay outputs Re1-8 (max 3A, AC1)
5. 24VAC/VDC power supply
6. HMI CON connector, connection with HMI programming
device
7. Communication and alarm messaging
8. ETH connector, possible to install optional ETH module
with RJ45 connector for communication with BMS
9. Measurement inputs of PT1-5 (PT1000) temperature sen
-
sors
10. Analog input Ain1-3 (0-10VDC)
11. Digital input DIN1-12
Note:
Before installing the ETH card, remove the standard exter
-
nal memory from the ETH connector.
Functions of ETH card:
IP address – Ethernet card address (192.168.0.8)
Network mask – subnet mask (255.255.255.0)
Gateway IP – default gateway (192.168.0.1)
