Cone and Thread Tube

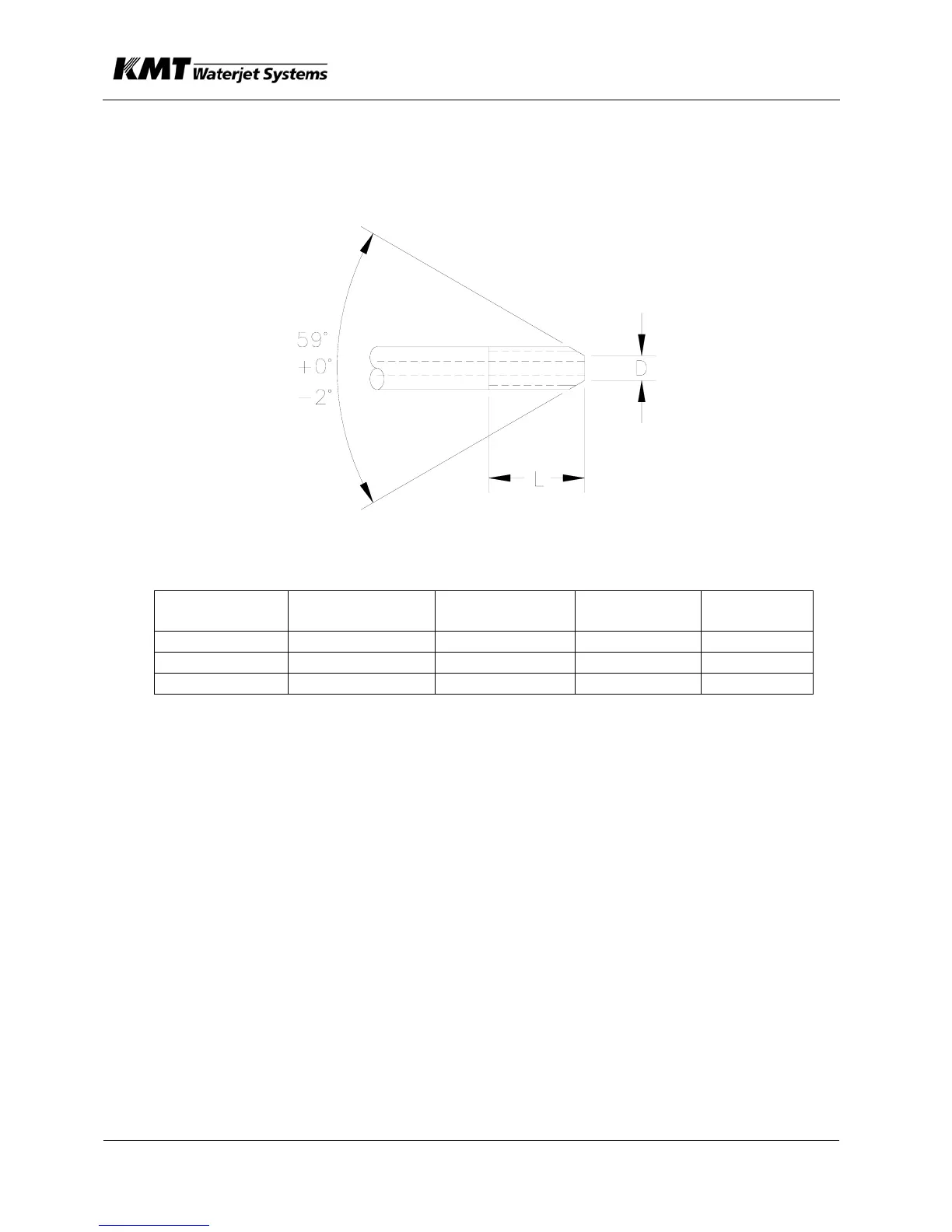

Cone and thread both ends of the tube per following diagram and

procedure.

Cone and Thread Dimensions

O.D. Size

mm (inch)

I.D. size

mm (inch)

D (max)

mm (inch)

L (max)

mm (inch)

Thread

NF-LH

6.35 (1/4") 2.11 (0.083) 3.58 (0.141) 14.3 (0.562) (1/4"- 28)

9.52 (3/8") 3.18 (0.125) 5.56 (0.219) 19.1 (0.750) (3/8"- 24)

14.27 (9/16") 4.78 (0.188) 7.14 (0.281) 23.8 (0.938) (9/16"- 18)
