KMT Streamline SL-IV User Manual

SECTION 2
INSTALLATION
July 2003
2-7
05130661
To cone the tubing, use the following figure as reference.

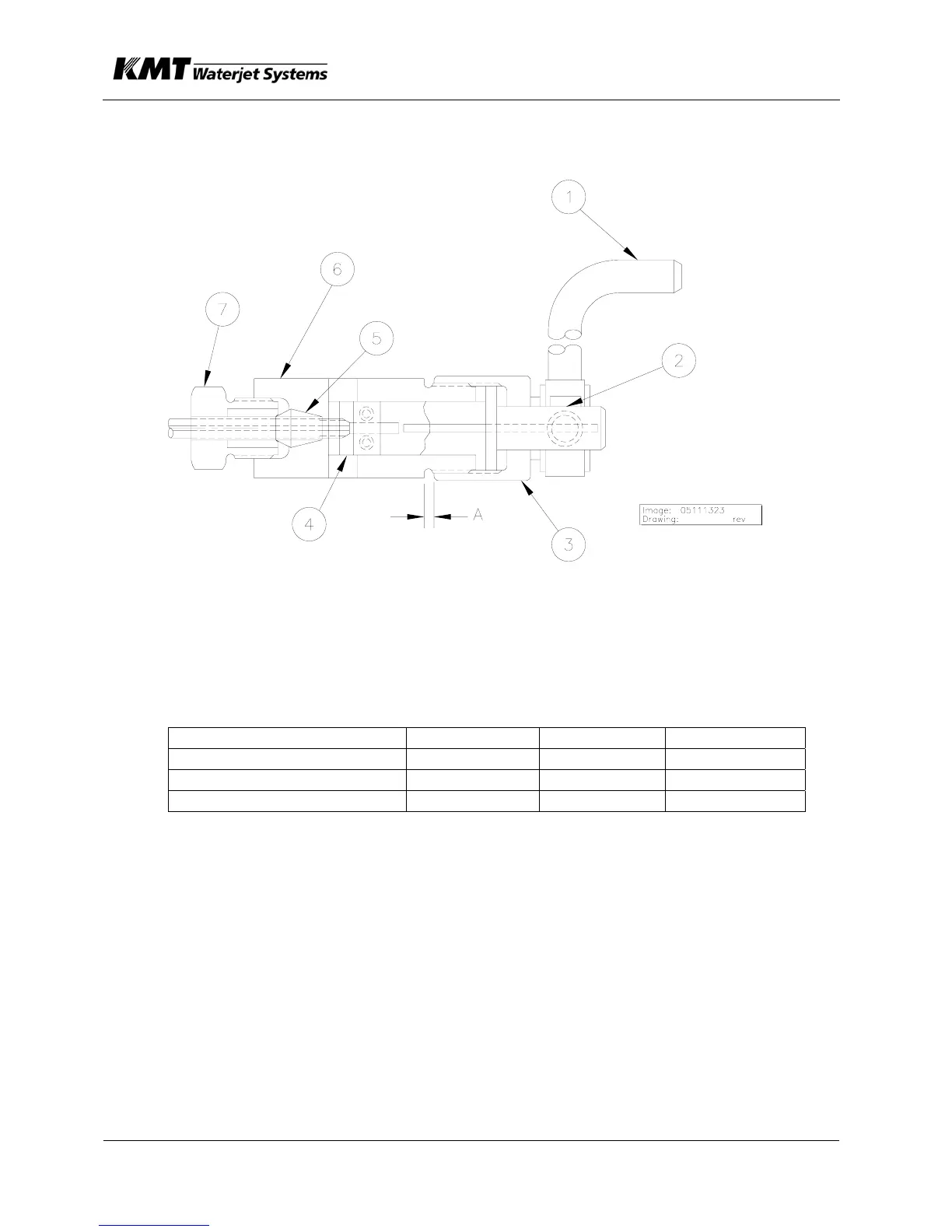

Cone and Threading Tool
Item Description
(1) Cutter Handle (2) Cutter Support (3) Feed Nut
(4) Cutting Blades (5) Collet (6) Housing (7) Gland Nut
Tube Size (inch) 1/4” 3/8” 9/16”
A mm (inch) 3.30 (0.13) 4.07 (0.16) 7.11 (0.28)
Coning Tool (Part) 10079556 10097418 10079663
Threading Tool (Part) 10079697 10097434 10097442
