7.3 Changing the polishing / deburring brushes and polishing
paste
To change the polishing and deburring brushes,
the shaft must first be fixed in place with a SW10
flat wrench in order to then loosen the threaded
nut with a SW22 flat wrench.
ATTENTION
The left shaft (7-4/1) has a left handed
thread. To loosen the threaded nut on the
left, turn it in clockwise direction.
The right shaft (7-4/2) has a right handed
thread. To loosen the threaded nut on the
right, turn it in anti-clockwise direction.
To replace the polishing pastes, loosen the four
star knobs (7-4/3) on the side and remove the
cover (7-5/1).
The used-up paste can now be replaced with new
paste. Place the cover back again and tighten the
four star knobs.
7. Operation

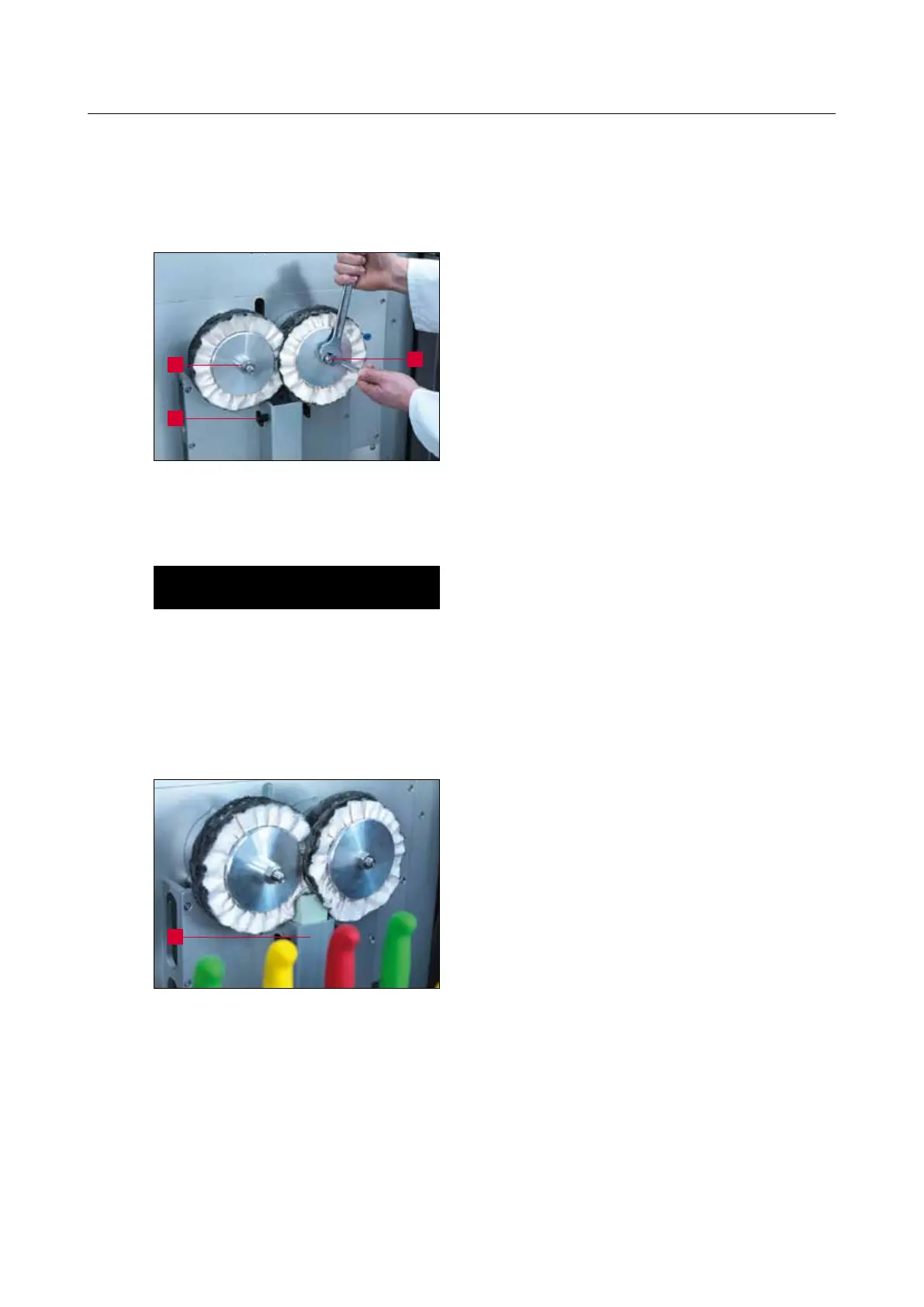

Figure 7-4 Replacing the polishing / deburring
brushes
Figure 7-5 Replacing the polishing paste
1
1
2
3
