48

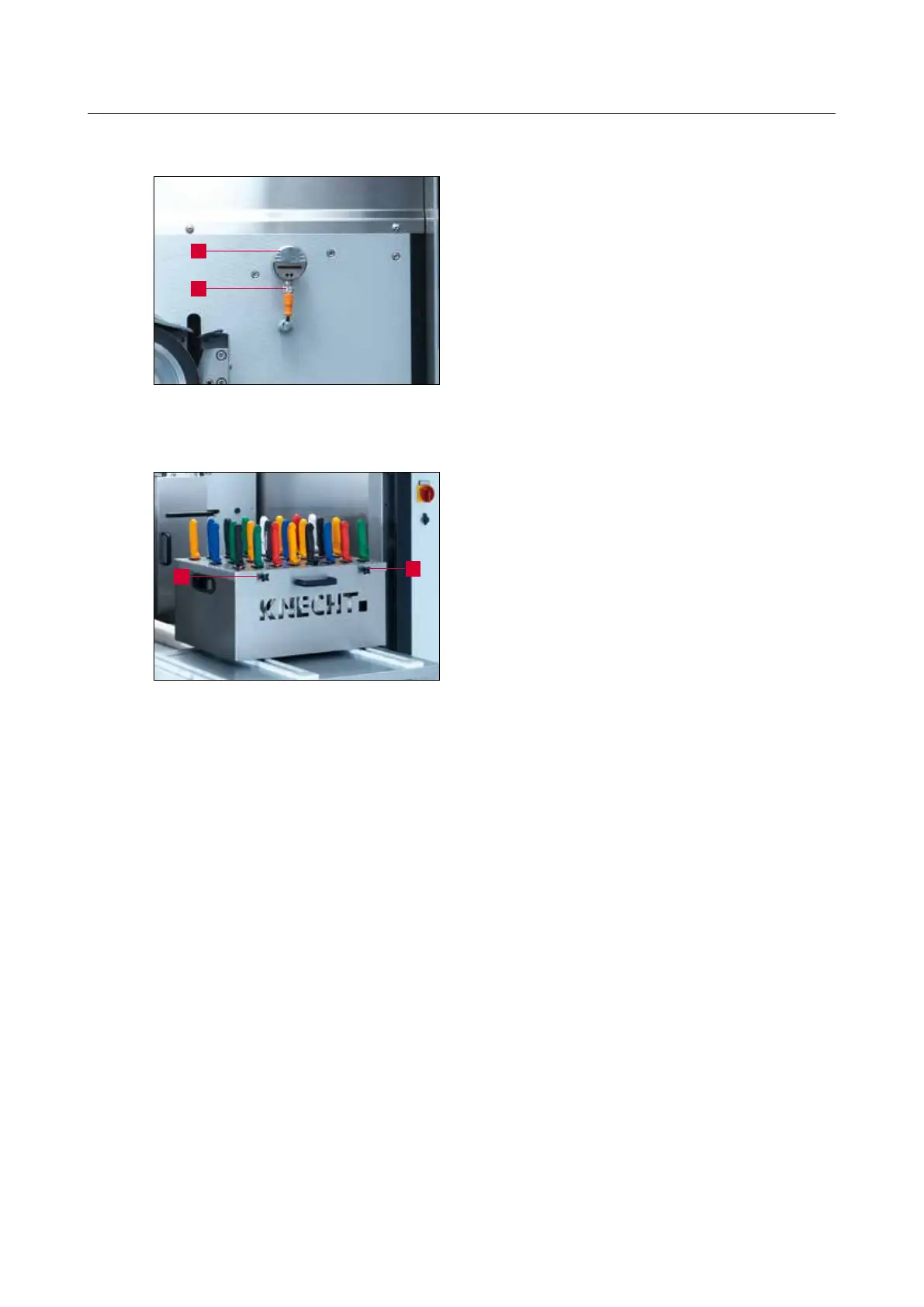

Figure 9-8 Knife magazine
1
1
Remove and clean the flow gauge (9-7/1) once a
month.
For this purpose, disconnect the connector (9-7/2)
and turn the flow gauge in counter-clockwise
direction by hand. Clean the measuring probe
with a clean cloth.
Lightly grease the thread (not the probe) and
re-tighten.
Remove the knife magazine daily and clean with
a steam jet outside of the machine. For removing,
loosen the star knobs (9-8/1) and turn the maga-
zine upside down.
Now you can remove the plate. Re-assemble in
reverse order.
Figure 9-7 Flow gauge
1
2
9. Care and maintenance
