4-100 A-61635 December 2010

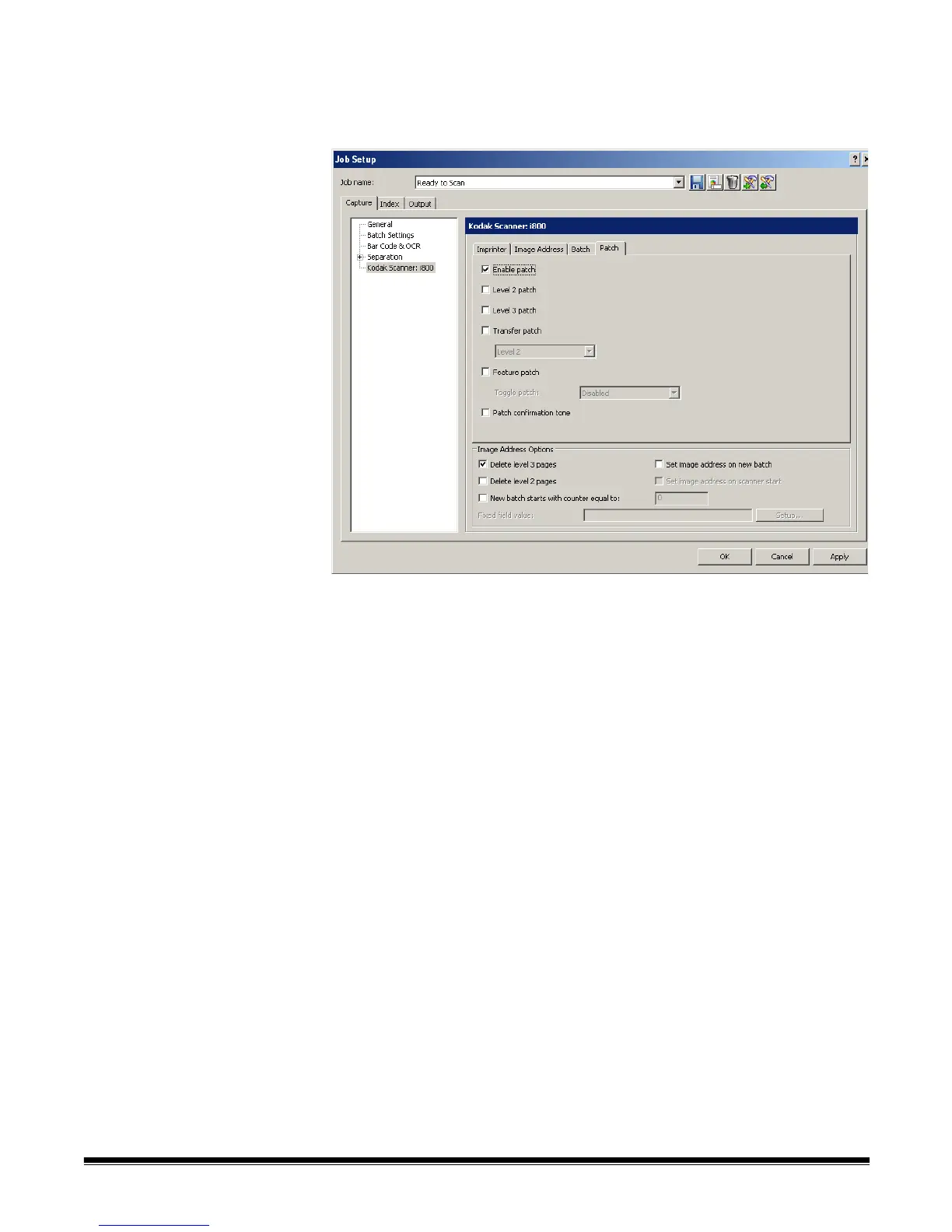

Patch tab The Patch tab provides choices of what patch type to recognize. One or more
patches can be selected at a time. The type of patch recognized is returned in
the image header. See the Kodak publication A-61599, Patch Code
Information for Kodak Document Scanners for complete information.
Enable patch — enables the patch code reader. Must be checked to enable
any other options on this tab.
Level 2 patch — creates a new document (whether it reads your document
with a patch on it or a Level 2 patch sheet).
Level 3 patch — creates a new batch (whether it reads your document with a
patch on it or a Level 3 patch sheet).
Transfer patch — assigns a patch level to the next document (after the
Transfer patch sheet). Select one of the following options from the drop-down
list: Level 2 or Level 3. The Transfer patch will be treated as Level 0.
Feature patch — Patch Types 1, 4 and 6 can be used by the scanning
application for post-scan image control (they are not used for image
addressing). For example, use these patch types for workflow control or
changing between black and white and color/grayscale imaging.
Toggle patch — use the drop-down list to select which patch heads/readers
you would like to use. Each patch head/reader can be turned on and off
independently. The default is for all patch heads/readers to be turned on. This
option is only available when the scanner is in Image Address mode. The
options are: Disabled, Both sides, and Front side.
Patch Confirmation Tone — the confirmation tone signals that the scanner
has recognized a patch. The default is no confirmation tone.
Image Address Options — these options appear on all the tabs. For detailed
information about these options, see the section “Image Address options”
previously in this section.
