MDC-1840BB/1841BB/1860BB/1810BB/1820BB Series Chapter 6
Using The Menu Operation Manual
93142122-07 6-37
the AIS transponder and own GPS/SHIP information.

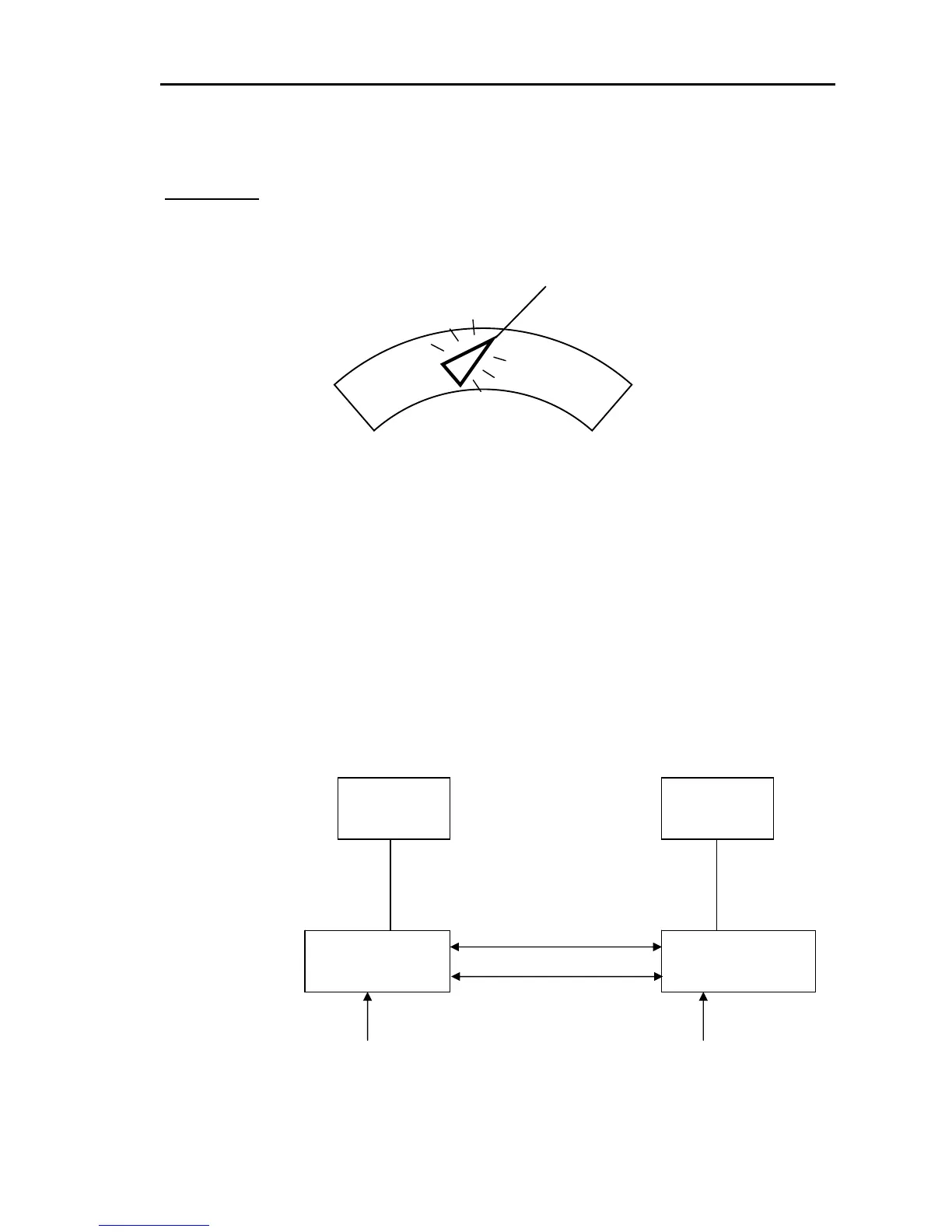

Guard Zone
When the Guard Zone is set, an AIS target located in the Zone cause a AIS Guard
Zone Alarm. The AIS symbol is displayed flashing and "Guard Zone Alarm" will be
indicated in the AIS window..
6.9 Operating the Interswitch
6.9.1 Outline of Interswitch
Two radar systems can be used for an independent system, cross over switched
system, master-slave system, or dual control system with the Interswitch function. The
interswicth function is useful when a transceiver unit, an antenna, or a display unit is
out of order. The non-faulty unit can be used for the radar system instead of the faulty
unit with the interswicth function.
6.9.1.1 System Diagram
REMOTE cable
DATA Cable
Antenna
(
1
)
Antenna
(
2
)
Display Unit (1) or
Processor Unit (1)
Display Unit (2) or
Processor Unit (2)
Power Supply, Heading,
Speed, L/L
Power Supply
CONT1
SCAN1
CONT2
SCAN2
