10.4.5 Radar Signal input/output
Port name: REMOTE
The connector used:
Type LTWU-12PMMP-LC
RADAR STATUS SELECT MENU
The Display Unit can be used as a radar remote display. When the RADAR STATUS
SELECT MENU setting is set to INDEPENDENCE/MONITOR, the display unit
operates with the radar signal supplied from the external radar unit. Please read "6.9
Operating the Interswitch" on this manual, too.
Pin No. NAME
1 VIDEO OUT
2 TRIG OUT
3 GND
4 AZIP OUT
5 SHF OUT
6 GND
7 VIDEO IN
8 TRIG IN
9 GND
10 AZIP IN
11 SHF IN
12 +12Vdc

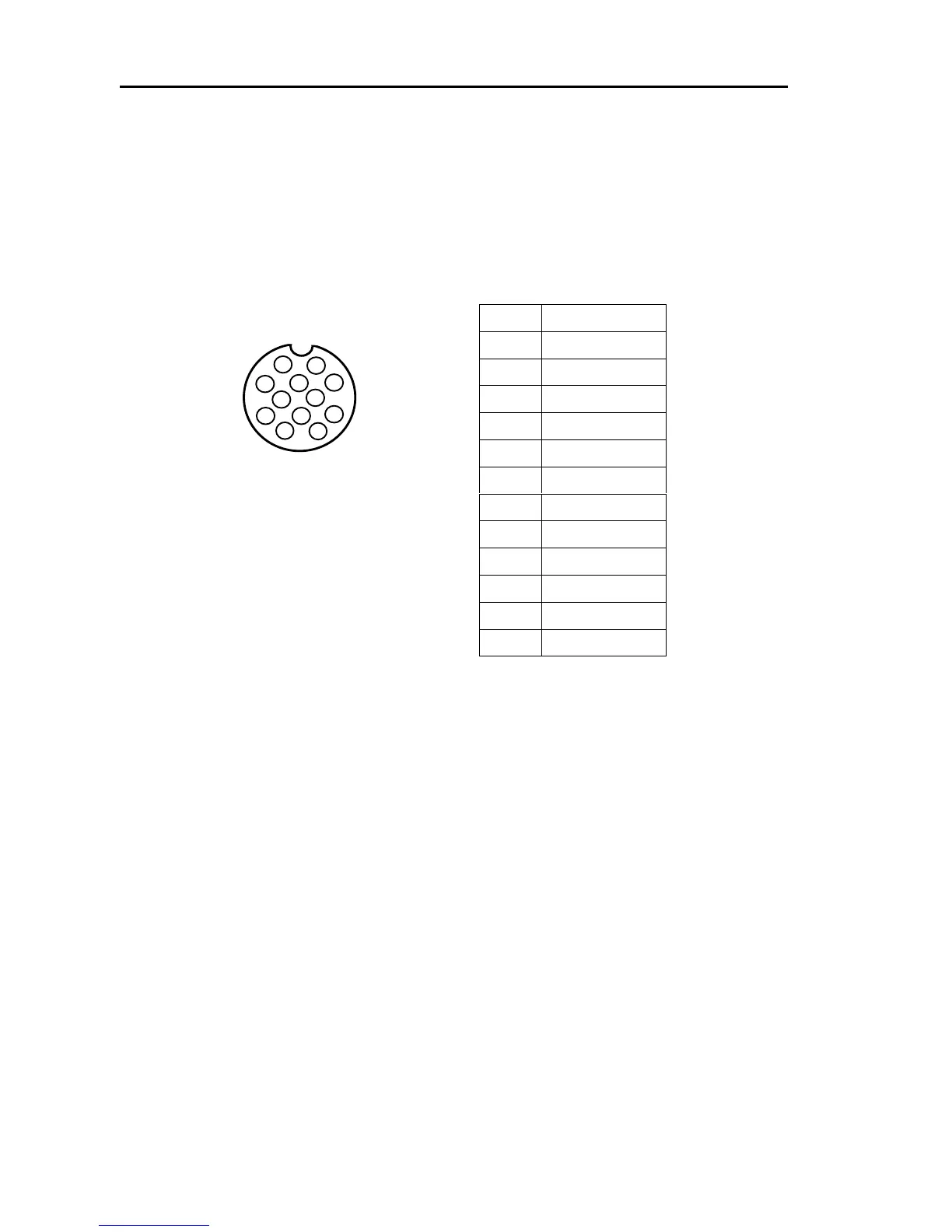

Pin assignment on
Data Connector
(Top view)
Data connector pin assignment
1
2
3
4
5
6
7
8
9
12
10
11
