Chapter 8 MDC-1840BB/1841BB/1860BB/1810BB/1820BB Series
Trouble Shooting And On Board Servicing Operation Manual
8-18 93142122-07
8.4 On board servicing
8.4.1 Replacing the fuses
There are three fuses provided on the processor unit. Details are as follows:
z Fuse type and ratings
Fuse name Shape (Dimensions in mm) Fuse Type Ratings
Main fuse
Tubular type (φ6.3 x 32)
Normal Blow 15 A
Modulator fuse
Tubular type (φ5 x 20)
Normal Blow 0.3 A
Drive Motor fuse
Tubular type (φ5 x 20)
Normal Blow 5 A
z Location of the fuses

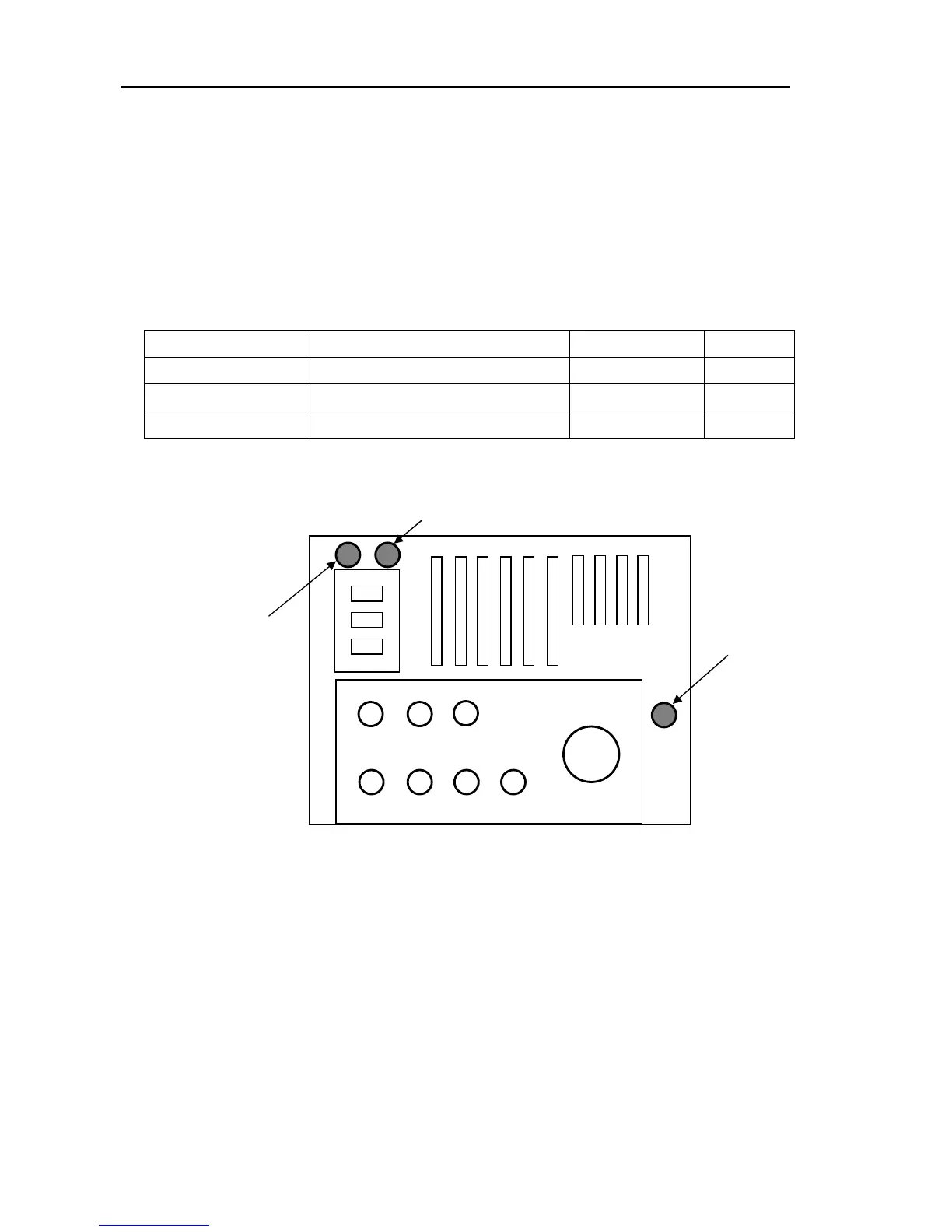

Figure 8.2 Fuses provided on the Processor
Processor unit
SCANNER
DATA 1
DATA 2
DATA 3
AIS
REMOTE
MAIN
GYRO
Modulator fuse
Drive Motor fuse
Main fuse
