Chapter MDC-1840BB/1841BB/1860BB/1810BB/1820BB Series
General Descriptions Operation Manual
1-4 93142122-07
Serial Data IN/OUT
DC mains
10.8 – 41.6 VDC
(RB715A/716A/717A/718A)
21.6 – 41.6 VDC
(RB719A)
AC mains
100/115/200/230 VAC
This section is built into the Display unit
Data 1 (TX/RX)
Data 2 (TX/RX)
Data 3 (TX/RX)
PROCESSOR UNIT
Type MRM-100
ANTENNA UNIT
AERIAL Type
RW701A-03 (3ft), RW701A-04 (4ft) or RW701A-06 (6ft)
TRANSCEIVER Unit
Type RB716A(4kW), RB717A (6kW), RB718A (12 kW) or RB719A (25 kW)
Gyro/Log Interface
Type KSA-08A
(Option)
Bearing Signal
LOG Signal
Gyro Power Supply
(11-40 VDC)

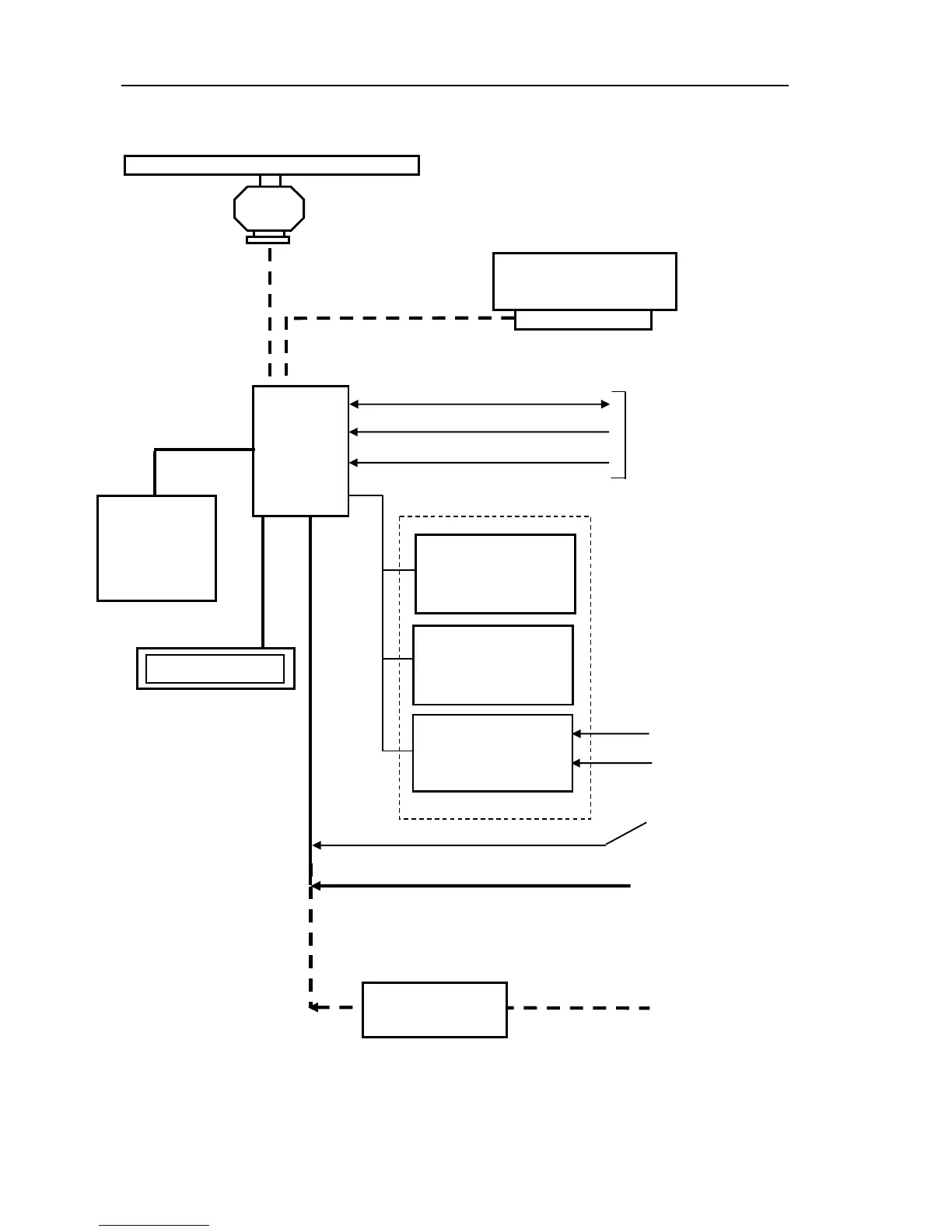

Figure 1.1 System configuration of
MDC-1840BB/1841BB/1860BB/1810BB/1820BB series of radar
Connecting Cable
Type 242J159098B
Length: 15 m
DC Power cable
Type CW-256
Length: 3 m
AC/DC Rectifier
Type PS-010
AC Power Cable
Type: VV2D8
Length: 3 m
AIS Interface
Type AIS-100
(Option)
ATA Type MRE-300
(Option)
OPERATION UNIT
Type MRO-100
Display UNIT
(User supply)
CW-560 (Option)
Length: 2 m
Connecting Cable
Type 242J158055B
Length: 15 m
ANTENNA UNIT
ANTENNA Unit
T
yp
e RB715A
(
4kW
)
