Kohler KDW 1603 User Manual

99
97
98
A 10,8mm
C 13,4mm
D 88mm
6
- 59 - - 59 -

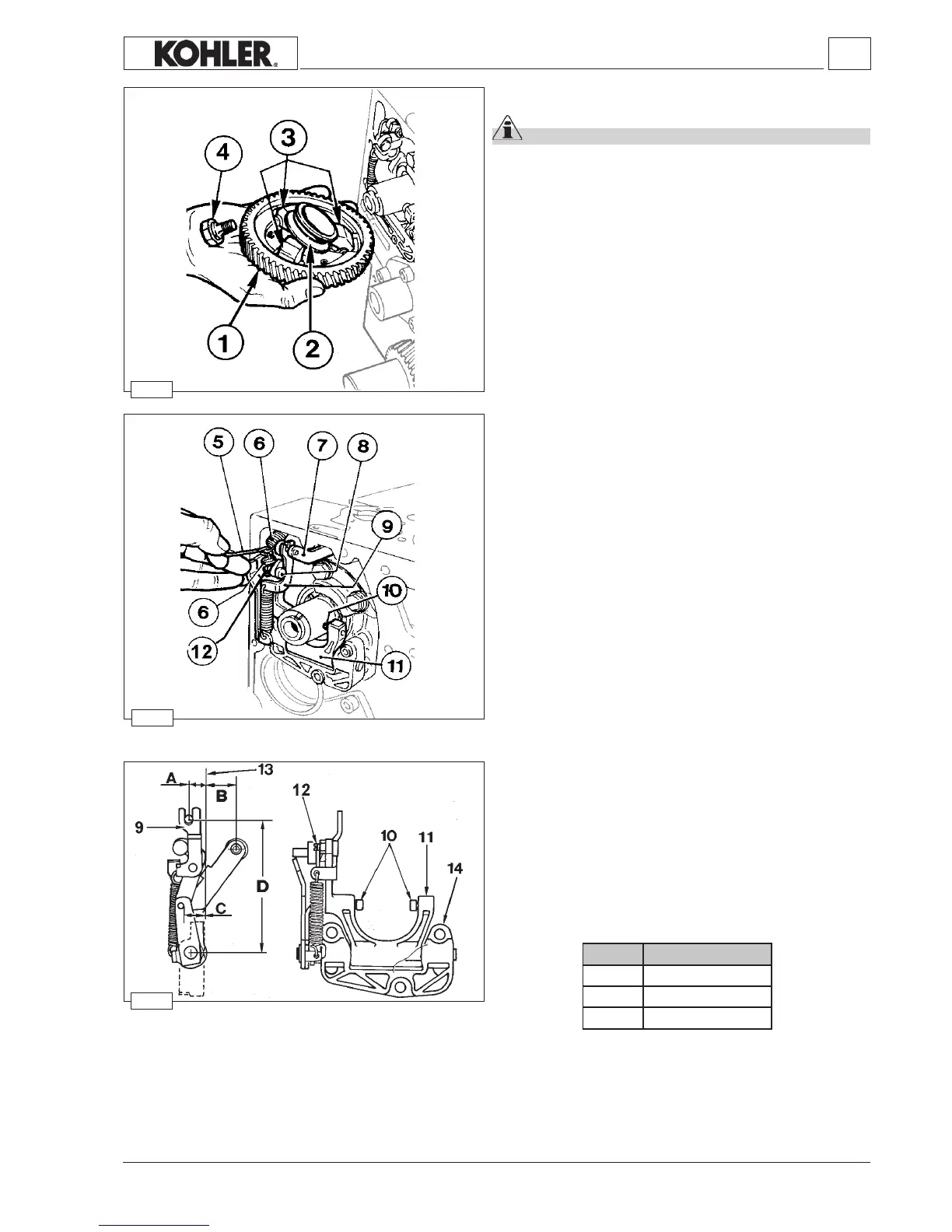

Disassembly / Reassembly
Speed governor
Important
During reassembly, make sure the components are
undamaged and verify they work properly.
Malfunctioning of the speed governor can cause serious
damage to the engine and to people in the vicinity of it.
Components:
1 Gear
2 Bell
3 Counterweights
4 Bolt
5 Throttlecontrolrod
6 Governorspring
7 Injectionpumpdeliveryrod
8 Yoke9 adjustementeccentric
9 Controlyokeforinjectionpumpdeliveryrod
10 Bushing
11 Lever
12 Adjustingscrew.
Yoke 9 ispre-setthroughscrew 12 andeccentric 8.
Donotunscrew.
 Whenrettingcamshatgear 1 tightenbolt4to100Nm.
Dimensions for injection pump delivery control yoke
adjustement
Components:
9Controlyokeforinjectionpumpdeliveryrod
10Bushing
11 Lever
12 Adjustingscrew
13Referenceandmountingplaneforsupport14
14 LeverSupport
Note: If, when adjusting, screw 12 is unintentionally loosened
adjustyoke 9 consideringthedimensionsA, C andD.
 Incaseofreplacementlever11issuppliedcompletewith
presetyoke9.
Dimensions (mm)Ref.
Workshop Manual KDW 1603_2204_2204/T _ cod. ED0053029180 - 1° ed_rev. 00
