Electric system
Starting Motor 12V
BoschtypeEV12V2.2Kw
RHdirectionofrotation.
Note:ApplytoaBoschservicecenterforanytipeofrepair.

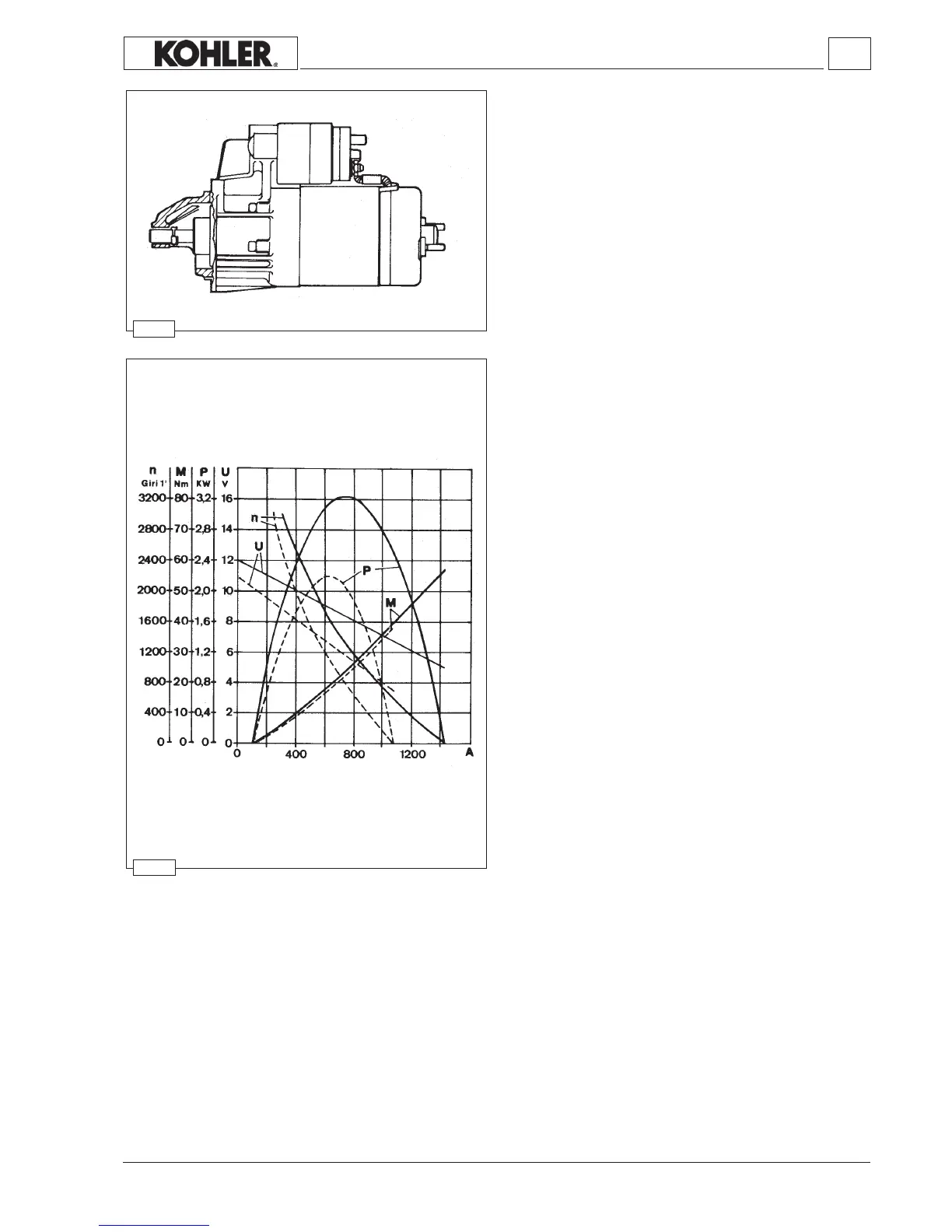

Characteristic curves for starting motor type Bosch EV
12V 2.2 kW
The solid lines were obtained at a temperature of +20°C; the
dotted lines were obtained at a temperature of -20°C.Battery
type110Ah450A.
U=MotorterminalvoltageinVolt
n=Motorspeedinrpm.
A=AbsorbedcurrentinAmpere
P=PowerinkW
M =TorqueinNm
