Kollmorgen S700 Series

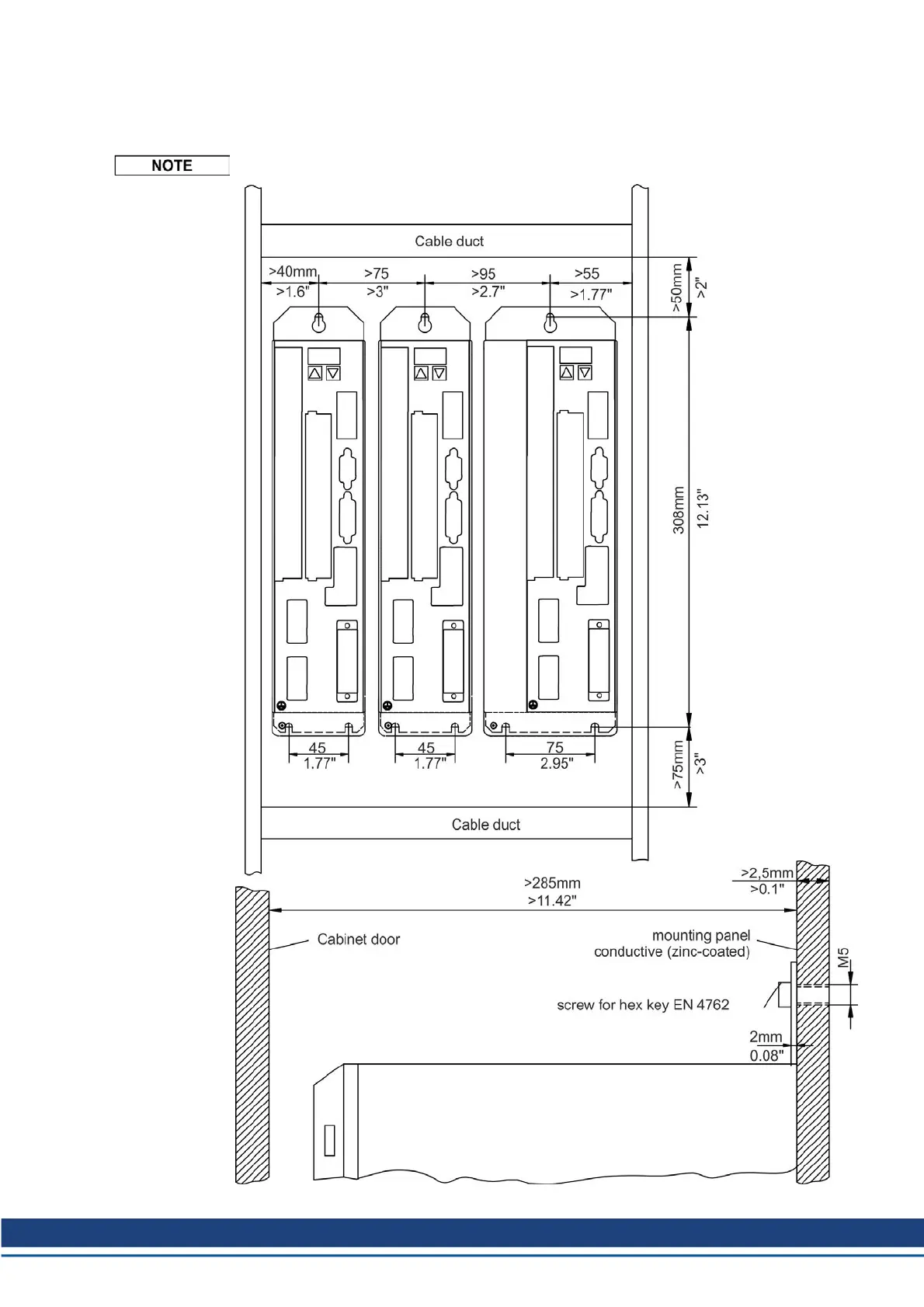

6.1.1.2 Mounting S701...S724
Material: three M5 hexagon socket screws to ISO 4762, tool required : 4 mm Allen key.
Remove the fan before mounting the servo amplifier and replace it again afterwards.
