S700 Safety Guide | 6 Appendix
6.1.1.3 Fan assembly S701...S724
The fan does not require wiring. Built-in connectors in the fan casing plug into sockets on the
bottom side of the S700.
Remove the fan before mounting the servo amplifier and replace it again afterwards.

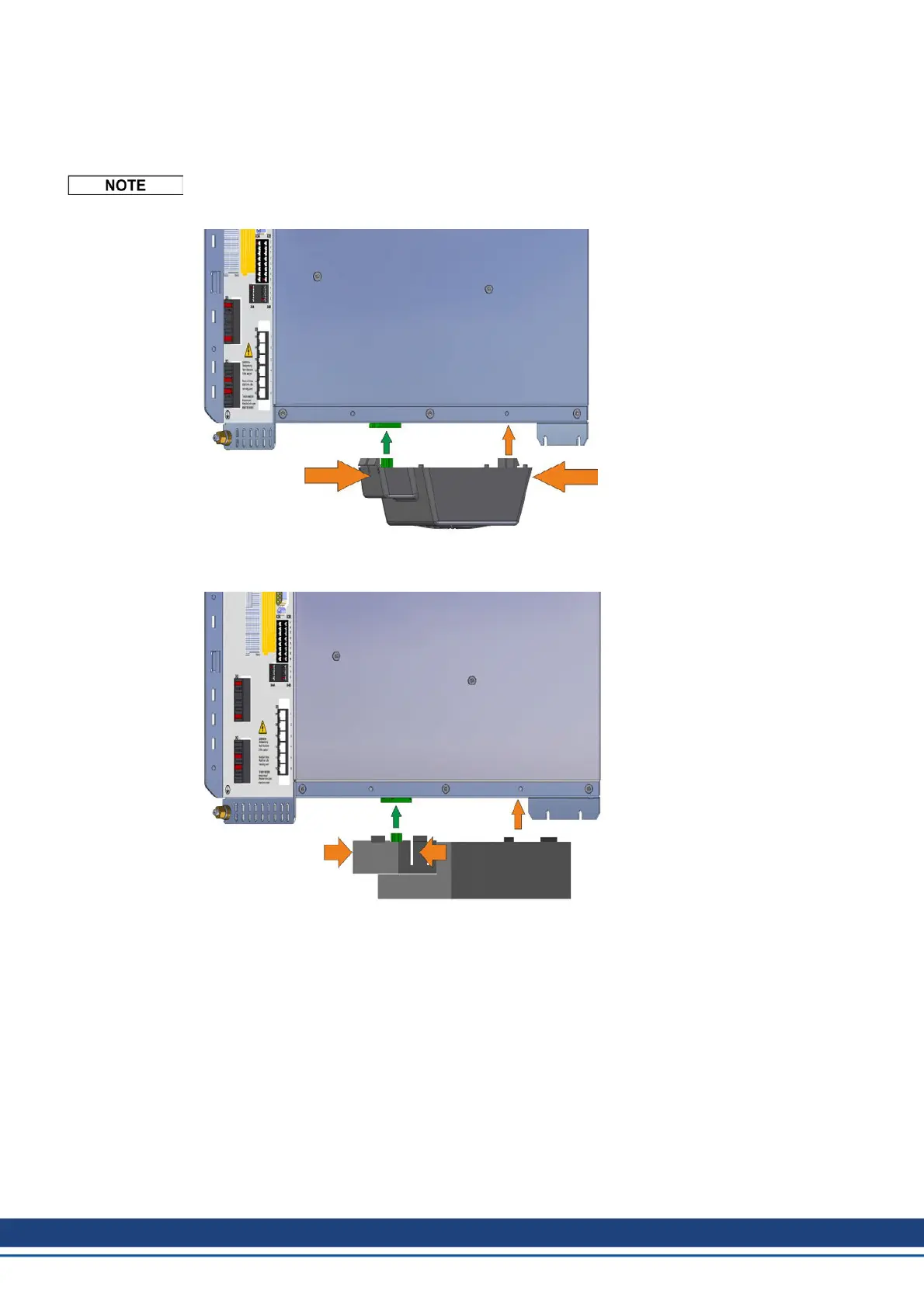

Mounting and removing the fan (models S701...712)
Removal:
Gently squeeze the fan cas-
ing together lengthwise and
pull the fan casing down.
Mounting:
Position the fan so that the
green connector is aligned
with the socket in the S700.
Push the fan onto the con-
nector until the fan casing
clicks into place. Gently
squeeze the fan casing
together lengthwise to check
that it is fully engaged.
Mounting and removing the fan (model S724)
Removal:
Gently squeeze the fan casing
together crosswise and pull
the fan casing down.
Mounting:
Position the fan so that the
green connector is aligned
with the socket in the S700.
Push the fan onto the con-
nector until the fan casing
clicks into place. Gently
squeeze the fan casing
together crosswise to check
that it is fully engaged.
186 Kollmorgen | wiki-kollmorgen.eu | February 2017
