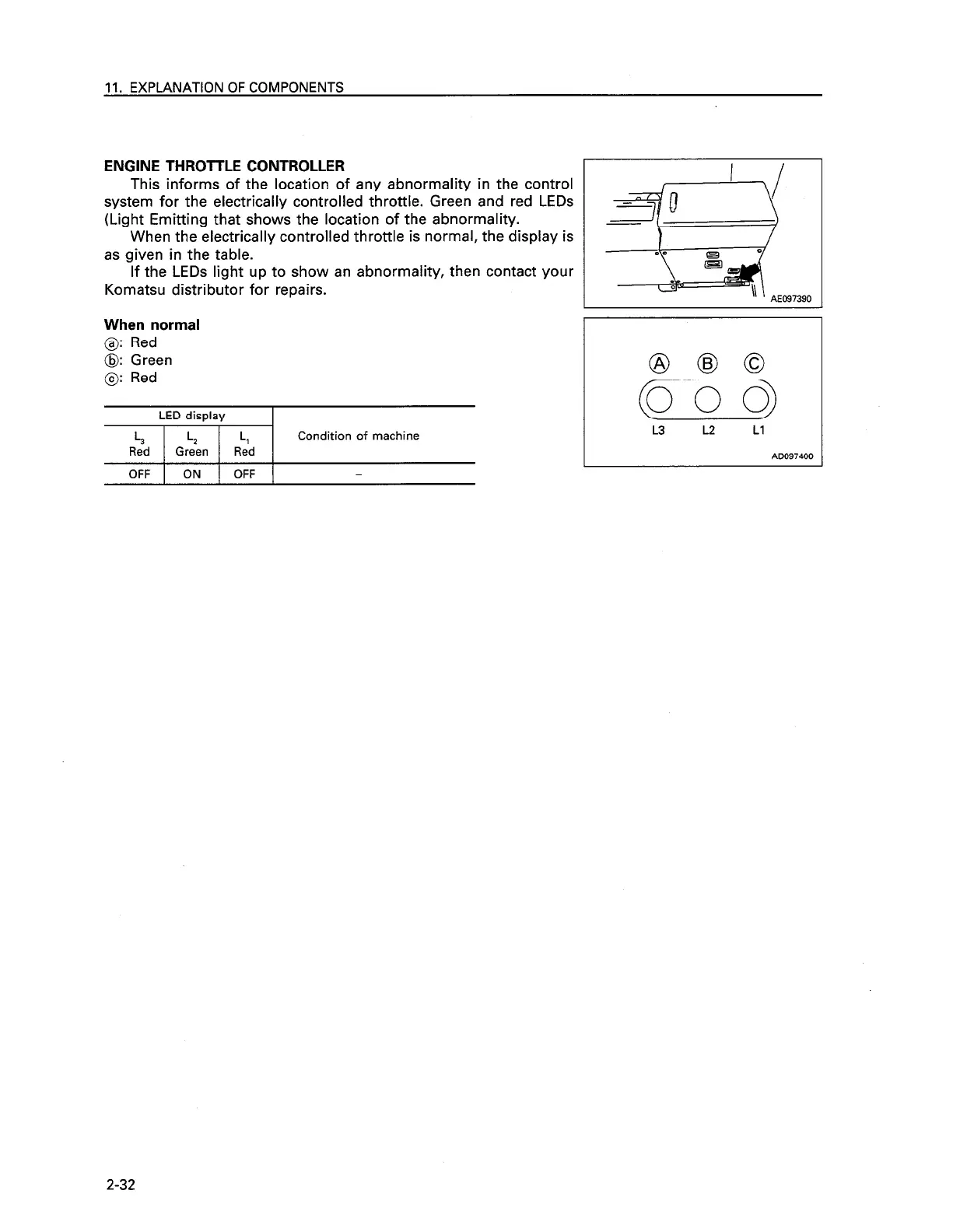

11. EXPLANATION OF COMPONENTS
ENGINE THROlTLE CONTROLLER
This informs of the location of any abnormality in the control
system for the electrically controlled throttle. Green and red LEDs
(Light Emitting that shows the location of the abnormality.
When the electrically controlled throttle is normal, the display is
as given in the table.
If the LEDs light up to show an abnormality, then contact your
Komatsu distributor for repairs.
When normal
@: Red
@I: Green
0: Red
2-32
