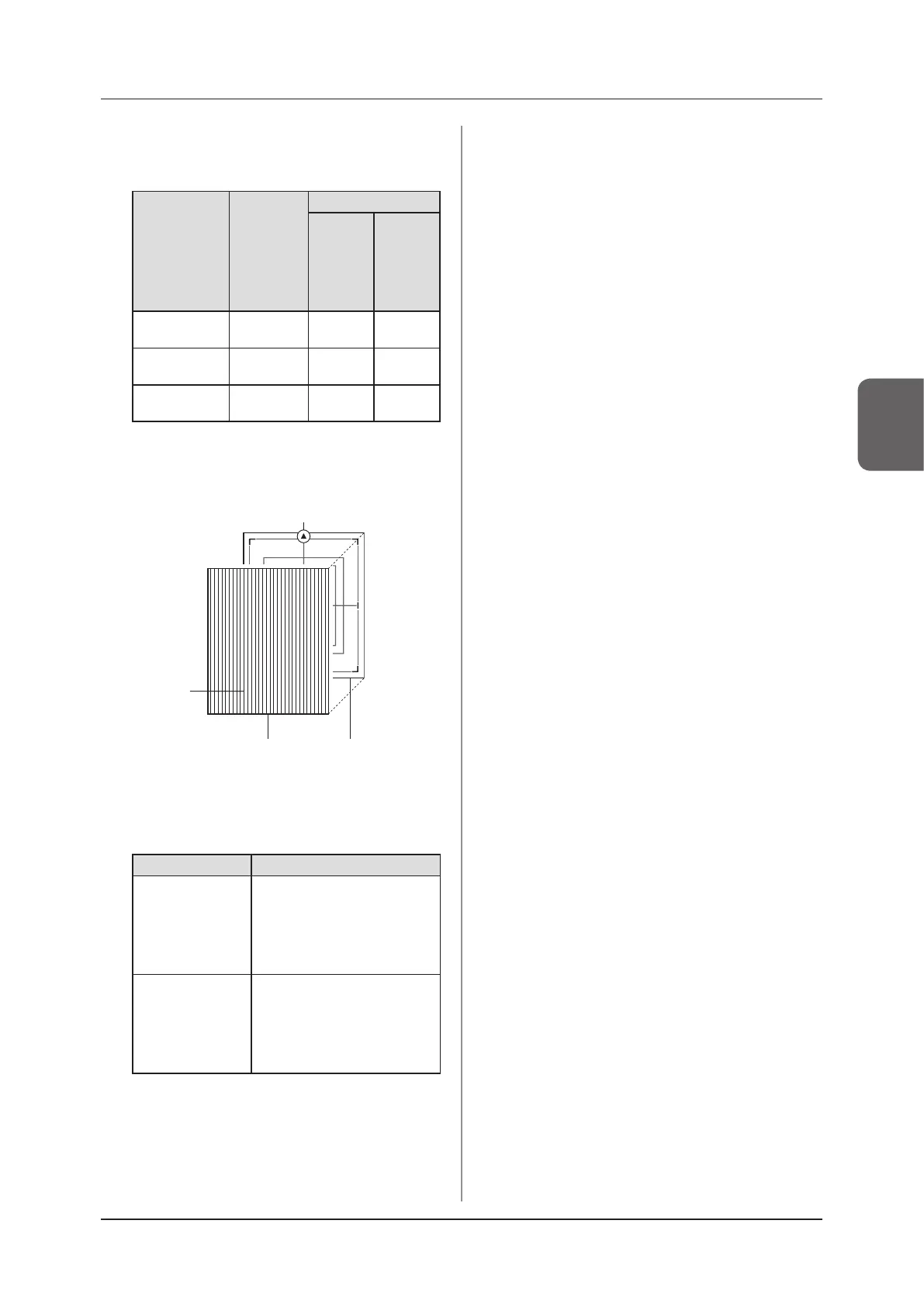

3.2 Operation of DR Detector
75
Chapter 3
• The conditions of the S value corresponding to
the maximum exposure time and the DR Detec-
tors corresponding to them are as follows.
maximum
exposure time
S value
DR Detector
AeroDR 2
1417HQ,
AeroDR 2
1417S
AeroDR 3
1417HD,
AeroDR 3
1717HD,
AeroDR 3
1012HQ
0.8 seconds or
less
2000 or less
Can be
set
Can be
set
1.8 seconds or
less
800 or less
Cannot be
set
Can be
set
4.0 seconds or
less
400 or less
Cannot be
set
Can be
set
• To use a grid in Aero Sync mode, align the orien-
tation of the triangular mark of the DR Detector
with the grid bar as shown in the following gure.
DR DetectorGrid
Grid bar
Triangular mark
• If the DR Detector is used in an orientation where
the grid bars are turned 90 degrees with respect
to the triangle mark on the DR Detector, observe
the following conditions:
DR Detector Grid density
AeroDR 1417HQ,
AeroDR 1417S,
AeroDR 1717HQ,
AeroDR 1012HQ,
AeroDR 2 1417HQ,
AeroDR 2 1417S
34 lp/cm: Angular error must be
1.7° or less
40 lp/cm: Angular error must be
1.0° or less
AeroDR 3 1417HD,
AeroDR 3 1717HD,
AeroDR 3 1012HQ
34 lp/cm: Angular error must be
1.7° or less
40 lp/cm: Angular error must be
1.0° or less
60 lp/cm: Angular error must be
1.0° or less
• Do not use additional lters for exposure dose re-
duction.
• When another system performs X-ray exposure
in the exposure room where the DR Detec-
tor is placed, the DR Detector may incorrectly
sense the X-ray exposure and transfer images.
Do not use the image processing controller to
make the DR Detector ready for exposure.
Aero Sync mode exposure when radioac-
tive substances remain
• If there are any radioactive substances remaining
in the patient's body after nuclear medicine test-
ing or some other reason, the AeroDR 2 1417HQ,
AeroDR 2 1417S, AeroDR 3 1417HD, AeroDR 3
1717HD and AeroDR 3 1012HQ may recognize
that X-rays were emitted and start image transfer.
When the image is transferred, change the X-ray
sensitive setting of the image processing control-
ler to "Large" before performing exposure.
• If you change the X-ray sensitivity to "Large" in
AeroDR 2 1417HQ and AeroDR 2 1417S, make
sure that all of the following conditions are met
before performing exposure. If you perform expo-
sure under other conditions, you may not be able
to get an image.
– On the DR Detector, set up an area (2 cm x 2
cm or larger) on which the X-rays are emitted
directly.
– Emit the X-rays onto the entire DR Detector.
– Emit the X-rays by using a tube current of 140
mA or higher or a tube voltage of 90 kV or
higher.
• If you change the X-ray sensitivity to "Large" or
"Med" in AeroDR 3 1417HD, AeroDR 3 1717HD
and AeroDR 3 1012HQ, make sure that all of the
following conditions are met before performing
exposure. If you perform exposure under other
conditions, you may not be able to get an image.
– Emit the X-rays onto the entire DR Detector.
– Emit the X-rays by using a tube current of 140
mA or higher or a tube voltage of 90 kV or
higher.
S-SRM connection
• When S-SRM connection is adopted, make sure
to perform exposure using the hand switch con-
nected to the AeroDR Interface Unit2, AeroDR
Generator Interface Unit and AeroDR Generator
Interface Unit2.
• If exposure is performed using the hand switch on
the operation panel of the X-ray device, exposure
synchronized to the this device is not possible.
