Knob [1]
LoEQFreq (Low EQ Frequencey)
[0020Hz…1000Hz]
Specifies the frequency of the low equal-
izer (shelving type).
Knob [2]
LoEQGain (Low EQ Gain)
[–15.0dB…+15.0dB]
Specifies the gain of the low equalizer.
Positive (+) values boost the region below
the cutoff frequency.
Negative (-) values cut the region below
the cutoff frequency.
Knob [3]
HiEGFreq (High EQ Frequency)
[1.00Hz…20.0kHz]
Specifies the cutoff frequency of the high
equalizer (shelving type).
28. EQ (Equalizer)

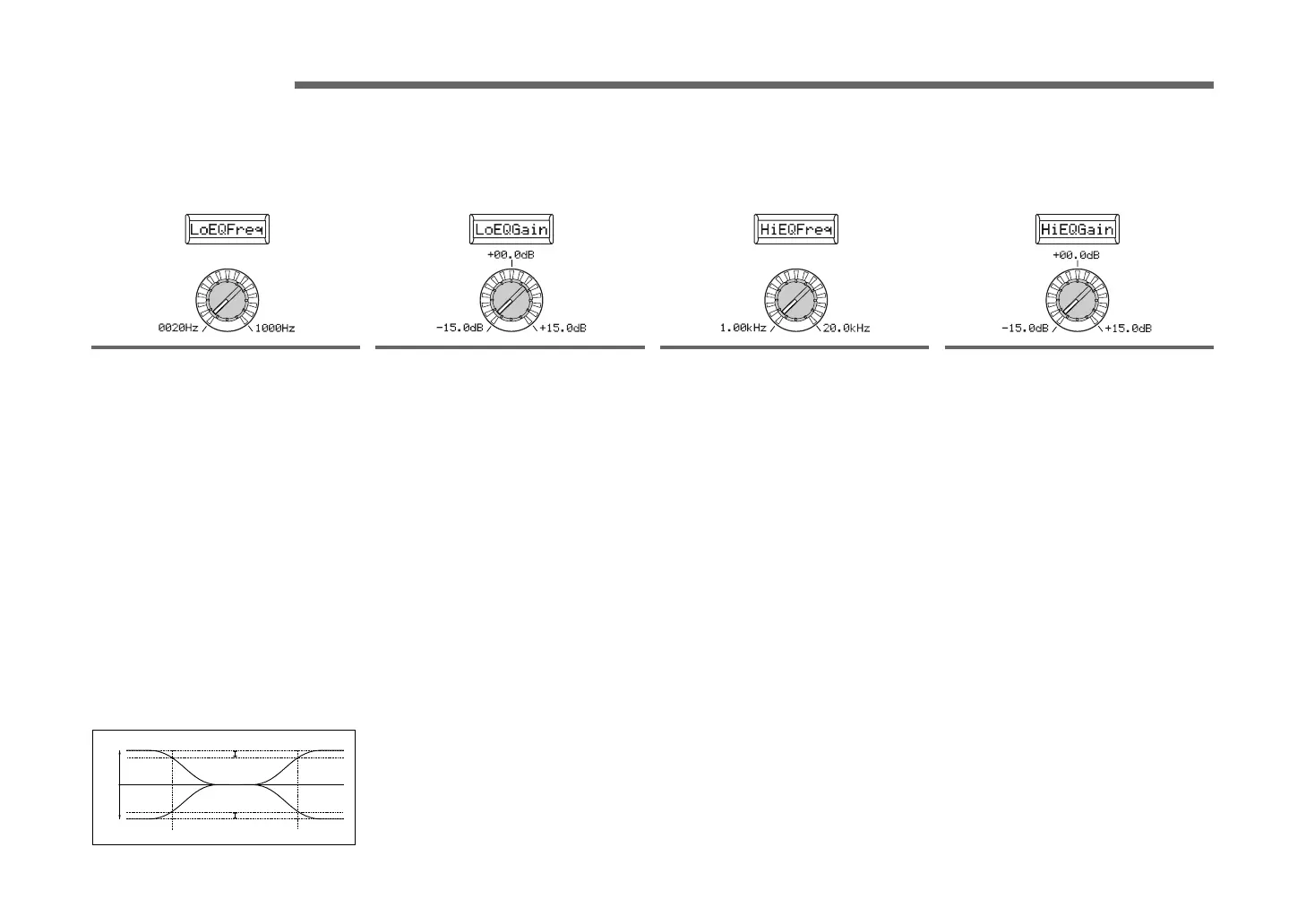

Here you can adjust the equalizer settings. The equalizer is a shelving type (☞Figure 28-1).
Knob [4]
HiEQGain (High EQ Gain)
[–15.0dB…+15.0dB]
Specifies the gain of the high equalizer.
Positive (+) values boost the region above
the cutoff frequency.
Negative (-) values cut the region above the
cutoff frequency.
Figure 28-1: EQ
3dB
3dB
Low EQ Frequency
High EQ Frequency
0dB
+Gain
–Gain
EQ
