60
Knob [2]
Level1…Level16
[000...127]
Specifies the output level of the selected
channel.

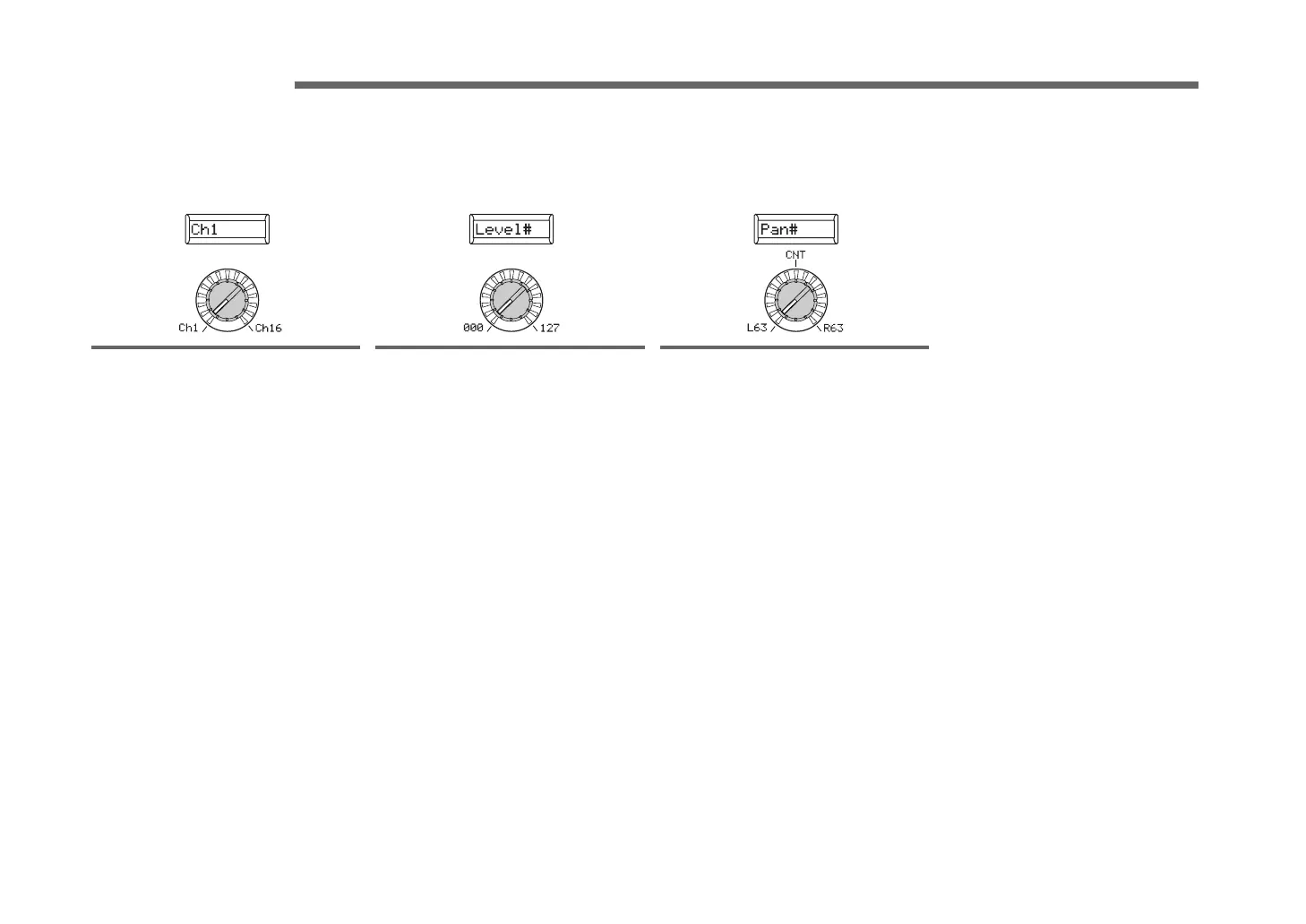

Knob [1]
Channel Select
[Ch1…Ch16]
Selects one of the sixteen filter channels for
editing.
39. CH LEVEL /P
AN
(Channel Level/Channel Panpot)
These parameters set the level and pan for each of the sixteen band-pass filter channels (Synthesis Filter) of the carrier (
☞
p.55).
Knob [3]
Pan1…Pan16
[L63…CNT…R63]
Specifies the panning of the selected chan-
nel.
65
67
