12 Servicing
12.5 Replacing the ball bearing and screw set
1
3
7
2

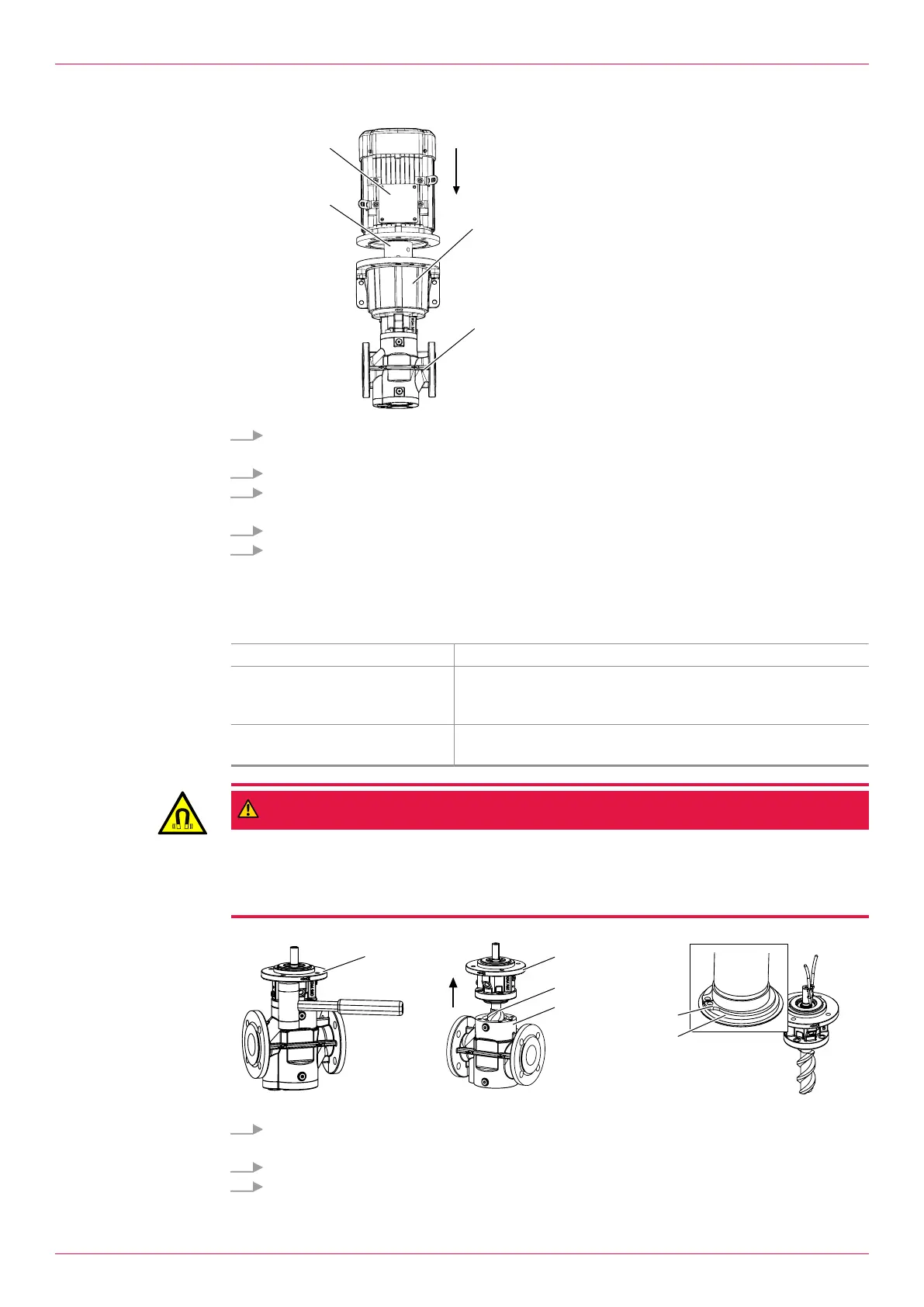

6. Fixate the pump1 with suitable measures, so that the pump cannot tilt during mounting of the
motor.
7. Attach the hoisting equipment to the motor2 and position it above the pump.
8. Place the motor slowly on the pump bracket3 of the pump. Ensure that the outer rotor7 does not
strike the containment can.
9. Tighten the socket screwswith torque.
10. Do not remove the protective cover until just before reconnecting the pump to the pipe system.
12.5 Replacing the ball bearing and screw set
12.5.1 Removing the ball bearing and screw set
Personnel qualification: o Fitter
Personal protective equipment: o Work clothing
o Protective gloves
o Safety boots
Aids: o Plastic hammer
o Extractor
DANGER
Magnetic field.
Risk of death for persons with cardiac pacemaker, metallic implant or neurostimulator.
► Under no circumstances may persons with cardiac pacemakers, metallic implant or
neurostimulator perform work on the pump/pump unit.
4
4
2
1
8
7
1. Remove the socket screws at the pump flange4 and remove the pump flange with light "re-
bound" blows.
2. Pull the withdrawable unit (main screw2 and the pump flange4) out of the pump housing1.
3. Remove the circlip8 and the supporting ring7.
