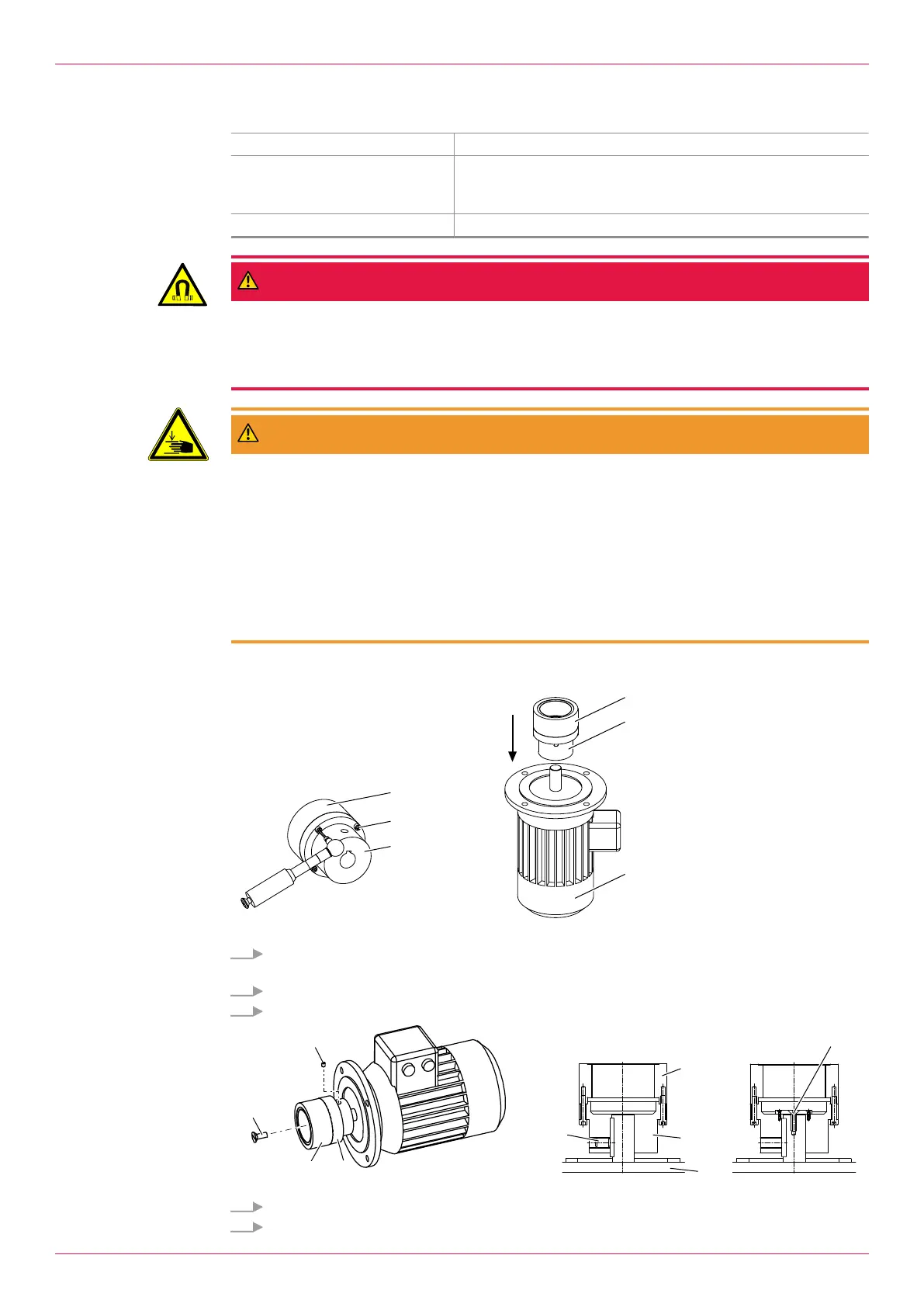

KRAL KV - Installing the Outer Rotor

12 Servicing
12.4 Replacing the magnetic coupling
12.4.4 Installing the outer rotor
Personnel qualification: o Fitter
Personal protective equipment: o Work clothing
o Protective gloves
o Safety boots
Aids: o Hoisting equipment
DANGER
Magnetic field.
Risk of death for persons with cardiac pacemaker, metallic implant or neurostimulator.
► Under no circumstances may persons with cardiac pacemakers, metallic implant or
neurostimulator perform work on the pump/pump unit.
WARNING
Danger of crushing when assembling motor and pump.
When the motor approaches the pump, high magnetic forces can produce sudden collisions and thus
injuries to hands or fingers.
► Two persons are required for the assembly.
► Use suitable hoisting equipment (for example chain hoist).
► Carry out assembly in the vertical position as far as possible.
► Fixate the pump with suitable measures.
► When the motor approaches the pump, ensure that hands/fingers are not positioned between mo-
tor and pump.
Notice Outer rotor support and outer rotor can be installed more easily if they are heated to 80°C.
7
5
2
7
8
5
1. Carefully clean the outer rotor7 with compressed air. Tighten the socket screws8 between the
outer rotor and outer rotor support5 with torque Ä Appendix,Page58.
2. Clean and grease the shaft end of the motor.
3. Place the outer rotor support with outer rotor on the shaft end of the motor.
4
5
6
7
7
5
2
6 4
4. Ensure that the shaft end of the motor is flush with the front surface of the outer rotor support.
5. Depending on the motor size tighten the threaded pin6 or the countersunk screw4 with torque.
34
