KRAL KV - Maintenance Kit Magnetic Coupling KF;KV 851 - 1301

16 Spare parts
16.2 Maintenance kits

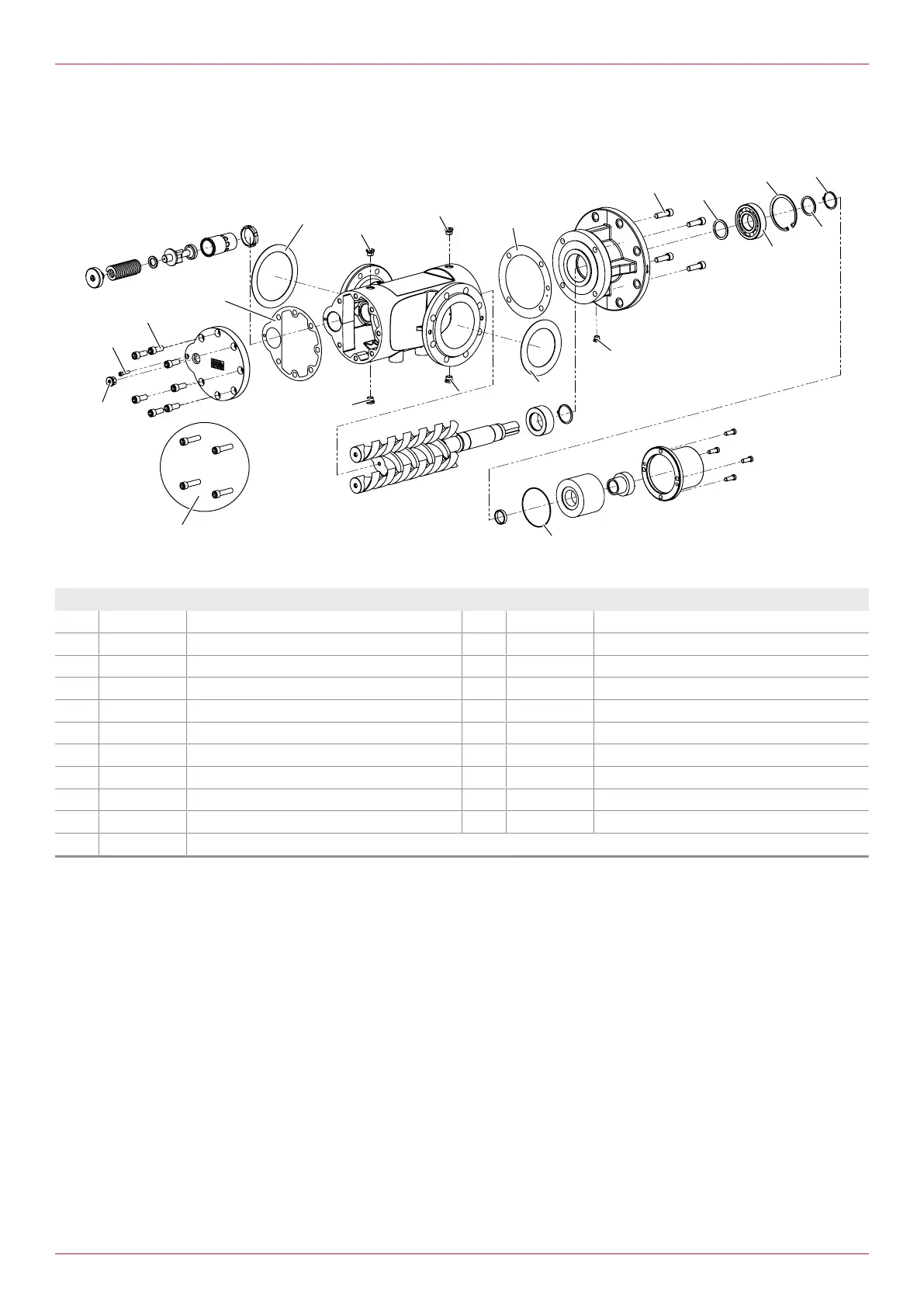

16.2.2 Maintenance kit magnetic coupling KF/KV851–1301
Notice The maintenance kit contains only the numbered parts and is only supplied complete.
739
165.3
914.9*
471.2
056
817
729.7
165.2
165.2
471.3
055
914.1
165.2
729.5
165.2
729.6
729.4
165.1
914.2
914.8
Qty. Item No. Part Qty. Item No. Part
1 055 Supporting ring 1 729.6 Flat gasket, suction flange
1 056 Supporting ring 1 729.7 Flat gasket, pressure flange
1 165.1 Screw plug 1 739 O-ring
4 165.2 Screw plug 1 817 Ball bearing
1 165.3 Screw plug 4 914.1 Socket screw
1 471.2 Circlip 4 914.2 Socket screw
1 471.3 Circlip 1 914.8 Socket screw
1 729.4 Flat gasket 4 914.9* Socket screw
1 729.5 Flat gasket 1 Mounting sleeve ball bearing
* Only for Type KV: replaces 914.2
Tab.21: Maintenance kit magnetic coupling KF/KV851–1301
