KRAL KV - 16.2 Maintenance kits

16 Spare parts
16.2 Maintenance kits
16.2 Maintenance kits

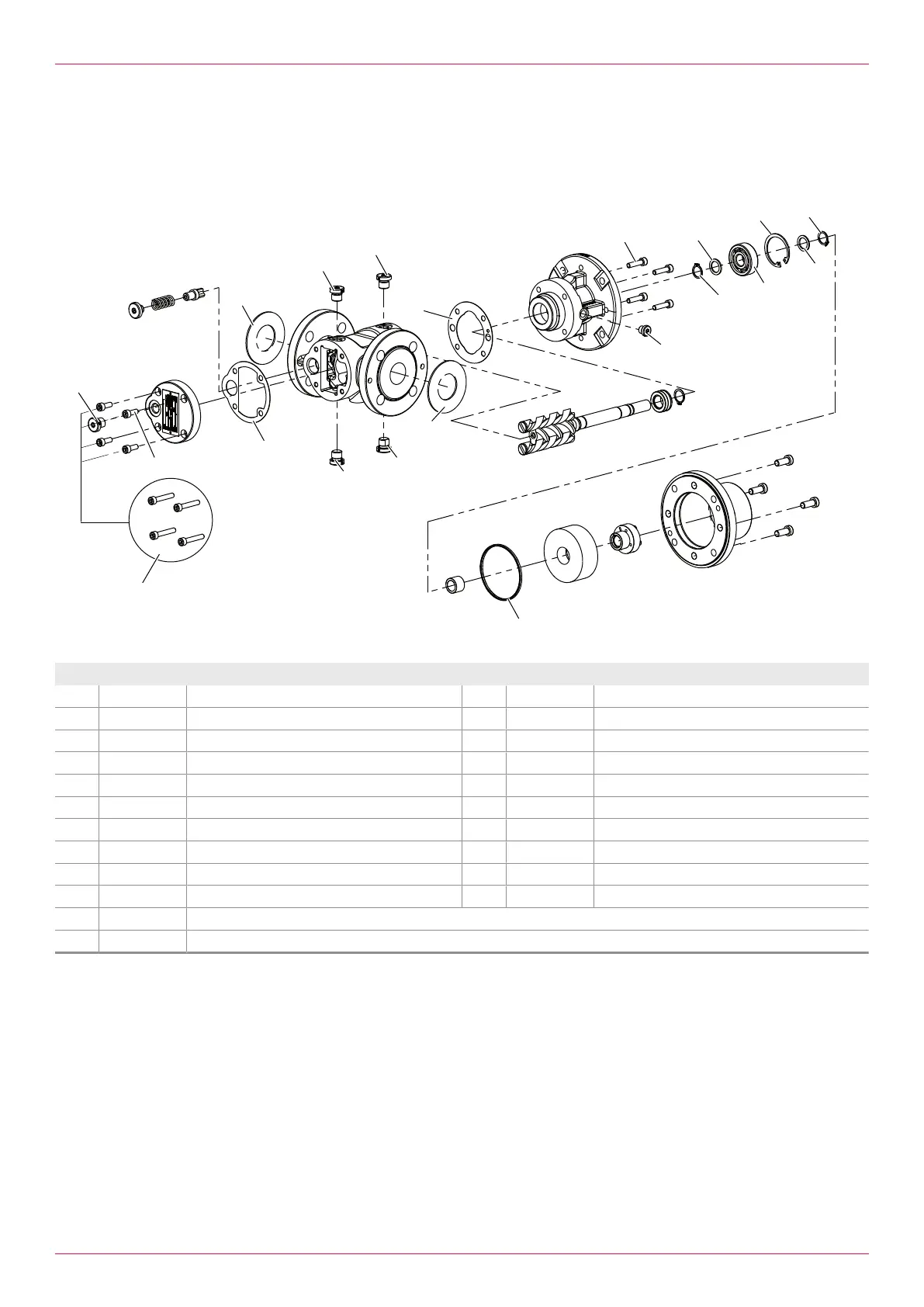

16.2.1 Maintenance kit magnetic coupling KF/KV5–660
Notice The maintenance kit contains only the numbered parts and is only supplied complete.
165.3
914.9**
471.2
056
817
471.2*
729.7
165.2
165.2
471.3
055*
914.1
729.5
165.2
165.2
729.6
729.4
165.1
914.2
739
Qty. Item No. Part Qty. Item No. Part
1 055* Supporting ring 1 729.5 Flat gasket
1 056 Supporting ring 1 729.6 Flat gasket, suction flange
1 165.1 Screw plug 1 729.7 Flat gasket, pressure flange
4 165.2 Screw plug 1 739 O-ring
1 165.3 Screw plug 1 817 Ball bearing
1 471.2 Circlip 4 914.1 Socket screw
1 471.2* Circlip 4 914.2 Socket screw
1 471.3 Circlip 4 914.9** Socket screw
1 729.4 Flat gasket 1 Mounting sleeve ball bearing
* Only for Size5–20
** Only for Type KV: replaces 914.2
Tab.20: Maintenance kit magnetic coupling KF/KV5–660
