KRAL KV - Repair Kit Overflow Valve KF;KH;KV 1500 - 1700

16 Spare parts
16.3 Repair kits

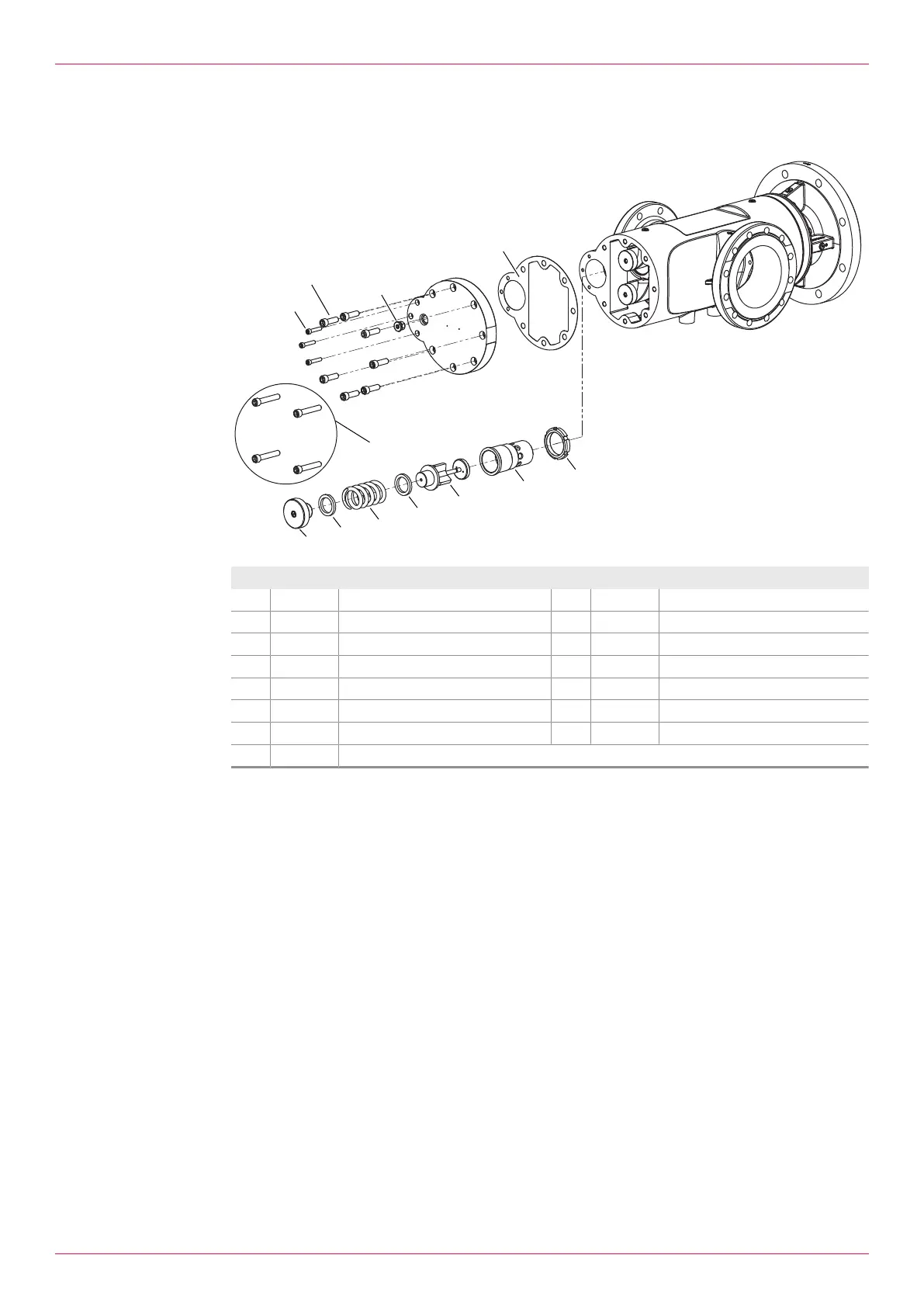

16.3.3 Repair kit overflow valve KF/KH/KV1500–1700
Notice The repair kit contains only the numbered parts and is only supplied complete.
164
729.4
914.5
064
501
064
305
629
306
914.2
165.1
914.6*
Qty. Item No. Part Qty. Item No. Part
2 064 Supporting ring 1 629 Valve housing
1 164 Adjusting screw 1 729.4 Flat gasket
1 165.1 Screw plug 7 914.2 Socket screw
1 305 Valve body 3 914.5 Socket screw
1 306 Groove nut 4 914.6* Socket screw
1 501 Pressure spring
* Only for Type KV: replaces 4 pieces 914.2
Tab.27: Repair kit overflow valve KF/KH/KV1500–1700
