KRAL KV - Maintenance Kit Magnetic Coupling KF;KV 2200 - 2900

16 Spare parts
16.2 Maintenance kits
16.2.4 Maintenance kit magnetic coupling KF/KV2200–2900
Notice The maintenance kit contains only the numbered parts and is only supplied complete.

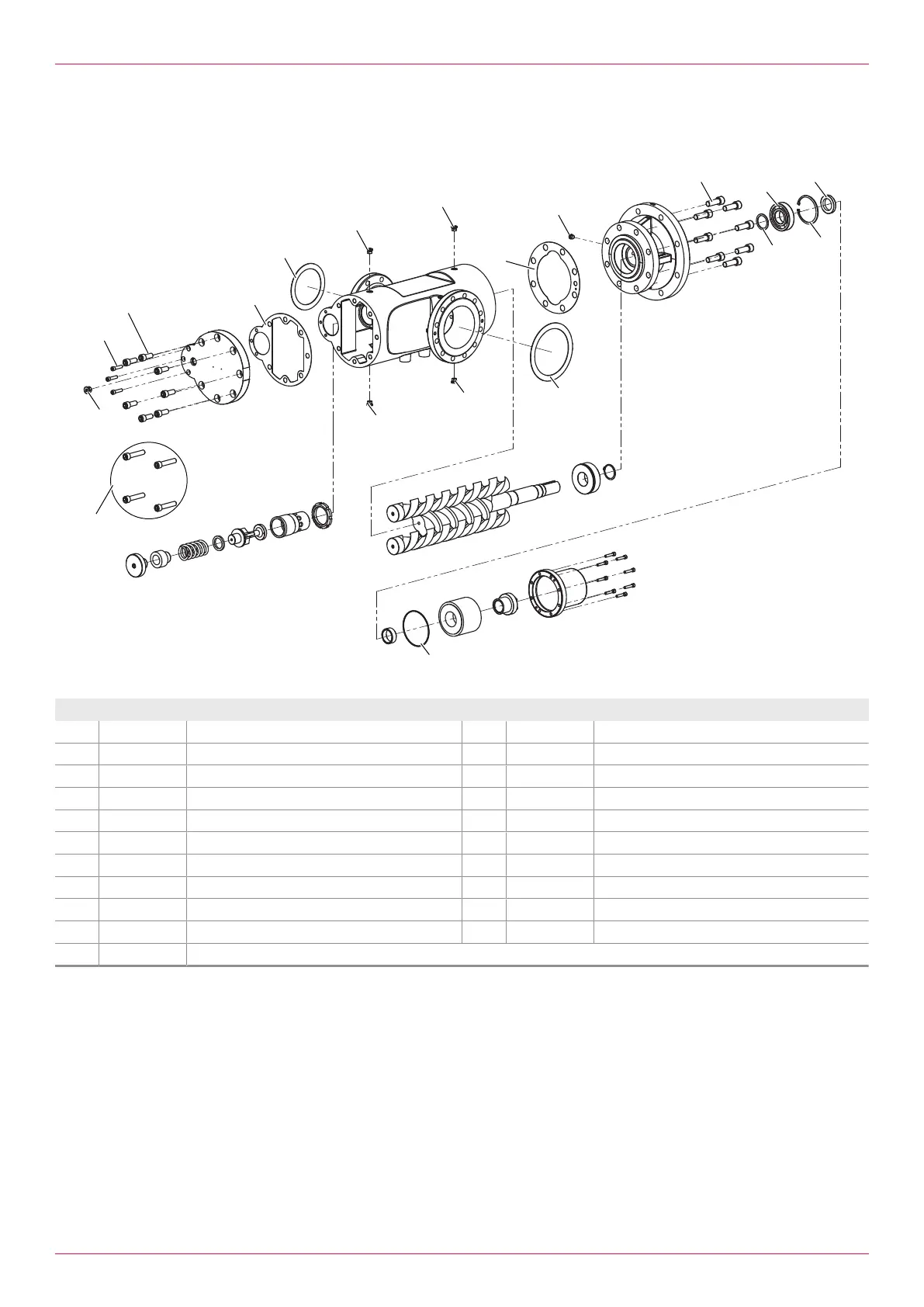

739
729.7
914.9*
057
471.3
055
165.2
165.2
817
914.1
165.3
729.5
165.2
165.2
729.6
729.4
165.1
914.8
914.2
Qty. Item No. Part Qty. Item No. Part
1 055 Supporting ring 1 729.7 Flat gasket, pressure flange
1 057 Threaded ring 1 739 O-ring
1 165.1 Screw plug 1 817 Ball bearing
4 165.2 Screw plug 8 914.1 Socket screw
1 165.3 Screw plug 7 914.2 Socket screw
1 471.3 Circlip 3 914.8 Socket screw
1 729.4 Flat gasket 4 914.9* Socket screw
1 729.5 Flat gasket 1 Mounting sleeve ball bearing
1 729.6 Flat gasket, suction flange
* Only for Type KV: replaces 914.2
Tab.23: Maintenance kit magnetic coupling KF/KV2200–2900
