Kramer VP-440

Kramer Electronics Ltd.
VP-440 – Connecting the VP-440
9

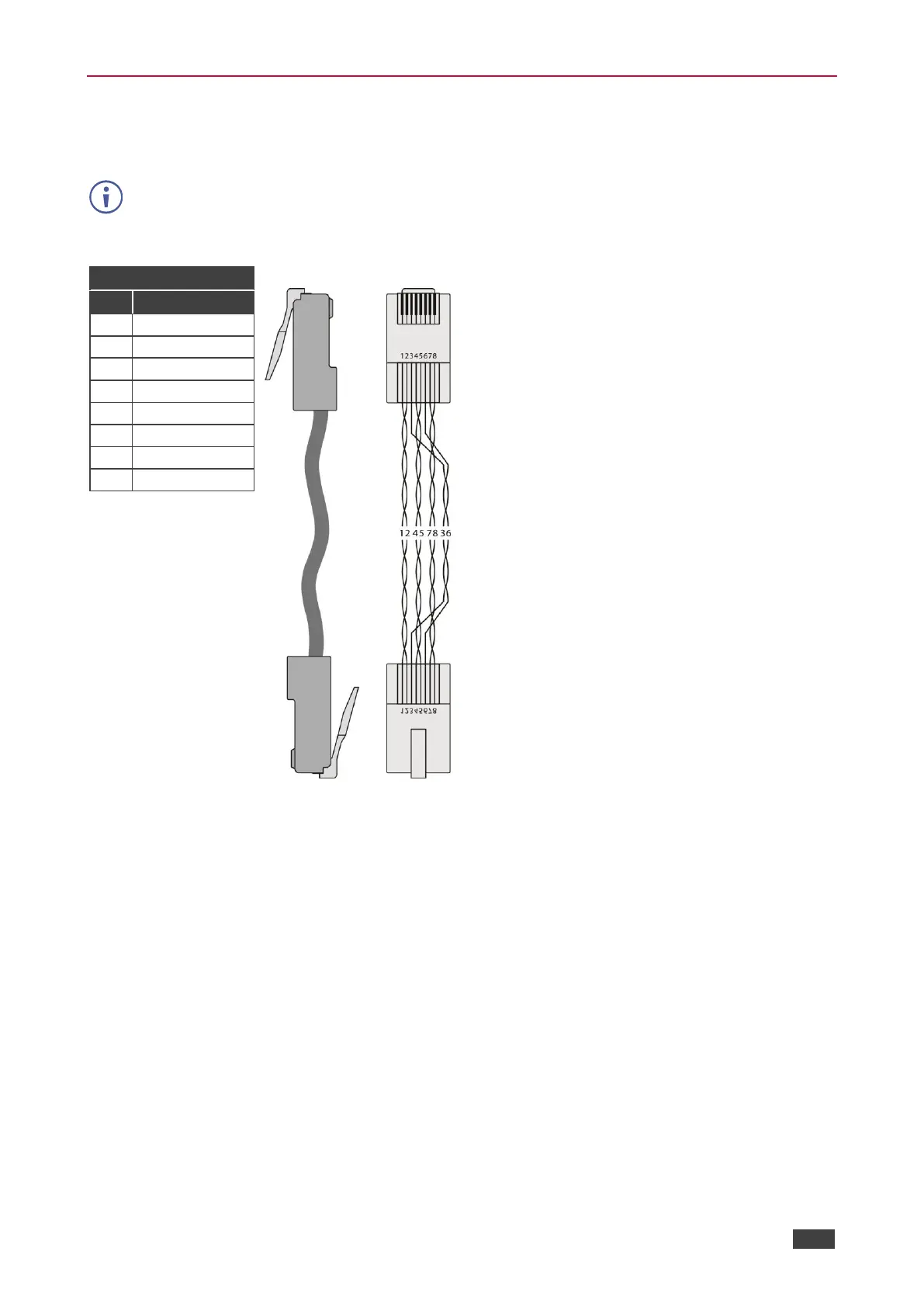

Wiring the TP LINE OUT RJ-45 Connector
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.
EIA /TIA 568B
Figure 6: TP PINOUT
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
