VP-440 – Defining the VP-440 Presentation Switcher/Scaler
4
Defining the VP-440 Presentation
Switcher/Scaler
This section defines the VP-440.

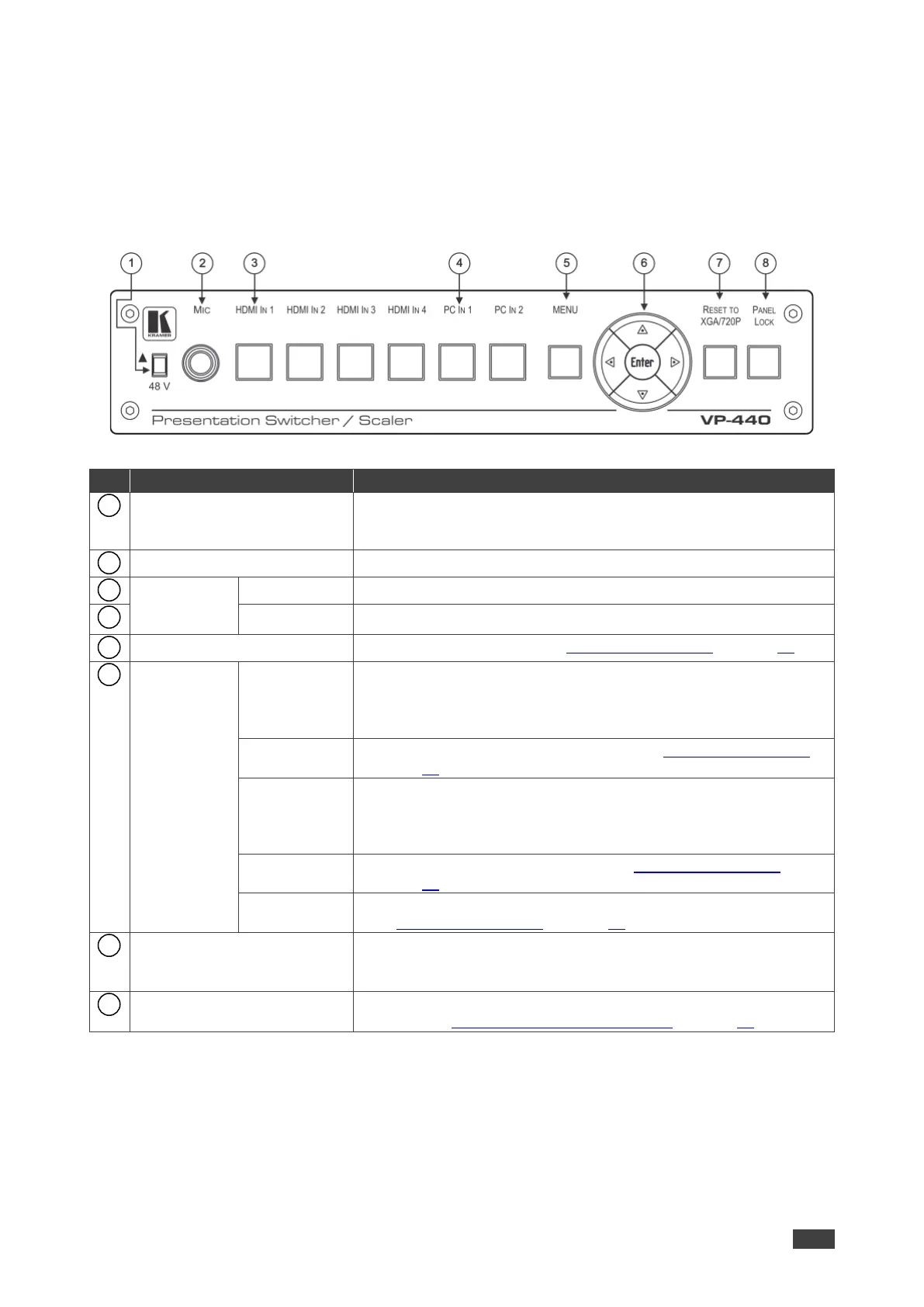

Figure 1: VP-440 Presentation Switcher/Scaler Front Panel
#
Feature
Function
48 V () Slide Switch
Slide up (48V) to select a condenser type microphone; slide down
to select a dynamic type microphone (we recommend that you slide
down if a microphone is not connected to the VP-440).
MIC 6.3mm Jack
Connect to the microphone source.
Input
Selector
Buttons
HDMI IN
Press to select the HDMI input (from 1 to 4).
PC IN
Press to select the computer graphics input (from 1 to 2).
MENU Button
Displays the OSD menu (see Using the OSD Menu on page 14).
Navigation
Buttons

Press to decrease numerical values or select from several
definitions.
When not within the OSD menu mode, press to reduce the output
volume.

Press to move up the menu list values (see Using the OSD Menu
on page 14).

Press to increase numerical values or select from several
definitions.
When not within the OSD menu mode, press to increase the output
volume.

Press to move down the menu list (see Using the OSD Menu
on page 14).
ENTER
Press to accept changes and change the SETUP parameters
(see Using the OSD Menu on page 14).
RESET TO XGA/720p Button
Press to reset the video resolution to XGA or 720p.
Press and hold for about 5 seconds to toggle between switching to
XGA or 720p.
PANEL LOCK Button
Press and hold for about 10 seconds to lock/unlock the front panel
buttons (see Locking the Front Panel Buttons on page 13) .
1
2
3
4
5
6
7
8
