VP-440 – Connecting the VP-440
Always switch off the power to each device before connecting it to your VP-440. After
connecting your VP-440, connect its power and then switch on the power to each device.
You do not have to connect all the inputs and outputs, connect only those that are required.

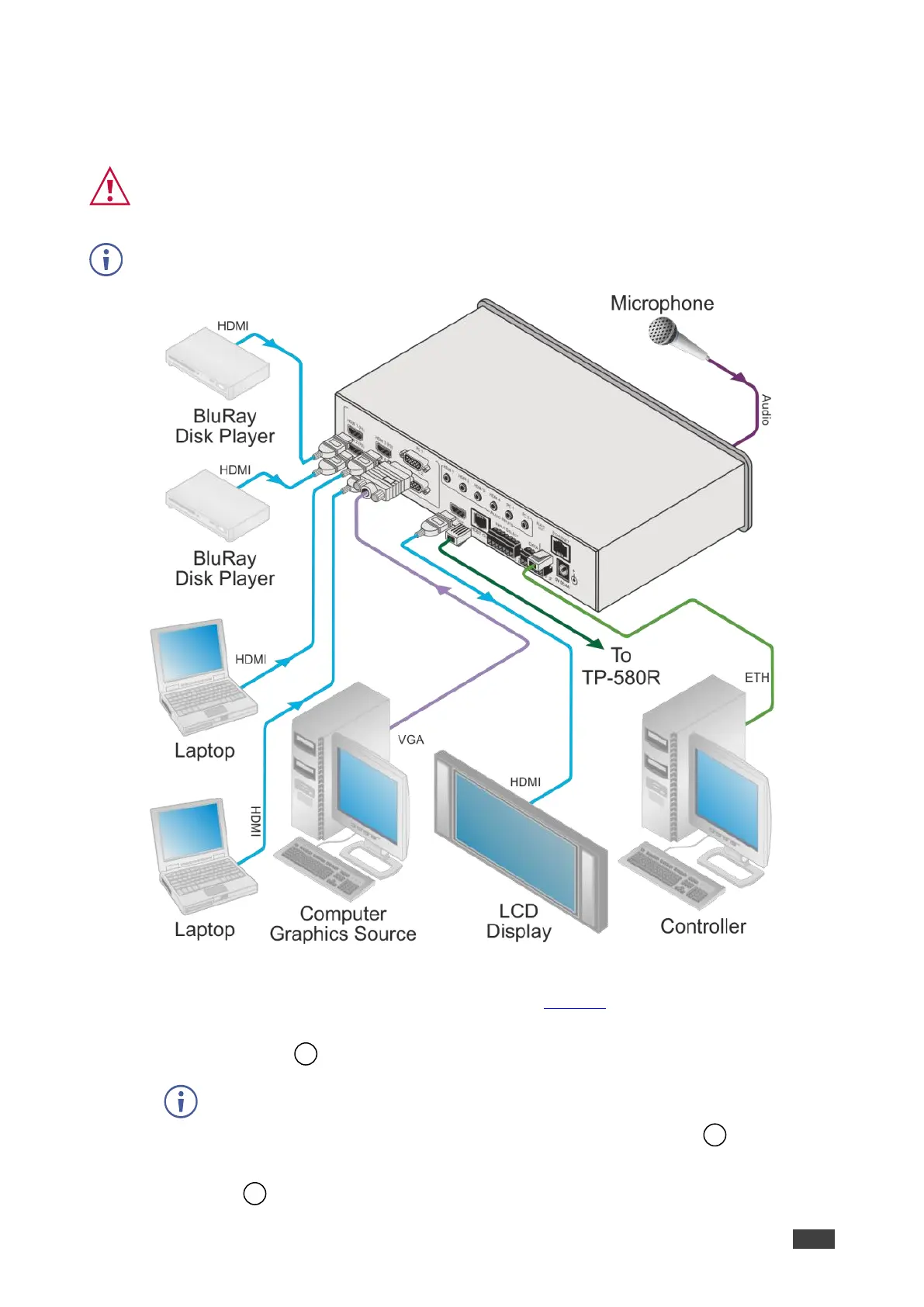

Figure 3: Connecting the VP-440 Presentation Switcher / Scaler
To connect the VP-440, as illustrated in the example in Figure 3, do the following:
1. Connect an HDMI source (for example, a Blu-ray disk player) to the HDMI 1 (H1) VIDEO
INPUT connector (from 1 to 4).
Alternatively, you can connect the DVI connector on the DVD player to the HDMI
connector on the VP-440 via a DVI-HDMI adapter. When using this adapter, you
can connect the audio signal via the 3.5mm mini jack connector .
2. Connect a computer graphics source to the PC 1 15-pin HD VIDEO INPUT
connector (from 1 to 2).
