VP-440 – Connecting the VP-440
11
Connecting to the VP-440 via RS-232
The VP-440 features two RS-232 ports:
• RS-232 DATA (Tx, Rx, GND) to pass data to and from the machine that is connected to
the HDBT connector.
• RS-232 CTRL (Tx, Rx, GND) to control the VP-440 or to control an external device (e.g.,
a monitor).
To connect to the VP-440 via RS-232:
• Connect the RS-232 terminal block connector on the VP-440 to the RS-232 9-pin D-sub
port on your PC/controlled device

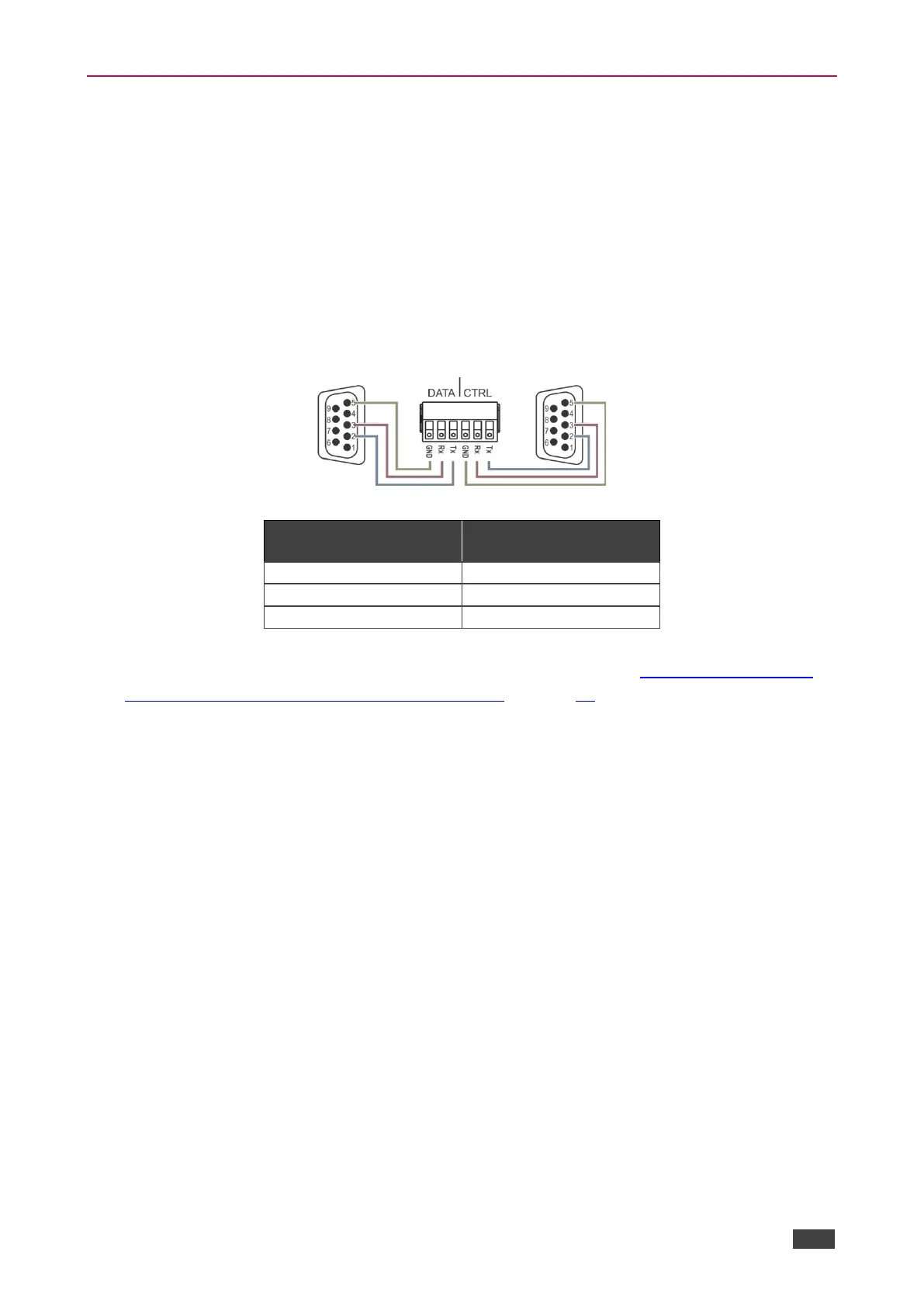

Figure 8: RS-232 Pinout
Connect this PIN on the
terminal block connector
To this PIN on the 9-pin
D-sub Connector
Tx
PIN 2
Rx
PIN 3
GND
PIN 5
For more information on controlling the input buttons externally, see Controlling an External
Device via the RS-232 Terminal Block Connectors on page 35.
