Kramer VP-440X User Manual

Kramer Electronics Ltd.
VP-440X – Defining VP-440X 4K Presentation Switcher / Scaler
6

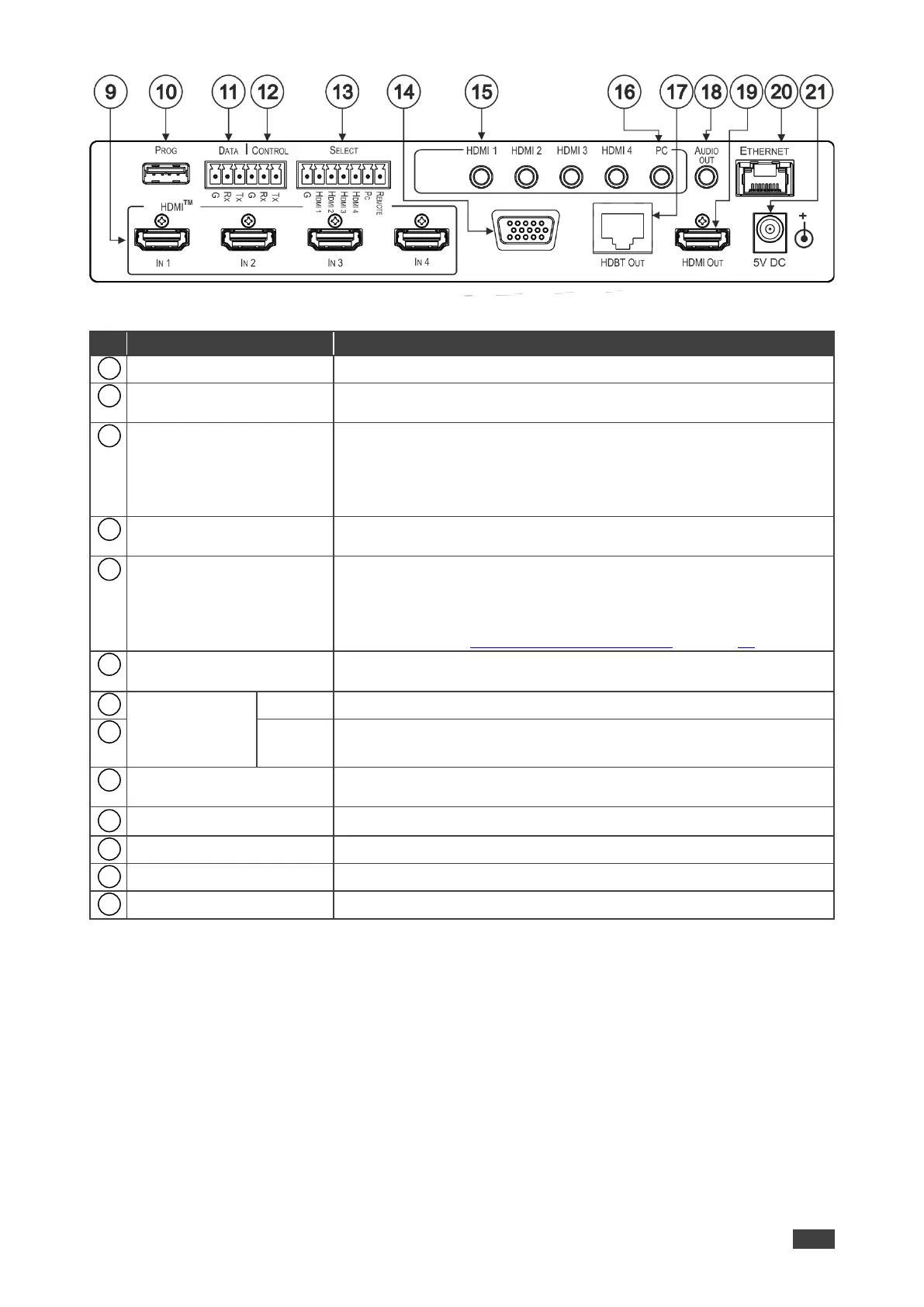

Figure 2: VP-440X 4K Presentation Switcher / Scaler Rear Panel
#
Feature
Function
HDMI™ IN Connectors
Connect to an HDMI source (from 1 to 4).
PROG USB Type A
Connector
Use to upgrade the firmware.
DATA (Tx, Rx, GND)
Terminal Block Connectors
Connect to a PC to Extend RS-232 signals via the HDBT OUT port to
control peripheral devices that are connected to the HDBT receiver
(for example, a projector connected to TP-780Rxr) and/or control a
source (e.g. a Blu-ray player) using an RS-232 controller at the
receiver.
CONTROL (Tx, Rx, GND)
Terminal Block Connectors
Connect to a PC or serial controller to control the VP-440X or control
the output display (configurable).
SELECT 7-pin Terminal
Block Connector
HDMI 1 to HDMI 4 and PC: connect to contact closure switches (by
momentary contact between the desired pin and G pin) to select an
input.
REMOTE: connect the pin to G to turn on/off the display or the device
(configurable, see Configuring the REMOTE Pin on page 18).
PC IN 15-pin HD
Connector
Connect to the computer graphics (VGA) source.
AUDIO INPUT
Unbalanced
Stereo 3.5 Mini
Jack
HDMI™
Connect to the analog audio HDMI source (from 1 to 4).
PC
Connect to the analog audio computer graphics (VGA) source.
HDBT OUT RJ-45
Connector
Connect to an HDBT receiver (for example, TP-780Rxr).
AUDIO OUT 3.5 Mini Jack
Connect to an unbalanced stereo audio acceptor.
HDMI OUT Connector
Connect to the HDMI acceptor.
ETHERNET Connector
Connects to the PC or other controller through computer networking.
5V DC
+5V DC connector for powering the unit.
9
10
11
12
13
14
15
16
17
18
19
20
21

Kramer VP-440X Specifications

General

Control type	Buttons
Product color	Black
EDID management	Yes
Housing material	Aluminum
Scaled resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 768, 1280 x 800, 1360 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160
HDMI in	4
RJ-45 ports quantity	2
Number of HDMI outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDCP version	1.4/2.2
Supported frame rate	24, 25, 30, 50, 60 fps
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Supported chroma subsampling	4:4:4
Power consumption (typical)	18 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	212 mm
Package width	351 mm
Package height	72 mm
Package weight	1600 g

Weight and Dimensions

Depth	163 mm
Width	214.6 mm
Height	43.6 mm
Weight	1100 g
