VP-440X – Defining VP-440X 4K Presentation Switcher / Scaler
5
Defining VP-440X 4K
Presentation Switcher / Scaler
This section defines VP-440X.

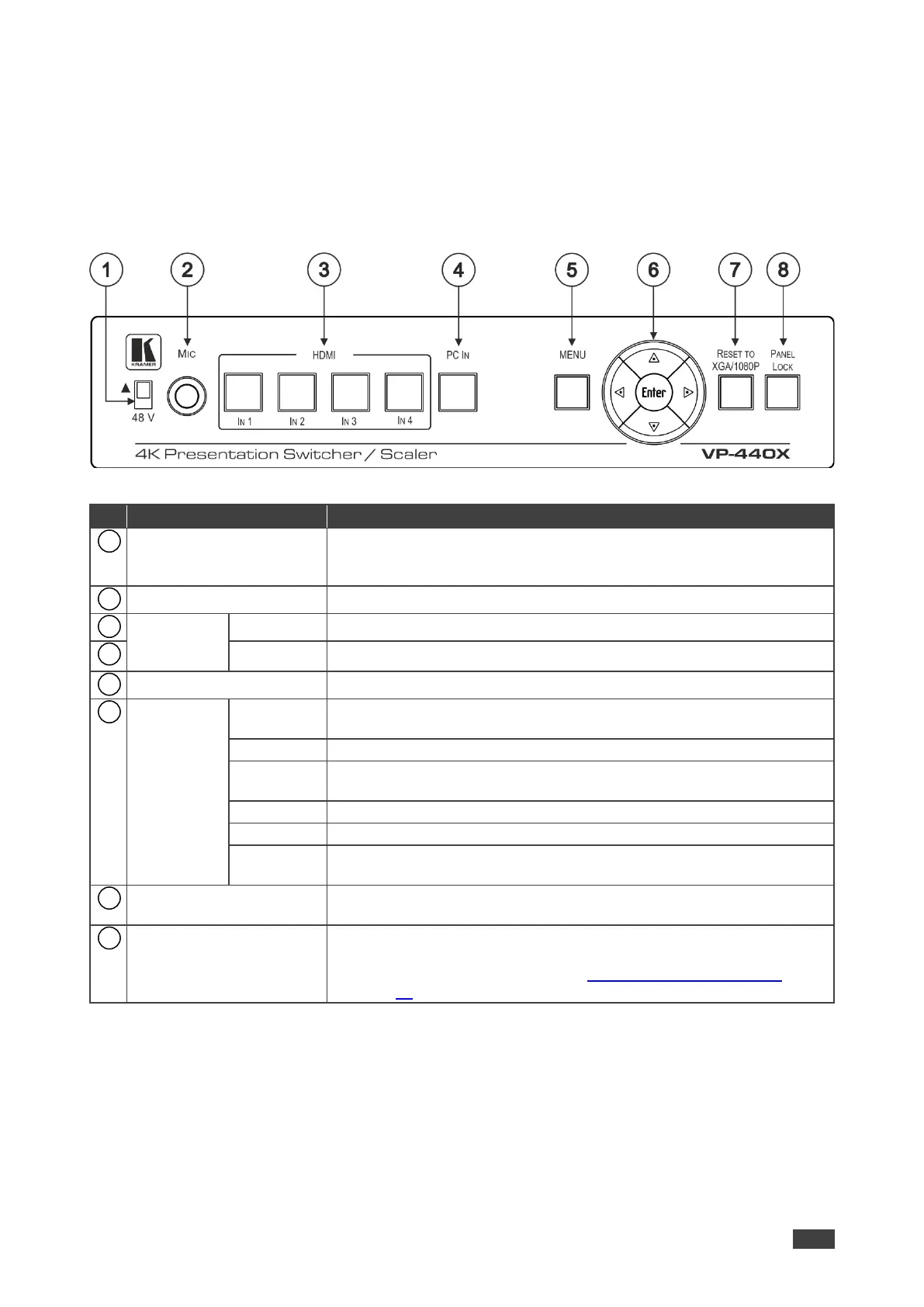

Figure 1: VP-440X 4K Presentation Switcher / Scaler Front Panel
#
Feature
Function
48 V () Slide Switch
Slide up (48V) to select a condenser type microphone; slide down to
select a dynamic type microphone (we recommend that you slide down
if a microphone is not connected to the VP-440X).
MIC 6.3mm Jack
Connect to the microphone source.
Input
Selector
Buttons
HDMI IN
Press to select the HDMI input (from 1 to 4).
PC IN
Press to select the computer graphics input.
MENU Button
Displays the OSD menu.
Menu
Navigation
Buttons

Press to decrease numerical values or select from several definitions.
When not in the OSD menu, press to reduce the output volume.

Press to move up the menu list values.

Press to increase numerical values or select from several definitions.
When not in the OSD menu, press to increase the output volume.

Press to move down the menu list.
Enter
Press to accept changes and change the SETUP parameters.

Press to decrease numerical values or select from several definitions.
When not in the OSD menu, press to reduce the output volume.
RESET TO XGA/1080P
Button
Press and hold for about 5 seconds to toggle the output resolution
between XGA and 1080p, alternatively.
PANEL LOCK Button
Press and hold for about 5 seconds to lock/unlock the front panel
buttons.
To set Lock button functionality, see Locking Front Panel Buttons
on page 18.
1
2
3
4
5
6
7
8

Kramer VP-440X Specifications

General

Control type	Buttons
Product color	Black
EDID management	Yes
Housing material	Aluminum
Scaled resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 768, 1280 x 800, 1360 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160
HDMI in	4
RJ-45 ports quantity	2
Number of HDMI outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDCP version	1.4/2.2
Supported frame rate	24, 25, 30, 50, 60 fps
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Supported chroma subsampling	4:4:4
Power consumption (typical)	18 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	212 mm
Package width	351 mm
Package height	72 mm
Package weight	1600 g

Weight and Dimensions

Depth	163 mm
Width	214.6 mm
Height	43.6 mm
Weight	1100 g
