Kramer VS-44H2 User Manual

Kramer Electronics Ltd.
VS-44H2 – Using Embedded Webpages
39
Performing Firmware Upgrade
VS-44H2 enables upgrading the firmware via the embedded webpages.
To perform firmware upgrade:
1. In the Navigation pane, click Settings. The General tab in the Settings page appears
(see Figure 34).
2. Select the Upgrade tab.

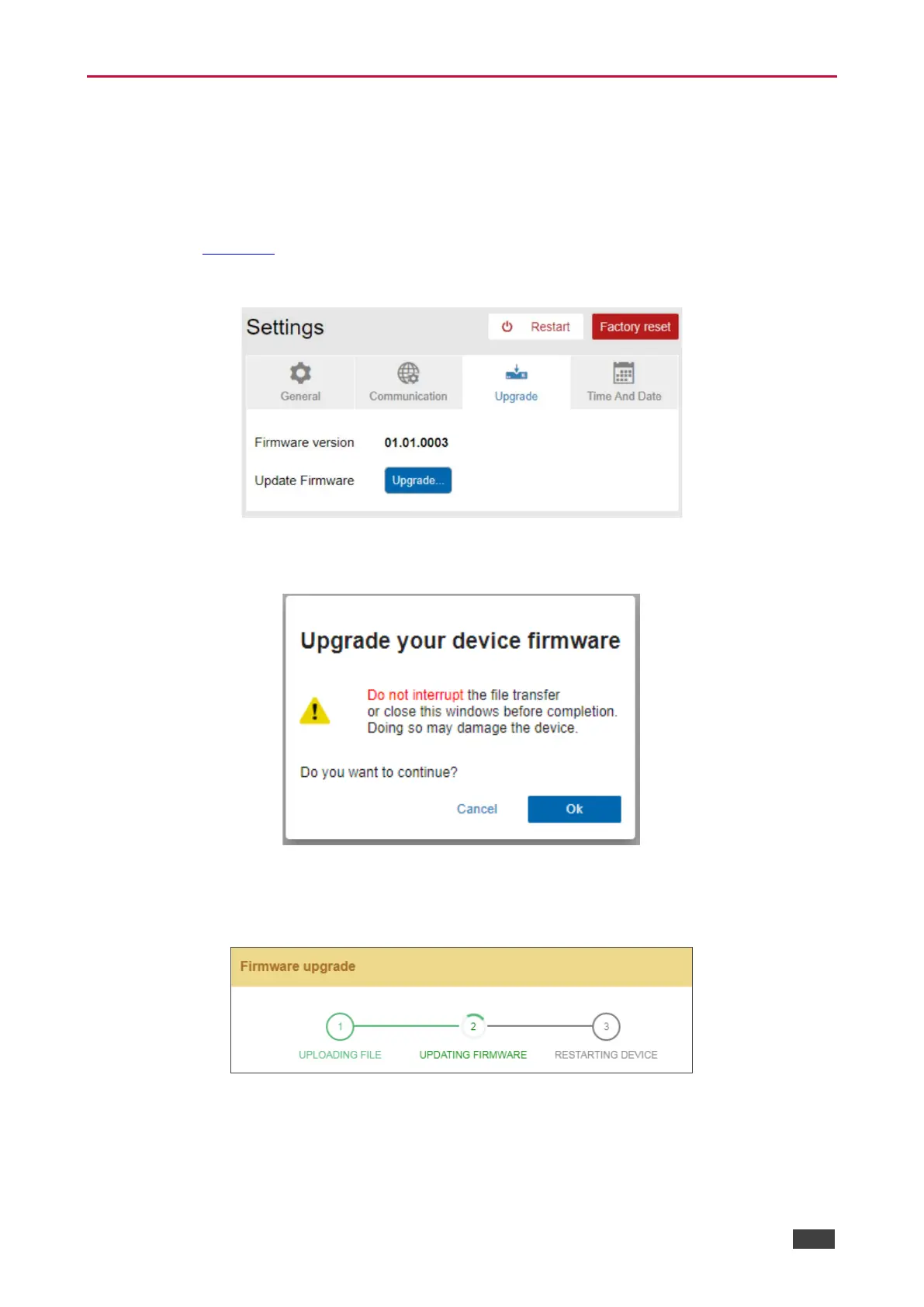

Figure 42: Upgrade Tab
3. Click Upgrade and select the new firmware file. The following message appears:
Figure 43: Upgrade Tab – Firmware Upgrade Message
4. Click OK.
Wait for completion of the upgrade process:
Figure 44: Upgrade Tab – Firmware Upgrade Process

Kramer VS-44H2 Specifications

General

Brand	Kramer
Model	VS-44H2
Category	Matrix Switcher
Language	English
