Kramer VS-44H2 User Manual

Kramer Electronics Ltd.
VS-44H2 – Defining VS-44H2 4K 4x4 Matrix Switcher
4
Defining VS-44H2 4K 4x4 Matrix
Switcher
This section defines VS-44H2.

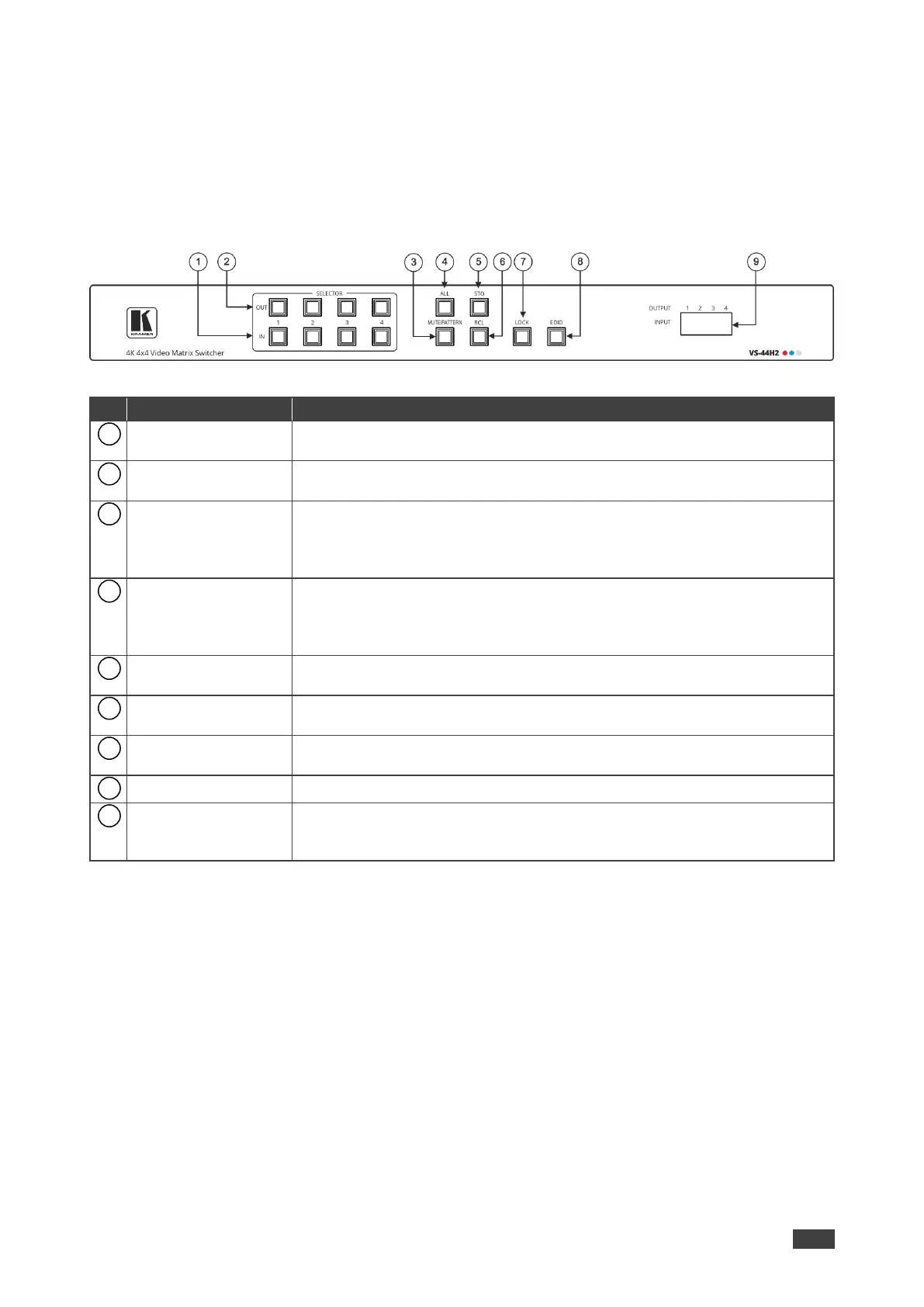

Figure 1: VS-44H2 4K 4x4 Matrix Switcher Front Panel
#
Feature
Function
IN Select Buttons
(1 to 4)
Press to select the input to switch after selecting an output (also used for
storing/recalling machine setups).
OUT Select Buttons
(1 to 4)
Press to select an output to switch to followed by an input (also used for
storing/recalling machine setups.
MUTE/PATTERN
Button
Press to view the current pattern status and select the output/s to which a
pattern is routed.
Press to mute audio and video on a selected output. Press the selected
output and then press MUTE.
ALL Button
Press followed by an input button to connect the selected input to all
outputs.
For example, press ALL and then Input button # 2 to connect input # 2 to all
the outputs.
STO Button
Press STO followed by an IN or OUT (1 to 4) button to store the current
switching configuration to the location corresponding to that INPUT number.
RCL Button
Press RCL followed by the corresponding IN or OUT (1 to 4) button to recall
the preset switching configuration saved in that location.
LOCK Button
Press and hold to toggle between locking and releasing the front panel
buttons.
EDID Button
Press to enter the EDID mode.
OUTPUT/INPUT 7-
segment LED
Display
Displays the input currently switched to the output which is marked above
each input.
1
2
3
4
5
6
7
8
9
