7.6 Generating a Test Pattern
For diagnostic purposes, the VS-62HA can generate a number of test patterns
on the outputs.
To generate a test pattern on the outputs:
1. Press the Pattern button.
The button lights.
2. Press any of the Input buttons to select a test pattern.
The selected test pattern is generated on the outputs.
To exit the test pattern generator:
 Press the lit Pattern button.
The test pattern generation ceases and the button no longer lights.

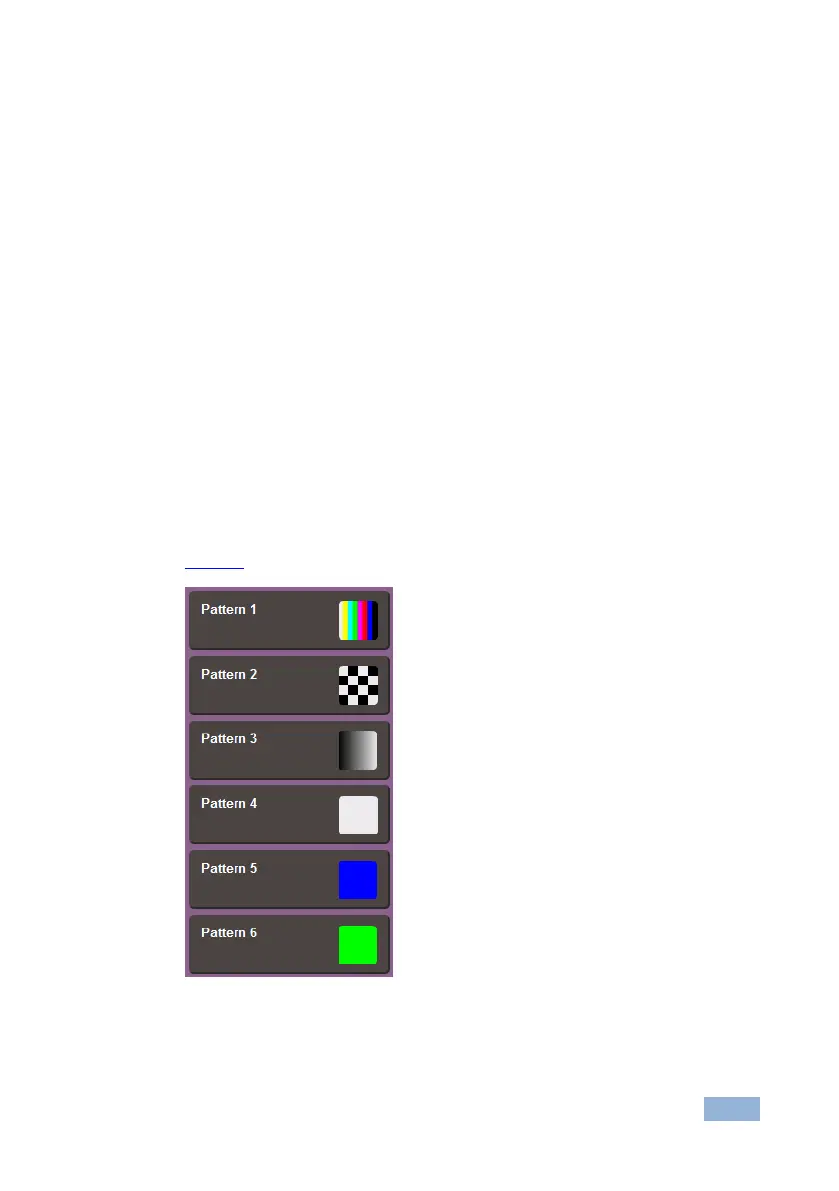

Figure 8 shows the test patterns available.
Figure 8: Test Patterns
