Kramer VS-62HA - Figure 1: VS-62 HA 6 X2 Hdmi;Audio Matrix Switcher Front Panel

VS-62HA - Overview
7

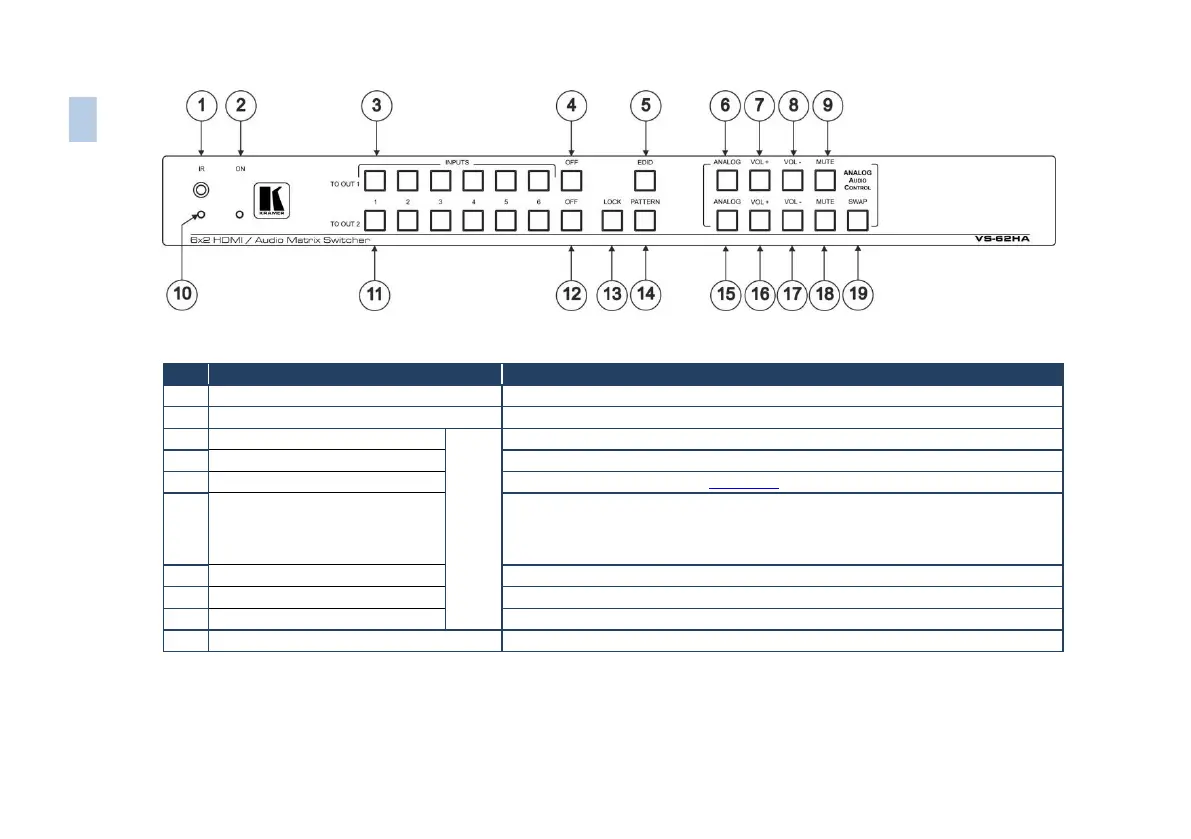

Figure 1: VS-62HA 6x2 HDMI/Audio Matrix Switcher Front Panel
#
Feature
Function
1
IR Sensor
Signal receiver for the infrared remote control transmitter
2
ON LED
Lights green when the device is powered on
3
INPUT Selector Buttons (1 to 6)
TO OUT 1
Press one of the six inputs to switch it to Output 1
4
OFF Button
Press to turn off HDMI output 1 video and audio
5
EDID Button
Press to capture the EDID (see Section 7.2)
6
ANALOG Button
Press to select/de-select the analog audio of output 1, colors are as follows:
green – analog audio follows HDMI video input
red – analog audio breakaway (Web control only)
off – outputs HDMI audio of the selected HDMI input
7
VOL+ Button
Press to increase output 1 volume
8
VOL- Button
Press to decrease output 1 volume
9
MUTE Button
Press to toggle muting of output 1 audio
10
IR LED
Lights yellow when receiving an IR signal
7
VS-62HA – Overview
