7.6 Display

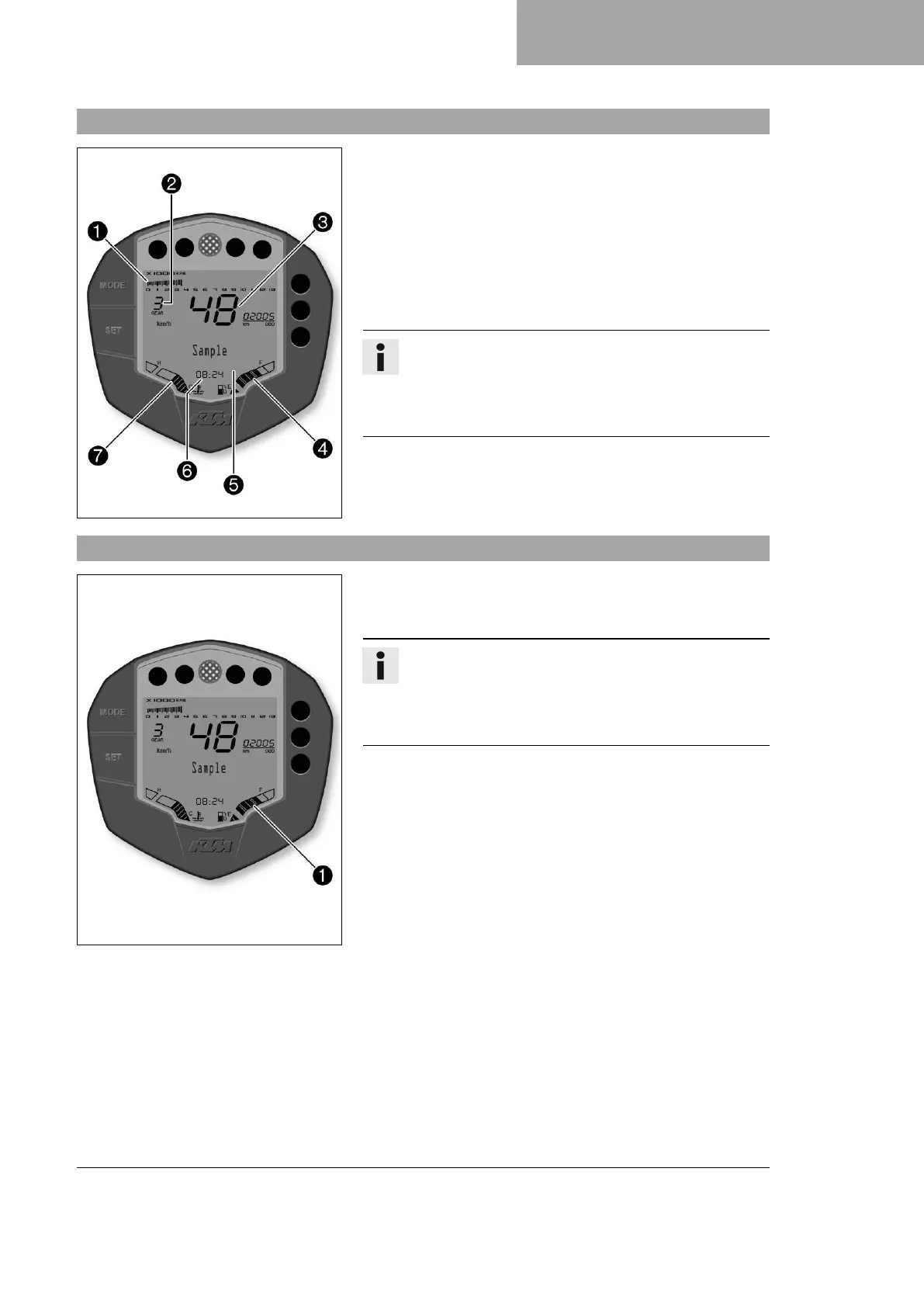

A00982-10
The tachometer
1
shows the engine speed in revolutions per
minute.
The gear display
2
shows the engaged gear.
Speed
3
is shown in kilometers per hour km/h or in miles per
hour mph.
The fuel level display is displayed in the
4
area.
The display
5
shows additional information.
The time appears in area
6
.
The coolant temperature display appears in area
7
.
Info
The time must be reset if the 12-V battery was discon-
nected from the vehicle or the fuse was removed.
The brightness of the displays is controlled by an ambient
light sensor in the combination instrument.
7.7 Fuel level display
A00983-10
The fuel tank capacity is shown in area
1
of the display.
The fuel level indicator consists of bars. The more bars are lit, the
more fuel is in the fuel tank.
Info
If the fuel level is getting low, the warning Low Fuel Level
will also appear on the display.
The fuel level is displayed with a slight delay to prevent the
indicator from constantly moving while riding.
