ELECTRICAL SYSTEM 15
79
K00793-10
–
Plug in connector
3
.
–
Mount protection cap
2
.
– Swivel the headlight mask upward.
G04938-10
–
Mount screw
1
.
Info
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
– Check that the lighting is functioning properly.
Finishing work
– Check the headlight setting. ( p. 79)

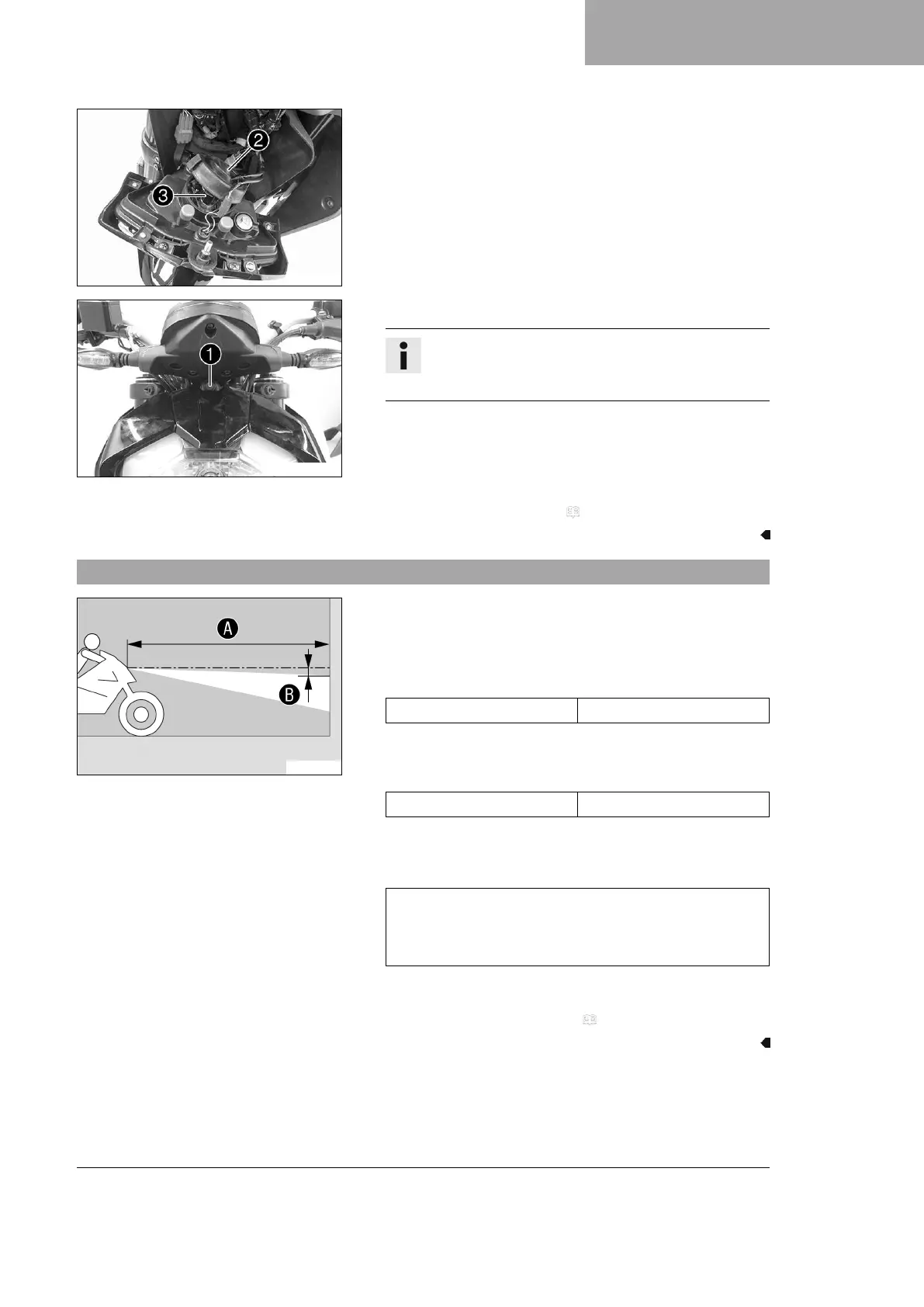

15.7 Checking the headlight setting
400726-10
– Park the vehicle on a horizontal surface in front of a light-
colored wall and make a mark at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
A
from the wall and switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 80)
