BRAKE SYSTEM 13
63
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Check the rear brake linings. ( p. 64)

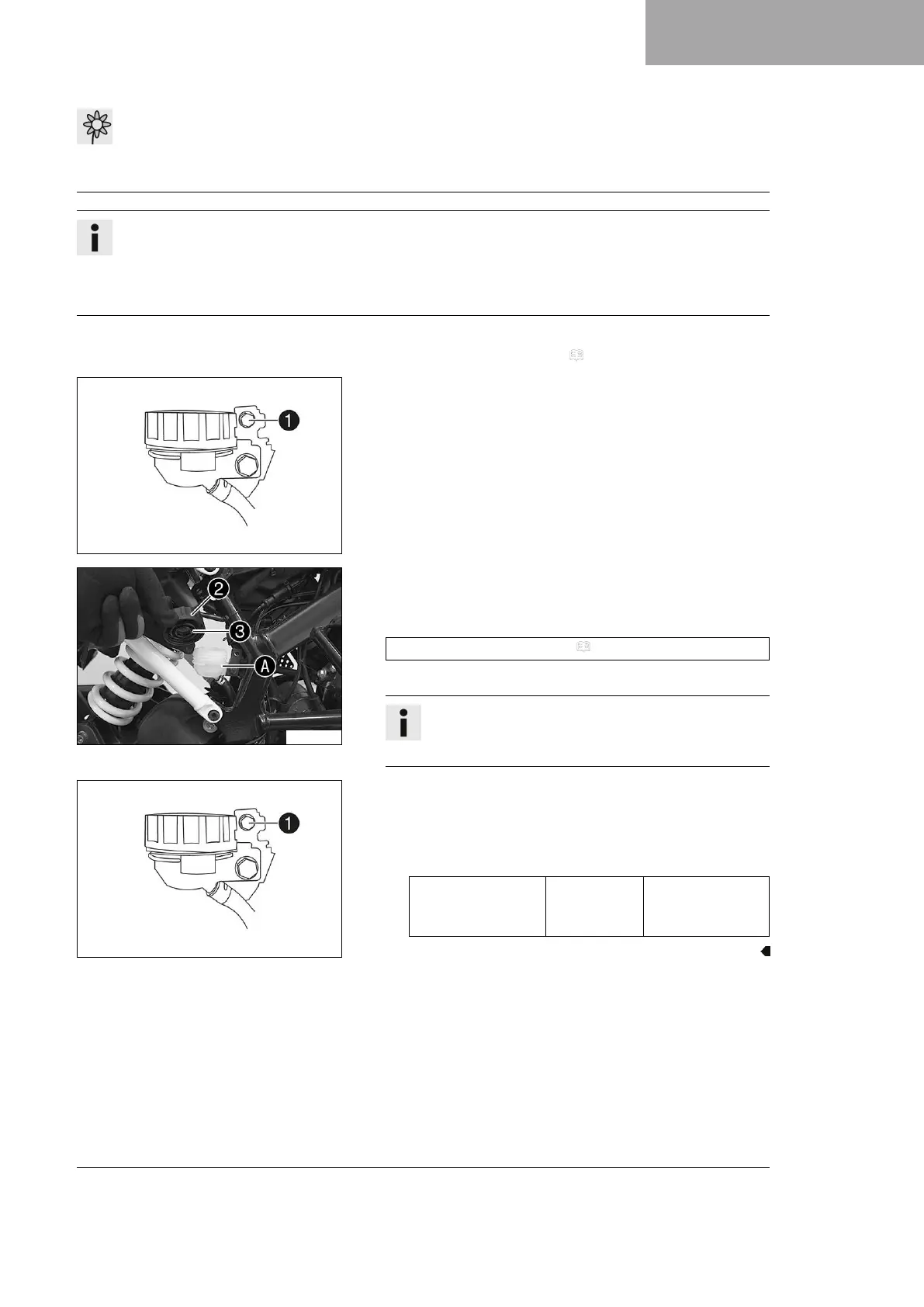

H01142-10
Condition
The screw cap is locked.
–
Remove screw
1
and take off the screw cap lock.
S04214-10
– Position the vehicle upright.
–
Remove screw cap
2
with membrane
3
.
–
Add brake fluid up to the marking
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 107)
– Mount the screw cover with the membrane.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
H01142-10
Condition
The screw cap is locked.
– Position the screw cap lock and mount and tighten
screw
1
.
Guideline
Screw, compensat-
ing tank cap lock,
rear brake
M5 9 Nm (6.6 lbf ft)
