18 SERVICE WORK ON THE ENGINE 162

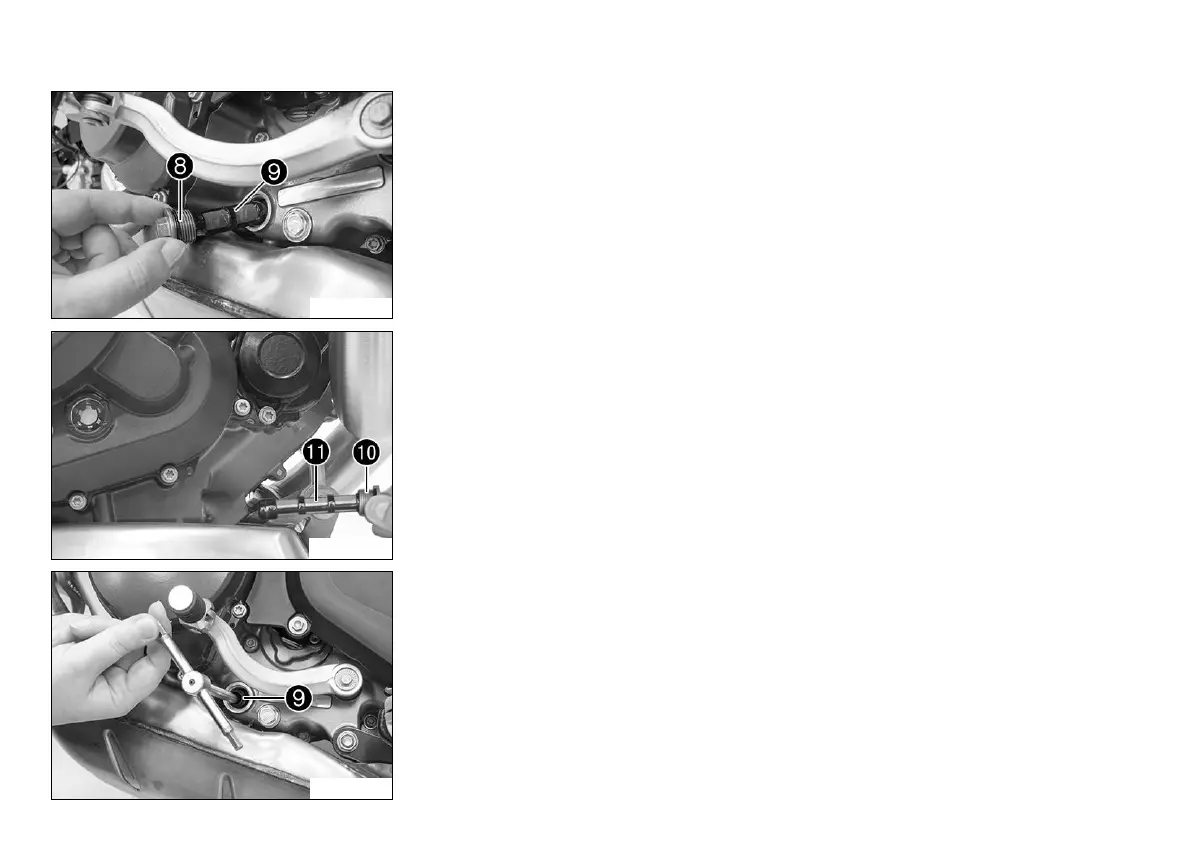

K00373-10
–
Remove screw plug
with oil screen
and the O-rings.
– Completely drain the remaining engine oil.
– Thoroughly clean the parts and sealing surface.
H00382-10
–
Remove screw plug
with oil screen
and the O-rings.
– Completely drain the remaining engine oil.
– Thoroughly clean the parts and sealing surface.
K00418-10
–
Position oil screen
with the O-rings on a pin wrench.
– Position the pin wrench through the drilled hole of the screw plug in the opposite sec-
tion of the engine case.
– Push the oil screen all the way into the engine case.
