15 ELECTRICAL SYSTEM 98
K00151-11
–

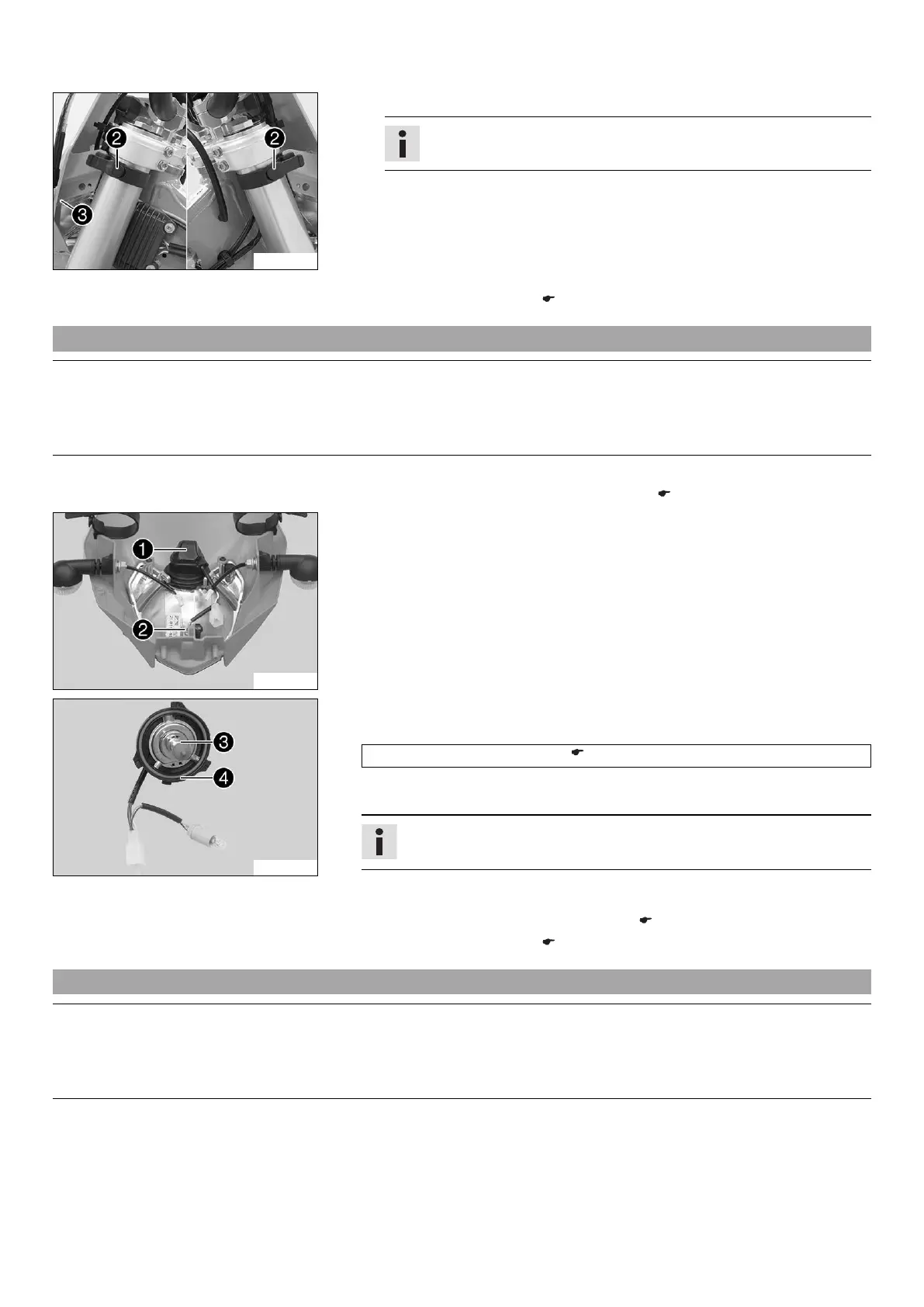

Position the headlight mask and fix it with rubber straps

.
Info
Ensure the holding lugs engage in the fender.
– Position the brake line and wiring harness. Put the clamp on and mount and
tighten screw

.
Finishing work
– Check the headlight setting. ( p. 99)
15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 96)
K00119-10
Main work
–
Turn protection cap

together with the underlying bulb socket counterclockwise
all the way and remove it.
–
Pull bulb socket

of the parking light out of the reflector.
K00120-10
–
Pull out headlight bulb

.
– Insert the new headlight bulb.
Headlight (HS1 / socket PX43t) ( p. 121)
– Insert the protection cap with the bulb socket into the reflector and turn it clock-
wise all the way.
Info
Ensure that O-ring

is seated properly.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Refit the headlight mask with the headlight. ( p. 97)
– Check the headlight setting. ( p. 99)
15.9 Changing the turn signal bulb (All EXC models)
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
