6 CONTROLS 15

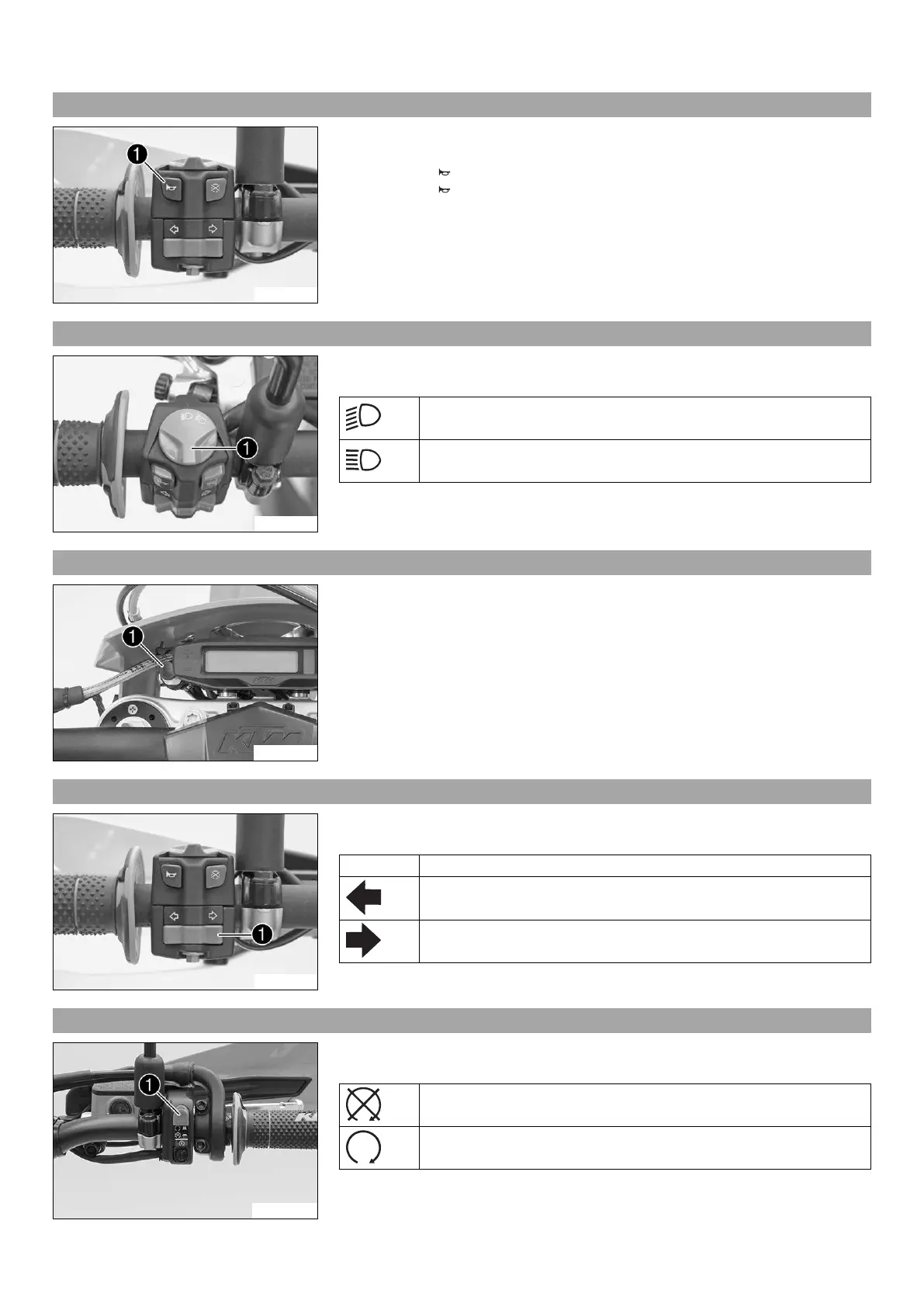

6.6 Horn button (All EXC models)
102044-11
The horn button
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
6.7 Light switch (All EXC models)
102045-10
The light switch
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – The light switch is turned counterclockwise. In this
position, the high beam and the tail light are switched on.
6.8 Light switch (XC‑W)
K00138-10
The light switch
is located to the left of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is
switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam
and tail light are switched on.
6.9 Turn signal switch (All EXC models)
102044-12
The turn signal switch
is fitted on the left side of the handlebar.
Possible states
Turn signal off – Turn signal switch is in the central position.
Turn signal, left, on – The turn signal switch is turned to the left.
Turn signal, right, on – The turn signal switch is turned to the right.
6.10 Emergency OFF switch (EXC AU)
M00136-10
The emergency OFF switch
is fitted on the right side of the handlebar.
Possible states
Ignition off – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
Ignition on – the ignition circuit is closed in this position and the
engine can be started.
