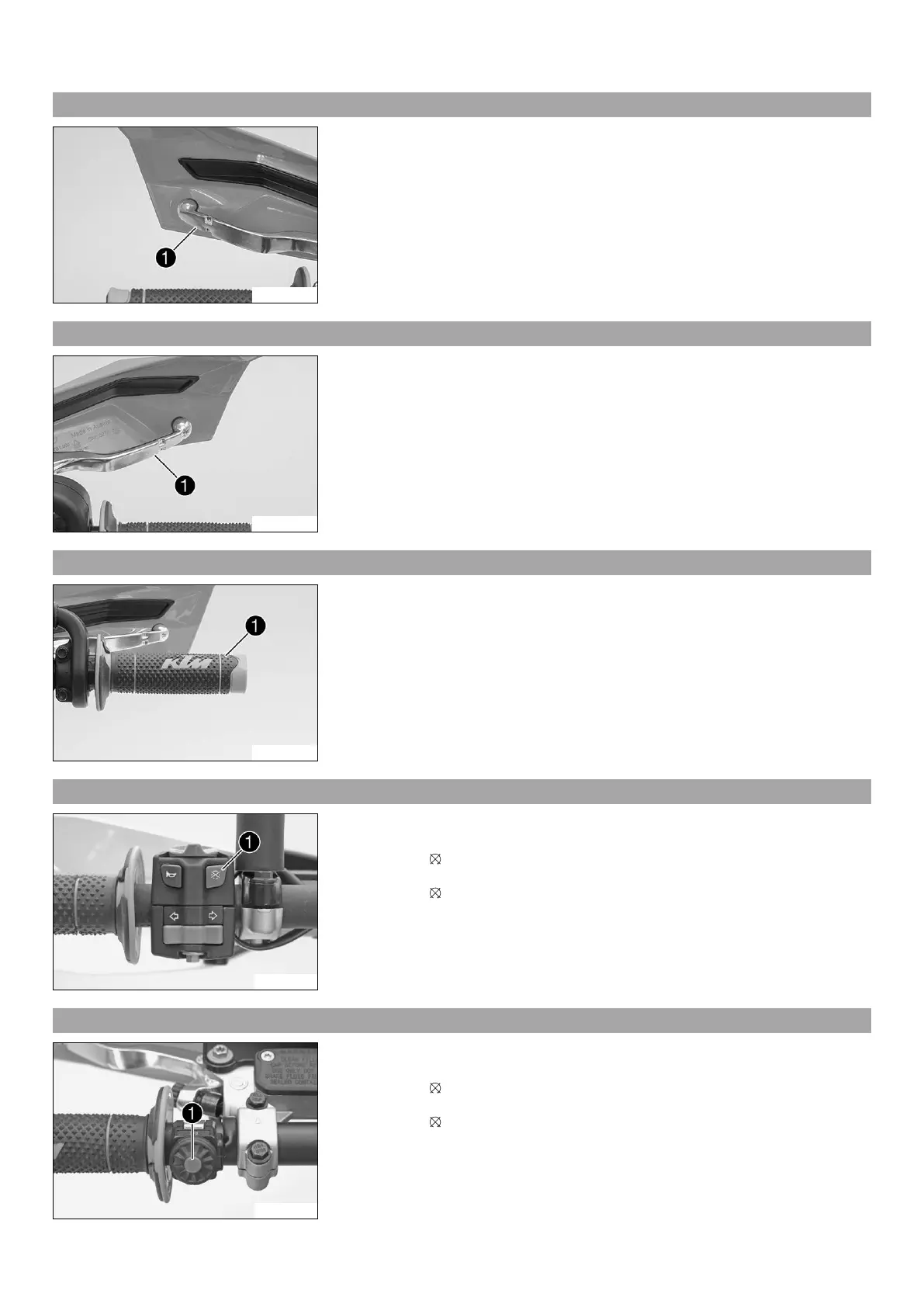

6 CONTROLS 14
6.1 Clutch lever
M00083-10
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
M00084-10
The hand brake lever
is fitted on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
M00085-10
The throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch (All EXC models)
102044-10
Kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and
the engine can be started.
• Kill switch is pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.5 Kill switch (XC‑W)
102046-10
Kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – the ignition circuit is closed in this position and
the engine can be started.
• Kill switch pressed – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
